DIP 开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6FR-9104SWITCH PIANO DIP SPST 0.025A 24V |
94 |
|
规格书 |
A6FR | Tube | Active | SPST | 9 | 25mA | 24VDC | Piano | Raised | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
EDS06SGNNTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
70 |
|
规格书 |
EDS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.150" (3.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
A6FR-0101SWITCH PIANO DIP SPST 0.025A 24V |
60 |
|
规格书 |
A6FR | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|

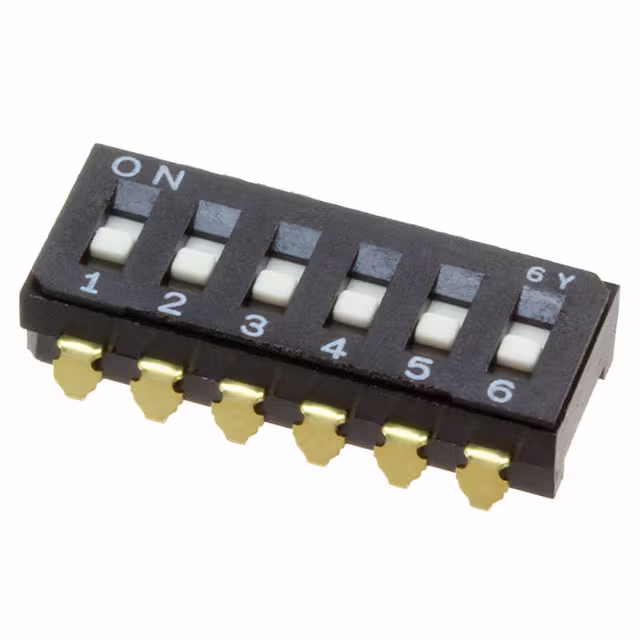

CFS-0602MASWITCH SLIDE DIP SPST 0.1A 6V |
42 |
|
规格书 |
CFS | Tube | Active | SPST | 6 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.178" (4.52mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
428527520909SW ROTARY DIP OCT COMP 0.15A 24V |
34 |
|
规格书 |
WS-ROTV | Tube | Active | Octal Complement | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
A6E-5104-NSWITCH SLIDE DIP SPST 0.025A 24V |
68 |
|
规格书 |
A6E-N | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6SN-2101SWITCH SLIDE DIP SPST 0.025A 24V |
67 |
|
规格书 |
A6SN | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|

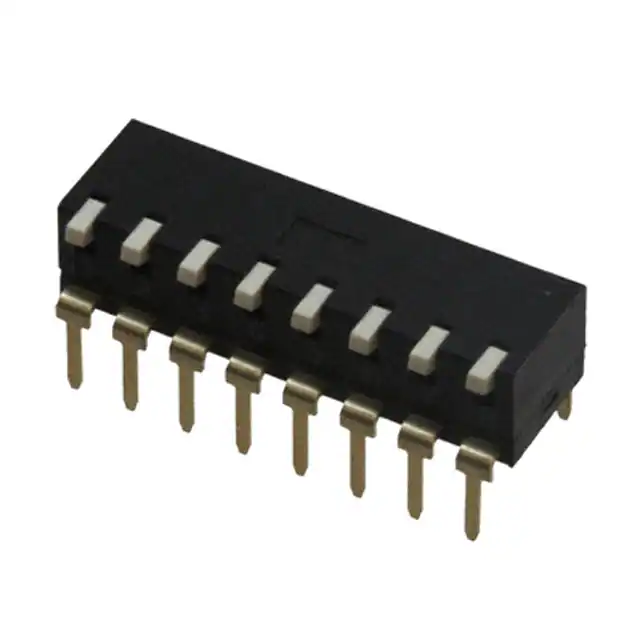

A6TR-8104SWITCH PIANO DIP SPST 0.025A 24V |
70 |
|
规格书 |
A6TR | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6E-4101-NSWITCH SLIDE DIP SPST 0.025A 24V |
43 |
|
规格书 |
A6E-N | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.230" (5.85mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
428527320911SW ROTARY DIP BCD COMP 0.15A 24V |
44 |
|
规格书 |
WS-ROTV | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
A6S-6104-HSWITCH SLIDE DIP SPST 0.025A 24V |
86 |
|
规格书 |
A6S-H | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
RD10RA16RVATSWITCH ROTARY DIP HEX 0.15A 50V |
79 |
|
规格书 |
RD10 | Tube | Active | Hexadecimal | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

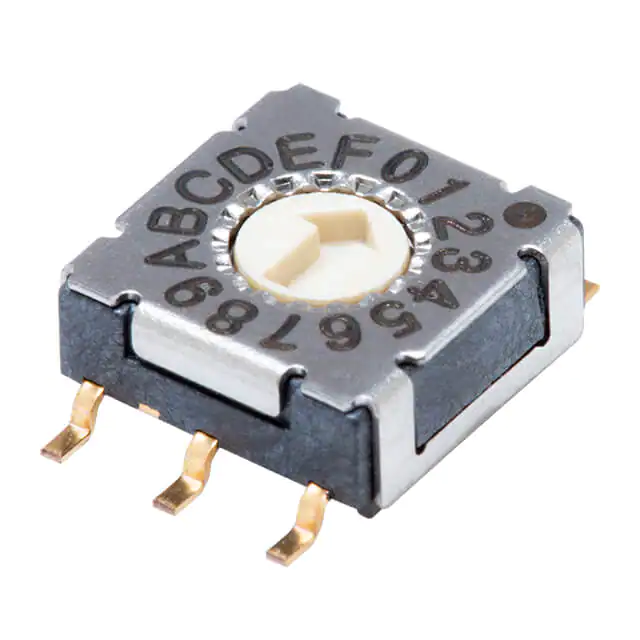

RDS-16S-7229-A-SMTSWITCH ROTARY DIP HEX 0.1A 50V |
69 |
|
规格书 |
RDS-7229-SMT | Tube | Active | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.118" (3.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428527420917SW ROTARY DIP HEX COMP 0.15A 24V |
57 |
|
规格书 |
WS-ROTV | Tube | Active | Hexadecimal Complement | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
418217270906ASWITCH SLIDE DIP SPST 0.025A 24V |
48 |
|
规格书 |
WS-DITU | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6SN-6101SWITCH SLIDE DIP SPST 0.025A 24V |
32 |
|
规格书 |
A6SN | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | - | 0.175" (4.45mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6E-6104-NSWITCH SLIDE DIP SPST 0.025A 24V |
30 |
|
规格书 |
A6E-N | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6SR-8101SWITCH PIANO DIP SPST 0.025A 24V |
61 |
|
规格书 |
A6SR | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
428527420911SW ROTARY DIP BCD COMP 0.15A 24V |
54 |
|
规格书 |
WS-ROTV | Tube | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428527320908SW ROTARY DIP OCTAL 0.15A 24V |
48 |
|
规格书 |
WS-ROTV | Tube | Active | Octal | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
