上传BOM
汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A31CCQ24VDC1DRELAY AUTOMOTIVE SPDT 60A 24V |
0 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
ACTP512RELAY AUTOMOTIVE SPDTX2 30A 12V |
0 |
|
规格书 |
ACTP | Tube | Active | Non Latching | 83.3 mA | 12VDC | SPDT (1 Form C) x 2 | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2S1CSQ48VDC1.6RELAY AUTOMOTIVE SPDT 40A 48V |
0 |
|
规格书 |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
CM1F-12VRELAY AUTOMOTIVE SPDT 35A 12V |
10 |
|
规格书 |
CM | Bulk | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 35 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Socketable | Plug In | -40°C ~ 85°C |
|

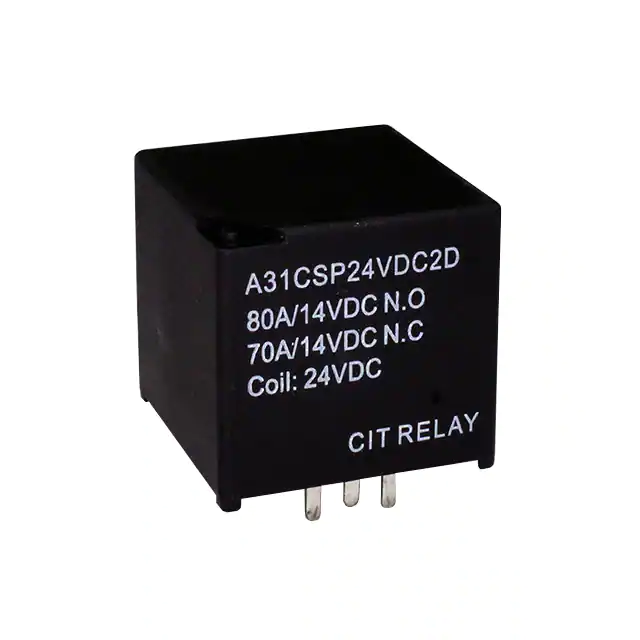

A31CSP24VDC2DRELAY AUTOMOTIVE SPDT 80A 24V |
2 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A11ASP24VDC1.2DRELAY AUTOMOTIVE SPST 30A 24V |
0 |
|
规格书 |
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

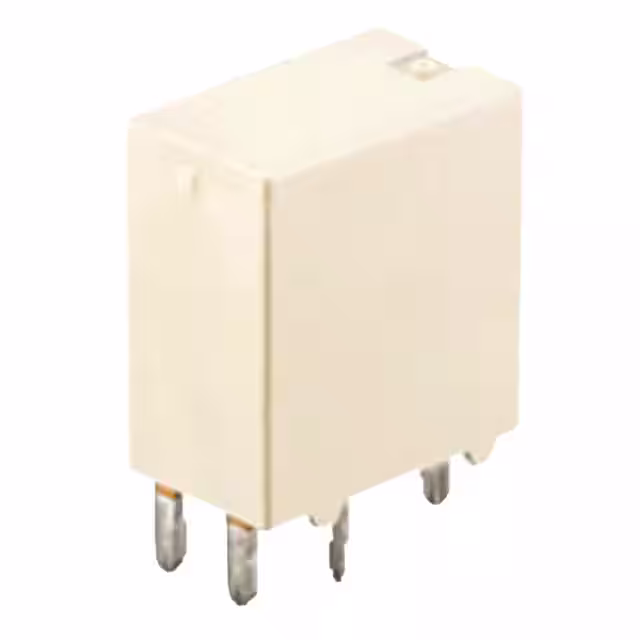

ACJ1212PRELAY AUTOMOTIVE SPDT 20A 12V |
0 |
|
规格书 |
ACJ | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 85°C |
|
A11ASP12VDC1.2DRELAY AUTOMOTIVE SPST 30A 12V |
10 |
|
规格书 |
A1 | Tube | Active | Non Latching | 100 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A11ASP24VDC1.5RRELAY AUTOMOTIVE SPST 30A 24V |
25 |
|
规格书 |
A1 | Tube | Active | Non Latching | 62.5 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2F1ASQ24VDC1.6RRELAY AUTOMOTIVE SPST 40A 24V |
24 |
|
规格书 |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2H1CSP12VDC1.6RRELAY AUTOMOTIVE SPDT 50A 12V |
11 |
|
规格书 |
A2H | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor | Through Hole | PC Pin | -40°C ~ 125°C |
|
A21CSQ48VDC1.6DRELAY AUTOMOTIVE SPDT 40A 48V |
0 |
|
规格书 |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
AZ9731-1A-12DC4R1RELAY AUTOMOTIVE SPST 40A 12V |
18 |
|
规格书 |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Resistor, MINI-ISO, Shrouded w/ Steel Bracket Sealed - Epoxy | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2M1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 40A 24V |
9 |
|
规格书 |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2HF1CSQ24VDC1.6RELAY AUTOMOTIVE SPDT 50A 24V |
0 |
|
规格书 |
A2H | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

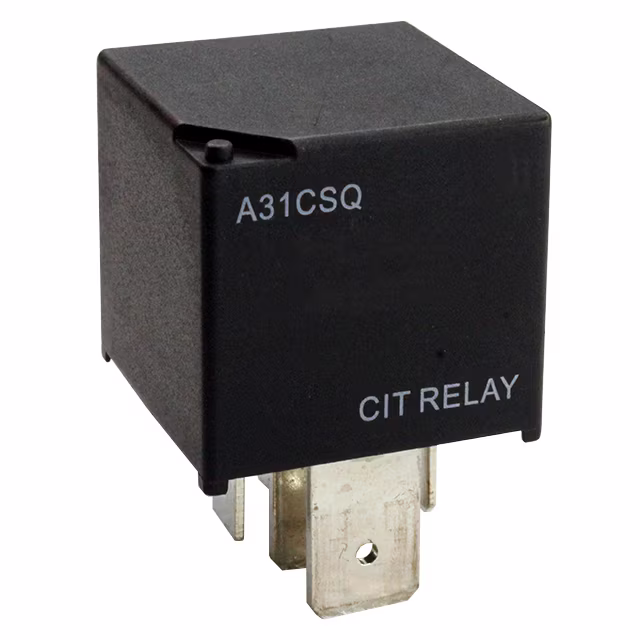

A31CSQ24VDC2RELAY AUTOMOTIVE SPDT 80A 24V |
8 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2S1ASQ48VDC1.6DRELAY AUTOMOTIVE SPST 40A 48V |
21 |
|
规格书 |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A61CS12VDC.9RELAY AUTOMOTIVE SPDT 30A 12V |
0 |
|
规格书 |
A6 | Tray | Active | Non Latching | 75 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
|
A31CCQ24VDC1RELAY AUTOMOTIVE SPDT 60A 24V |
0 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 60 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | - | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
CB1-T-R-M-12VCB RELAY WITH ISO TERMINAL |
25 |
|
规格书 |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
