汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RA-700112-RNRELAY GEN PURPOSE SPST 70A 12V |
74 |
|
规格书 |
- | Bulk | Active | Non Latching | - | 12VDC | SPST-NO (1 Form A) | 70 A | 12VDC - Nom | 7.8 VDC | 1.2 VDC | - | - | Resistor | Chassis Mount | Plug In | -40°C ~ 85°C |
|

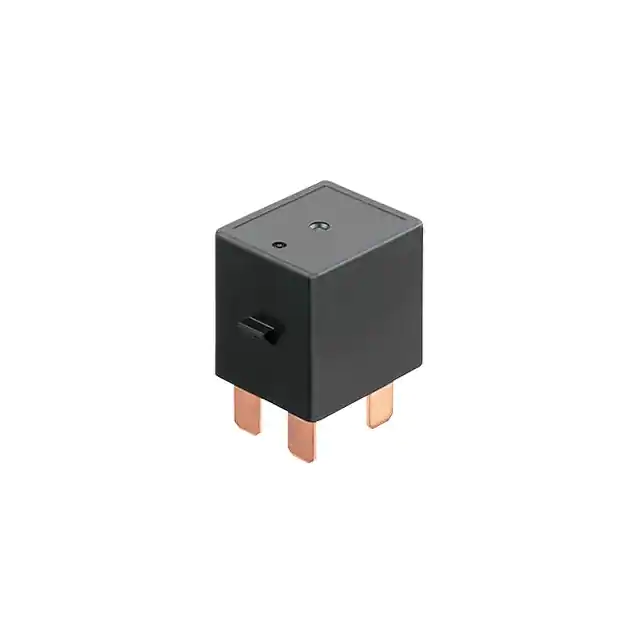

AECN11012RELAY AUTOMOTIVE SPST 5A 12V |
100 |
|
规格书 |
EC-N | Tray | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 15 A | 400VDC - Nom | 6.8 VDC | 0.5 VDC | 50 ms | 30 ms | Sealed - Fully | Socketable | Plug In | -40°C ~ 85°C |
|

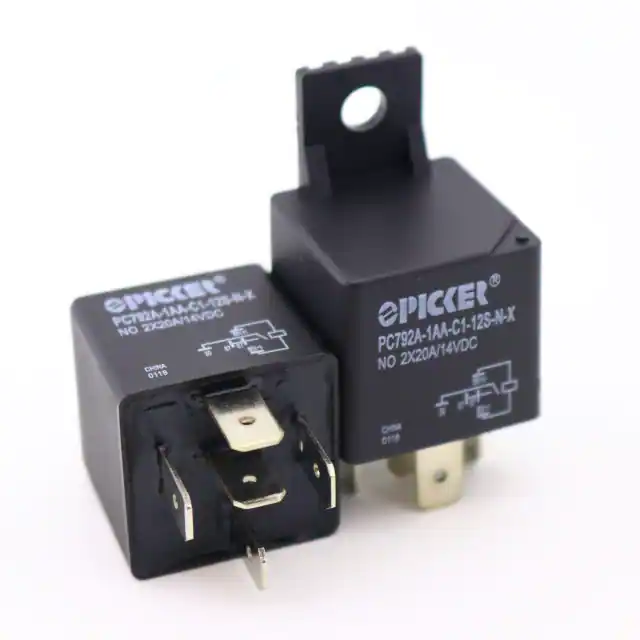

PC792A-1AA-C1-12S-N-XRELAY AUTOMOTIVE SPST 40A 12V |
98 |
|
规格书 |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Chassis Mount | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A2K1ASQ48VDC1.6RRELAY AUTOMOTIVE SPST 60A 48VDC |
70 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2KM1ASQ48VDC1.6DRELAY AUTOMOTIVE SPST 60A 48VDC |
33 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2K1CSP48VDC1.6RELAY AUTOMOTIVE SPDT 60A 48VDC |
80 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A2K1CSP48VDC1.6RRELAY AUTOMOTIVE SPDT 60A 48VDC |
80 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
CA1AS-12V-N-5CA AUTOMOTIVE RELAY |
27 |
|
规格书 |
CA | Tray | Active | Non Latching | 120 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In | -30°C ~ 80°C |
|
|
A2K1ASQ48VDC1.6RELAY AUTOMOTIVE SPST 60A 48VDC |
70 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2K1ASQ48VDC1.6DRELAY AUTOMOTIVE SPST 60A 48VDC |
80 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2KM1ASQ48VDC1.6RELAY AUTOMOTIVE SPST 60A 48VDC |
80 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2KM1ASQ48VDC1.6RRELAY AUTOMOTIVE SPST 60A 48VDC |
80 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2K1CSQ48VDC1.6RELAY AUTOMOTIVE SPDT 60A 48VDC |
80 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2K1CSQ48VDC1.6RRELAY AUTOMOTIVE SPDT 60A 48VDC |
80 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2K1CSP48VDC1.6DRELAY AUTOMOTIVE SPDT 60A 48VDC |
79 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | PC Pin | -40°C ~ 125°C |
|
|
A2K1CSQ48VDC1.6DRELAY AUTOMOTIVE SPDT 120A 48V |
45 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
A2KM1CSQ48VDC1.6RELAY AUTOMOTIVE SPDT 60A 48VDC |
70 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A2KM1CSQ48VDC1.6DRELAY AUTOMOTIVE SPDT 60A 48VDC |
80 |
|
规格书 |
A2K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 60 A | 110VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Diode, Sealed - Fully, Magnetic Blowout | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3K1CSQ48VDC1.6RELAY AUTOMOTIVE SPDT 80A 48VDC |
80 |
|
规格书 |
A3K | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 33.6 VDC | 4.8 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
CB1AHF-T-P-12VCB AUTOMOTIVE RELAY |
85 |
|
规格书 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 70 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Flux Protection | Through Hole | PC Pin | -40°C ~ 125°C |
