汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A2F1CSQ48VDC1.6RELAY AUTOMOTIVE SPDT 40A 48V |
0 |
|
规格书 |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2HF1CSQ12VDC1.6DRELAY AUTOMOTIVE SPDT 50A 12V |
0 |
|
规格书 |
A2H | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 10 ms | 10 ms | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
AZ9731-1C-12DC1R1RELAY AUTOMOTIVE SPDT 30A 12V |
14 |
|
规格书 |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO w/ Steel Mounting Bracket, Resistor | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792C-1C-C-12C-N-XRELAY AUTOMOTIVE SPDT 50A 12V |
0 |
|
规格书 |
- | Bag | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2S1CSQ48VDC1.6RRELAY AUTOMOTIVE SPDT 40A 48V |
0 |
|
规格书 |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

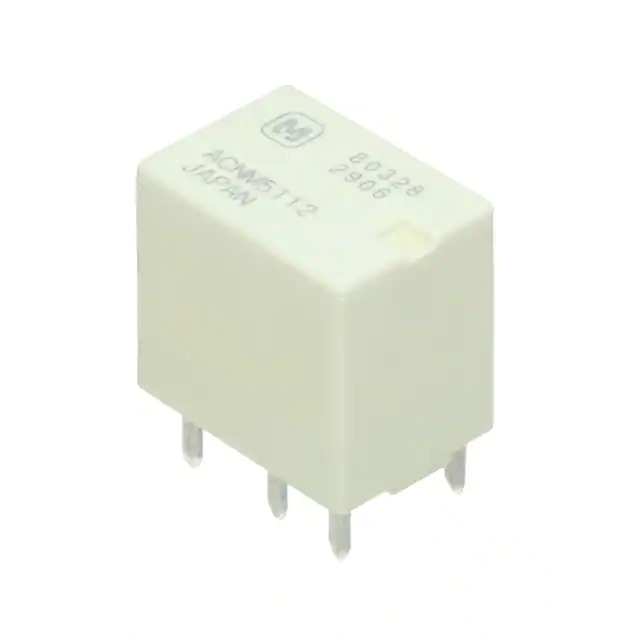

ACNM5112CNM RELAY (TH,1C) |
0 |
|
规格书 |
ACNM | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 110°C |
|
CA1A-12V-N-5RELAY AUTOMOTIVE SPST 30A 12V |
12 |
|
规格书 |
CA | Bulk | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | - | Chassis Mount | Plug In | -30°C ~ 80°C |
|
A2K1ASQ24VDC1.6RELAY AUTOMOTIVE SPST 120A 24V |
0 |
|
规格书 |
A2K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPST-NO (1 Form A) | 60 A | 110VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
1-1414167-0POWER F V23134 |
0 |
|
规格书 |
- | Bulk | Active | Non Latching | - | 24VDC | SPDT (1 Form C) | 20 A | - | 16 VDC | 4 VDC | 7 ms | 2 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
PC775-1A-24C-XRELAY AUTOMOTIVE SPST 75A 24V |
0 |
|
规格书 |
PC775 | Tray | Active | Non Latching | 120 mA | 24VDC | SPST-NO (1 Form A) | 75 A | 32VDC - Max | 15.6 VDC | 4.8 VDC | 7 ms | 5 ms | IP54 - Dust Protected, Water Resistant | Chassis Mount | Screw Terminal | -40°C ~ 125°C |
|

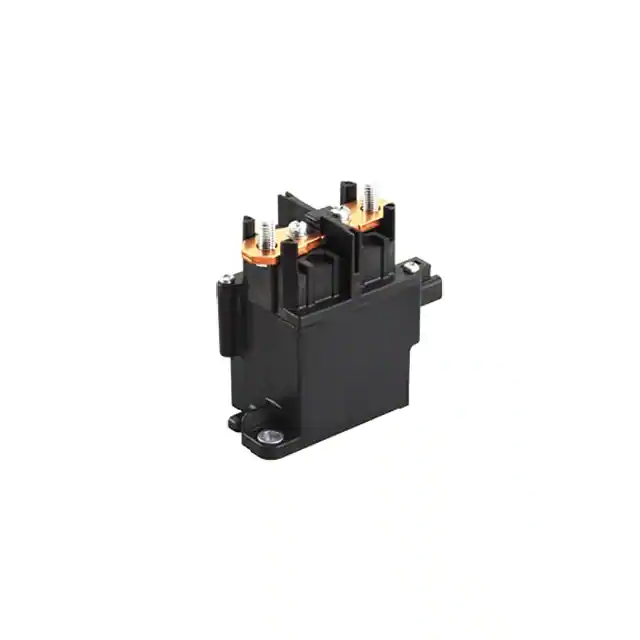

AEV14024RELAY AUTOMOTIVE SPST 120A 24V |
1 |
|
规格书 |
EV | Box | Active | Non Latching | 176 mA | 24VDC | SPST-NO (1 Form A) | 120 A | 450VDC - Nom | 18 VDC | 2 VDC | 50 ms | 30 ms | - | Chassis Mount | Screw Terminal | -40°C ~ 80°C |
|

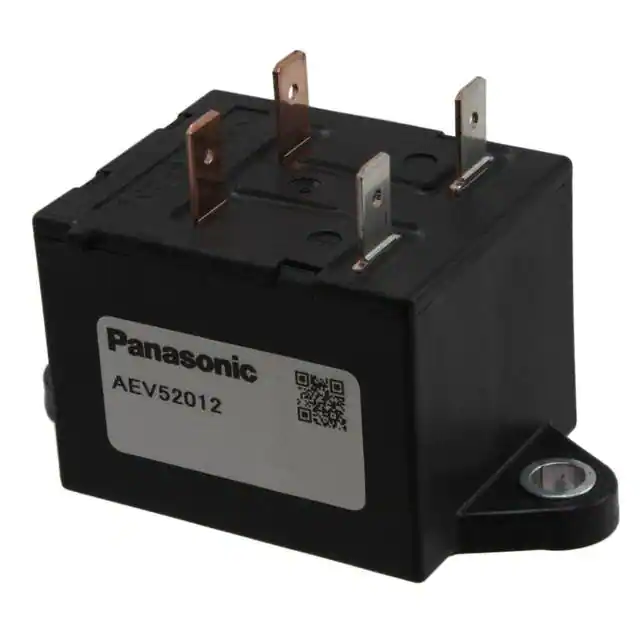

AEV52012RELAY AUTOMOTIVE SPST 20A 12V |
0 |
|
规格书 |
AEV | Bulk | Active | Non Latching | 327 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 400VDC - Nom | 9 VDC | 0.5 VDC | 50 ms | 30 ms | - | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 80°C |
|
A2HM1CSQ24VDC1.6RRELAY AUTOMOTIVE SPDT 50A 24V |
3 |
|
规格书 |
A2H | Tray | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 50 A | 75VDC - Max | 15.6 VDC | 2.4 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21ASP12VDC1.6RRELAY AUTOMOTIVE SPST 40A 12V |
5 |
|
规格书 |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A21ASP12VDC1.6DRELAY AUTOMOTIVE SPST 40A 12V |
0 |
|
规格书 |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
A11CSP24VDC1.2RRELAY AUTOMOTIVE SPDT 30A 24V |
25 |
|
规格书 |
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A21CSP12VDC1.6RRELAY AUTOMOTIVE SPDT 40A 12V |
0 |
|
规格书 |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ9731-1A-12DC4RELAY AUTOMOTIVE SPST 40A 12V |
0 |
|
规格书 |
AZ9731 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO, Shrouded w/ Steel Bracket | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A21CSQ48VDC1.6RELAY AUTOMOTIVE SPDT 40A 48V |
0 |
|
规格书 |
A2 | Tray | Active | Non Latching | 33.3 mA | 48VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 33.6 VDC | 4.8 VDC | 7 ms | 5 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

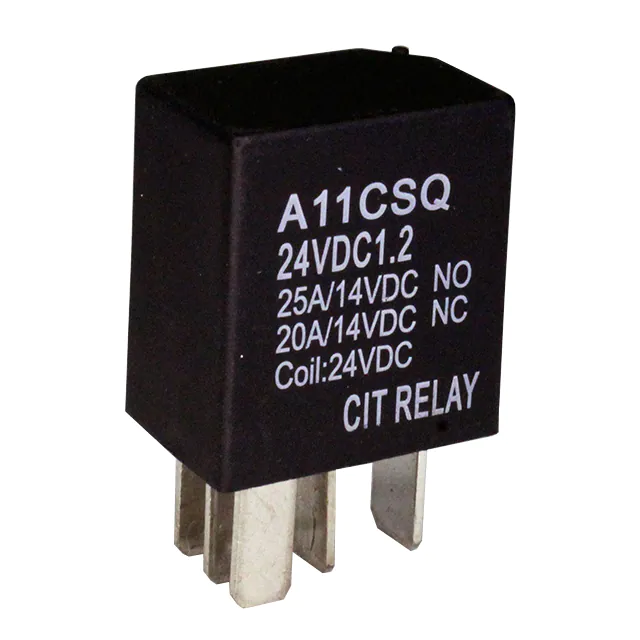

A11CSQ24VDC1.2RRELAY AUTOMOTIVE SPDT 30A 24V |
0 |
|
规格书 |
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
