铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

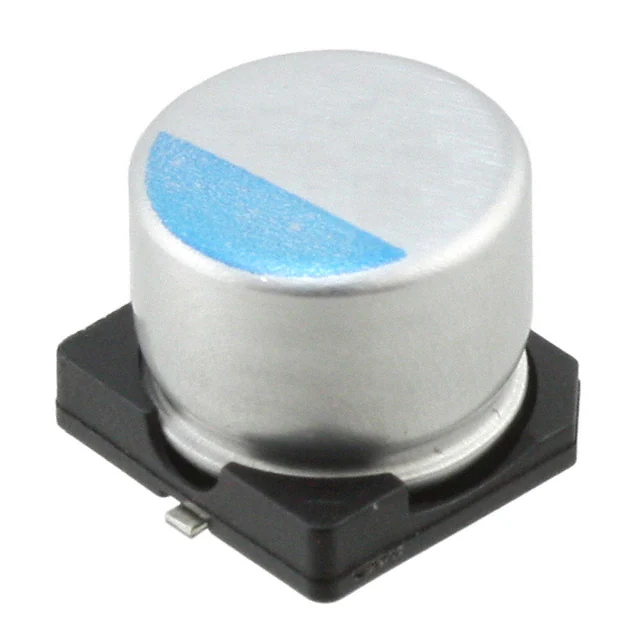

APXE100ARA221MH70GCAP ALUM POLY 220UF 20% 10V SMD Chemi-Con |
21,260 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 10 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

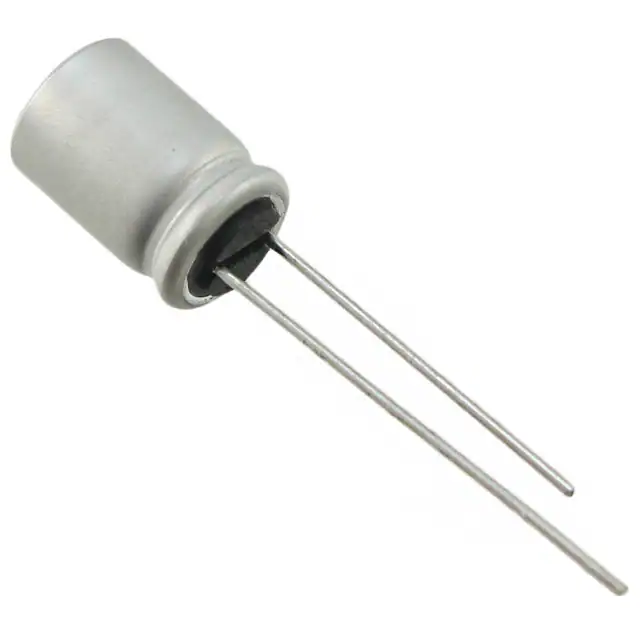

APS-160ELL331MJC5SCAP ALUM POLY 330UF 20% 16V TH Chemi-Con |
503 |
|
规格书 |
NPCAP™-PS | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.05 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole |
|

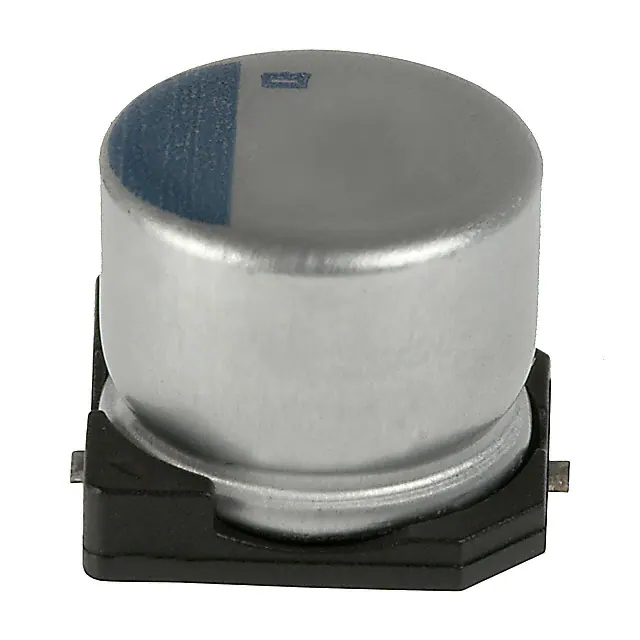

APXH100ARA121MH70GCAP ALUM POLY 120UF 20% 10V SMD Chemi-Con |
1,715 |
|
规格书 |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 35mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
APXE160ARA121MH70GCAP ALUM POLY 120UF 20% 16V SMD Chemi-Con |
2,871 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.01 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APSG160ELL152MJ16SCAP ALUM POLY 1500UF 20% 16V TH Chemi-Con |
1,719 |
|
规格书 |
NPCAP™-PSG | Bulk | Active | Polymer | 1500 µF | ±20% | 16 V | 8mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole |
|

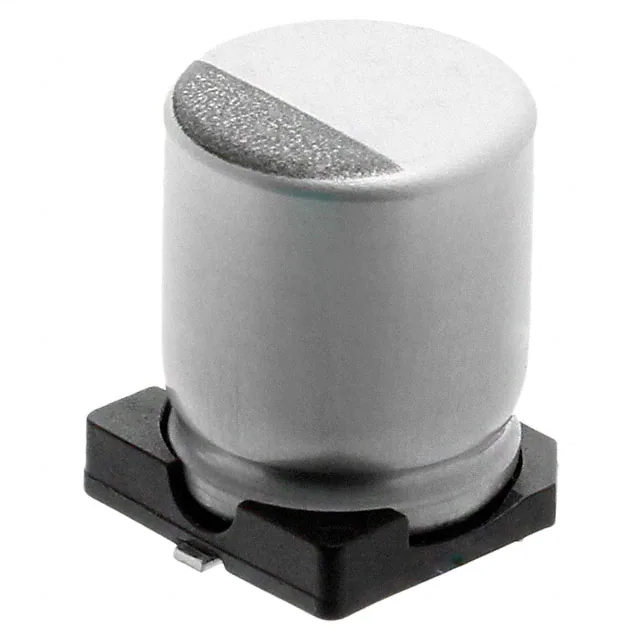

HHXB350ARA151MHA0GCAP ALUMHYB 150UF 20% 35V SMD Chemi-Con |
2,845 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
HHXJ630ARA101MJA0GCAP ALUMHYB 100UF 20% 63V SMD Chemi-Con |
587 |
|
规格书 |
HXJ | Bulk | Active | Hybrid | 100 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

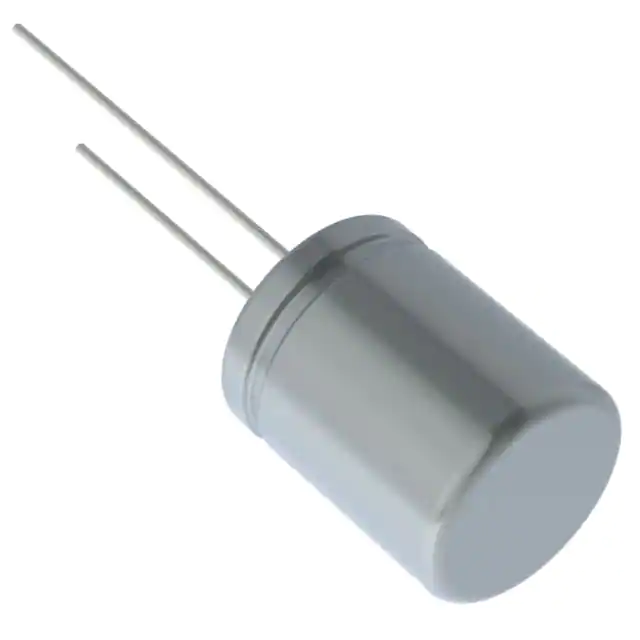

HHSE630ELL101MJC5SCAP ALUM HYBRID 100UF 20% 63V TH Chemi-Con |
5,152 |
|
规格书 |
HSE | Bulk | Active | Hybrid | 100 µF | ±20% | 63 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 340 mA @ 120 Hz | 3.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|

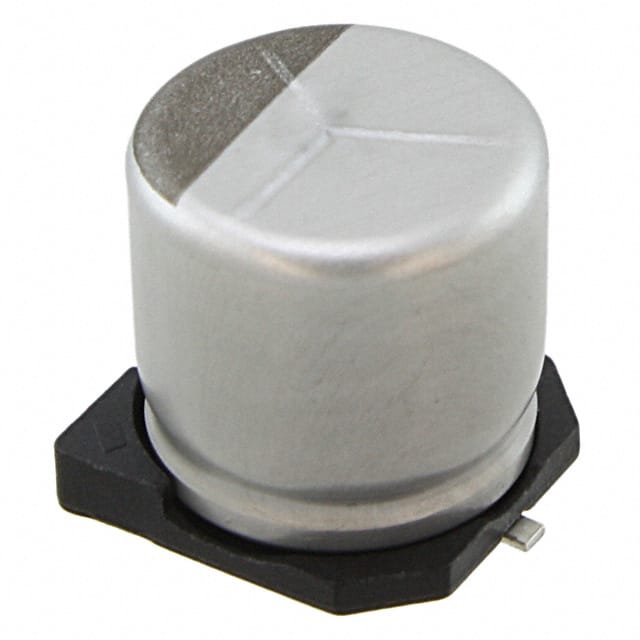

HHXA800ARA390MJA0GCAP ALUM HYBRID 39UF 20% 80V SMD Chemi-Con |
1,241 |
|
规格书 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 39 µF | ±20% | 80 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

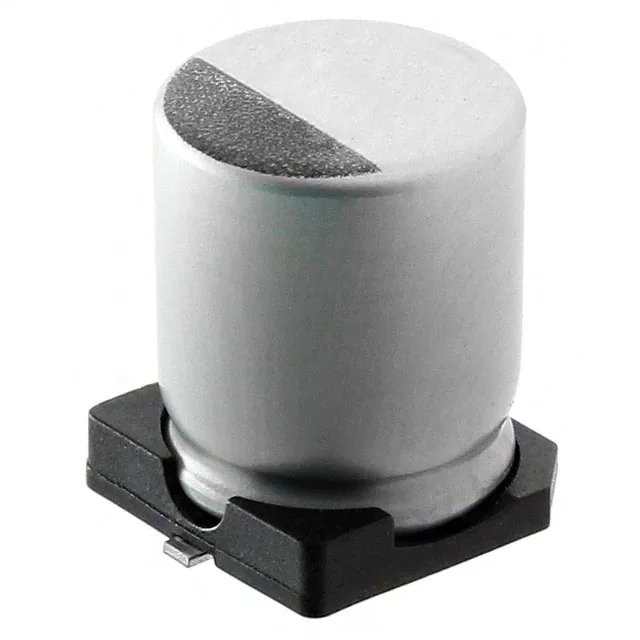

HHXA500ARA680MHA0GCAP ALUM HYBRID 68UF 20% 50V SMD Chemi-Con |
1,530 |
|
规格书 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
