铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

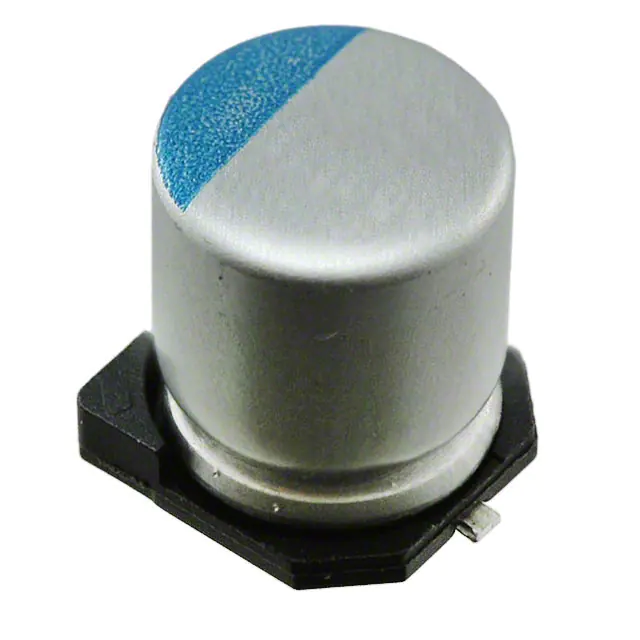

APXE100ARA151MF80GCAP ALUM POLY 150UF 20% 10V SMD Chemi-Con |
537 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.88 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.303" (7.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HHXJ350ARA331MJA0GCAP ALUMHYB 330UF 20% 35V SMD Chemi-Con |
413 |
|
规格书 |
HXJ | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

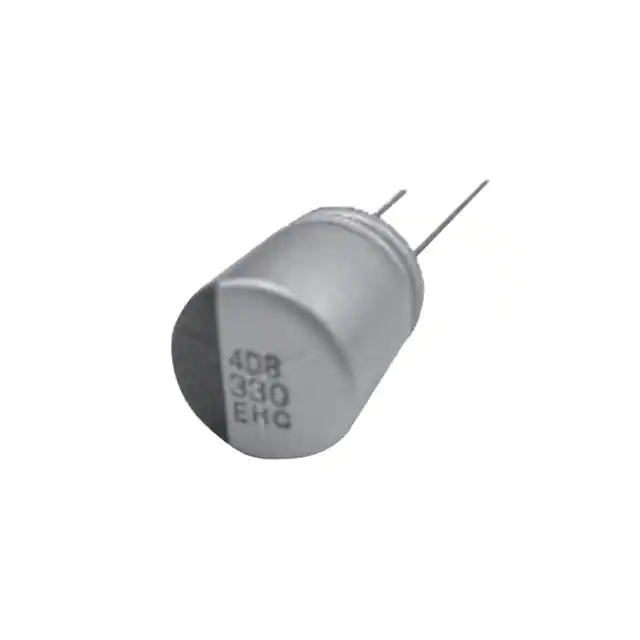

HHSC630ELL101MJC5SCAP ALUM HYBRID 100UF 20% 63V TH Chemi-Con |
2,244 |
|
规格书 |
HSC | Bulk | Active | Hybrid | 100 µF | ±20% | 63 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
|
HHXF630ARA101MJC5GCAP ALUMHYB 100UF 20% 63V SMD Chemi-Con |
1,270 |
|
规格书 |
HXF | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 63 V | 17mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 460 mA @ 120 Hz | 4.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

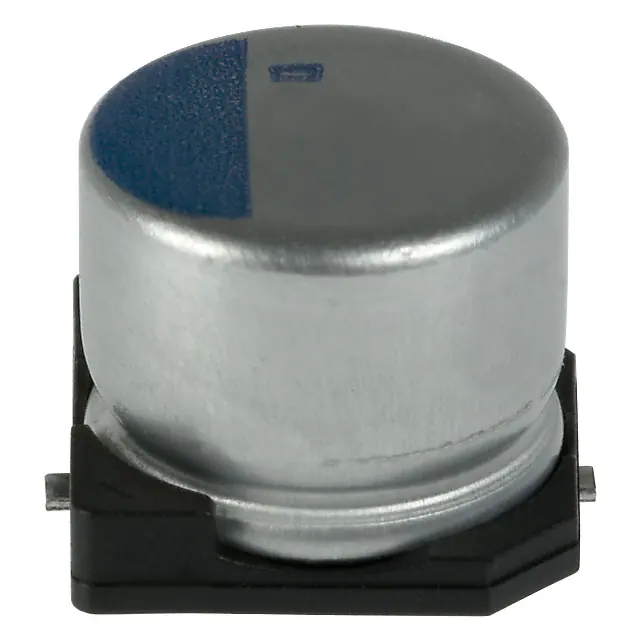

APXA200ARA470MH70GCAP ALUM POLY 47UF 20% 20V SMD Chemi-Con |
696 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 20 V | 45mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
APXA100ARA151MH70GCAP ALUM POLY 150UF 20% 10V SMD Chemi-Con |
1,234 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 27mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
HHXA500ARA470MHA0GCAP ALUM HYBRID 47UF 20% 50V SMD Chemi-Con |
1,443 |
|
规格书 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 47 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
APXA6R3ARA221MH70GCAP ALUM POLY 220UF 20% 6.3V SMD Chemi-Con |
491 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 25mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.02 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXE4R0ARA151ME61GCAP ALUM POLY 150UF 20% 4V SMD Chemi-Con |
1,944 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 4 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.61 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
APXA200ARA220MF60GCAP ALUM POLY 22UF 20% 20V SMD Chemi-Con |
1,313 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 20 V | 50mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.65 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
