铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

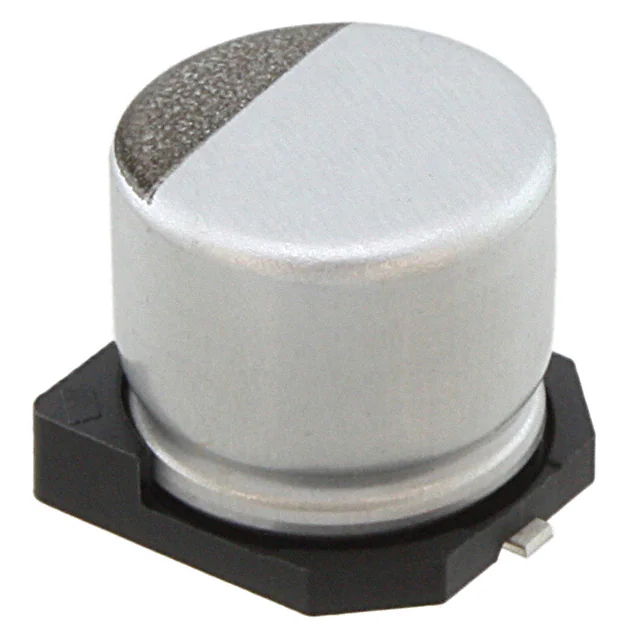

HHXA350ARA470MF61GCAP ALUM HYBRID 47UF 20% 35V SMD Chemi-Con |
17,442 |
|
规格书 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 47 µF | ±20% | 35 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HHXF250ARA221MHA0GCAP ALUMHYB 220UF 20% 25V SMD Chemi-Con |
475 |
|
规格书 |
HXF | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 18mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 390 mA @ 120 Hz | 3.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
HHXC800ARA470MJA0GCAP ALUM HYBRID 47UF 20% 80V SMD Chemi-Con |
731 |
|
规格书 |
HXC | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 80 V | 33mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.393" L x 0.433" W (10.00mm x 11.00mm) | 0.413" (10.50mm) | - | Surface Mount |
|
HHXB500ARA330MF80GCAP ALUM HYBRID 33UF 20% 50V SMD Chemi-Con |
46,531 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 33 µF | ±20% | 50 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
HHXB250ARA101MF80GCAP ALUMHYB 100UF 20% 25V SMD Chemi-Con |
1,784 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXE100ARA470ME61GCAP ALUM POLY 47UF 20% 10V SMD Chemi-Con |
1,670 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 10 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.31 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APXE6R3ARA121ME61GCAP ALUM POLY 120UF 20% 6.3V SMD Chemi-Con |
5,841 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 6.3 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APXE6R3ARA101ME61GCAP ALUM POLY 100UF 20% 6.3V SMD Chemi-Con |
438 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APSG160ELL152MH20SCAP ALUM POLY 1.5MF 20% 16V TH Chemi-Con |
1,213 |
|
规格书 |
NPCAP™-PSG | Bulk | Active | Polymer | 1.5 mF | ±20% | 16 V | 8mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 750 mA @ 120 Hz | 7.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole |
|

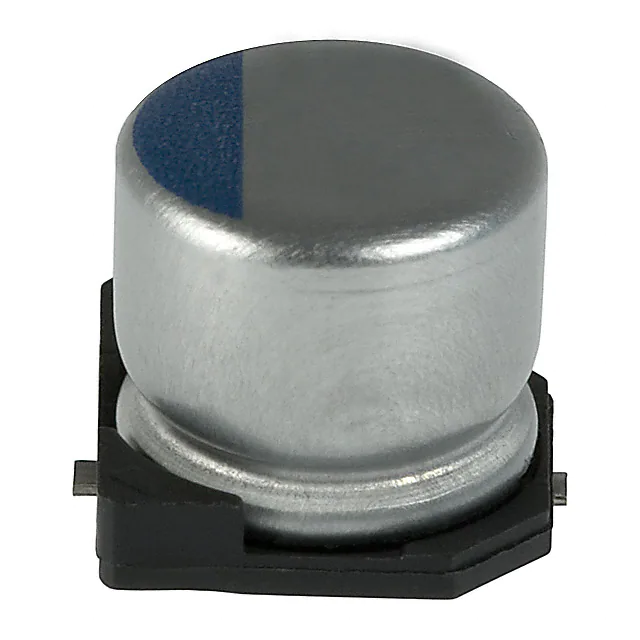

APXA160ARA330MF60GCAP ALUM POLY 33UF 20% 16V SMD Chemi-Con |
4,032 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 16 V | 37mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.05 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
