铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

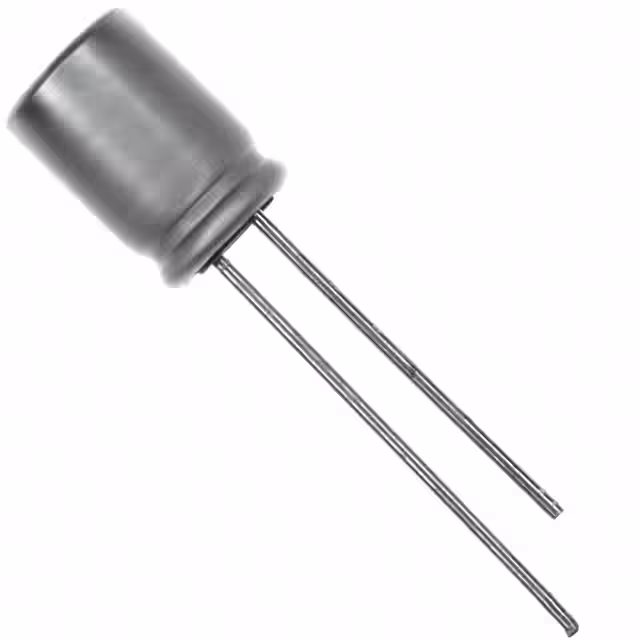

APSC2R5ELL102MHB5SCAP ALUM POLY 1000UF 20% 2.5V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PSC | Bulk | Active | Polymer | 1000 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
2R5PS680MH11CAP ALUM POLY 680UF 20% 2.5V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PS | Tape & Reel (TR) | Obsolete | Polymer | 680 µF | ±20% | 2.5 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.23 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|

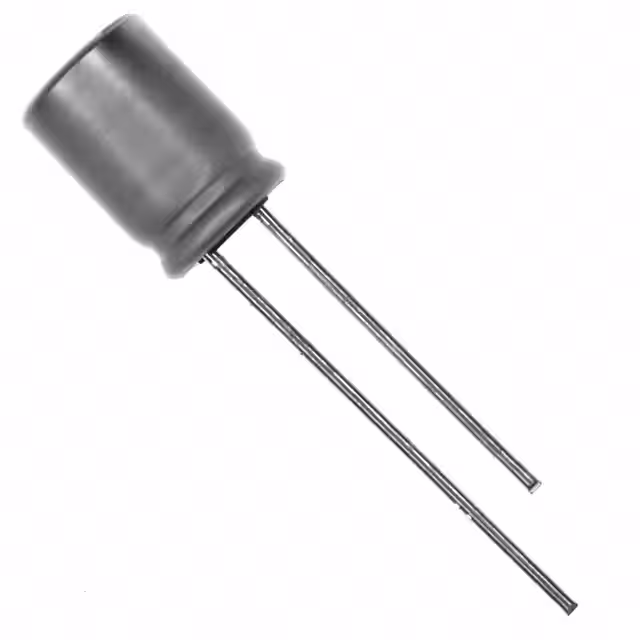

APSC4R0ELL681MHB5SCAP ALUM POLY 680UF 20% 4V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PSC | Bulk | Active | Polymer | 680 µF | ±20% | 4 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APSC2R5ELL152MHB5SCAP ALUM POLY 1500UF 20% 2.5V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PSC | Bulk | Active | Polymer | 1500 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APXA250ARA220MH70SCAP ALUM POLY 22UF 20% 25V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 22 µF | ±20% | 25 V | 50mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXA2R5ARA221MF60GCAP ALUM POLY 220UF 20% 2.5V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 25mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APXA6R3ARA820MF60GCAP ALUM POLY 82UF 20% 6.3V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 6.3 V | 27mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APXA4R0ARA101MF60GCAP ALUM POLY 100UF 20% 4V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 4 V | 26mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.45 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.224" (5.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXA6R3ARA101MF45GCAP ALUM POLY 100UF 20% 6.3V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | - | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.67 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.189" (4.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APXA2R5ARA221MF55GCAP ALUM POLY 220UF 20% 2.5V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 25mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.205" (5.20mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
