铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXF2R5ARA391ME61GCAP ALUM POLY 390UF 20% 2.5V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2.5 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APXF2R0ARA681MF61GCAP ALUM POLY 680UF 20% 2V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 2 V | 12mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HHXC500ARA100ME61GCAP ALUM HYBRID 10UF 20% 50V SMD Chemi-Con |
0 |
|
规格书 |
HXC | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 50 V | 120mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 500 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|

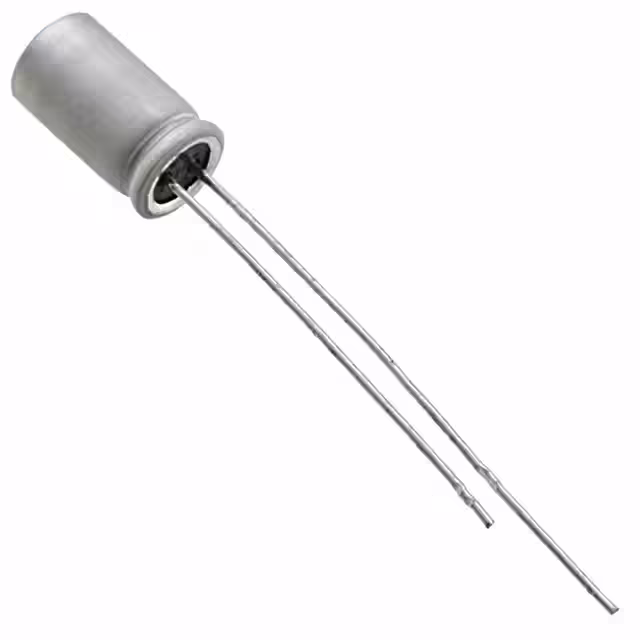

APSK2R5ELL331ME08SCAP ALUM POLY 330UF 20% 2.5V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PSK | Bulk | Active | Polymer | 330 µF | ±20% | 2.5 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.35 A @ 100 kHz | - | 0.079" (2.00mm) | 0.197" Dia (5.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
|
APXF2R5ARA331MF45GCAP ALUM POLY 330UF 20% 2.5V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 12mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.185" (4.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APXF6R3ARA151ME46GCAP ALUM POLY 150UF 20% 6.3V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.189" (4.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
APXF2R5ARA221ME46GCAP ALUM POLY 220UF 20% 2.5V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 2.5 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.1 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.189" (4.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
APSF4R0ELL471MF08SCAP ALUM POLY 470UF 20% 4V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PSF | Bulk | Active | Polymer | 470 µF | ±20% | 4 V | 5mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 590 mA @ 120 Hz | 5.9 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
APXF2R5ARA681MH70GCAP ALUM POLY 680UF 20% 2.5V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 2.5 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
APXF2R5ARA561MF80GCAP ALUM POLY 560UF 20% 2.5V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2.5 V | 9mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
