铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXF4R0ARA391MF80GCAP ALUM POLY 390UF 20% 4V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 4 V | 9mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APXF2R5ARA561MH70GCAP ALUM POLY 560UF 20% 2.5V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2.5 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APSA100ELL151MFA5GCAP ALUM POLY 150UF 20% 10V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PSA | Bulk | Obsolete | Polymer | 150 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.82 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | - | Through Hole |
|
APSC2R5ETD821MH08SCAP ALUM POLY 820UF 20% 2.5V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PSC | Tape & Box (TB) | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
APSF160ETD101MFA5SCAP ALUM POLY 100UF 20% 16V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PSF | Tape & Box (TB) | Active | Polymer | 100 µF | ±20% | 16 V | 25mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 282 mA @ 120 Hz | 2.82 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.425" (10.80mm) | - | Through Hole |
|
|
APXF4R0ARA561MH70GCAP ALUM POLY 560UF 20% 4V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

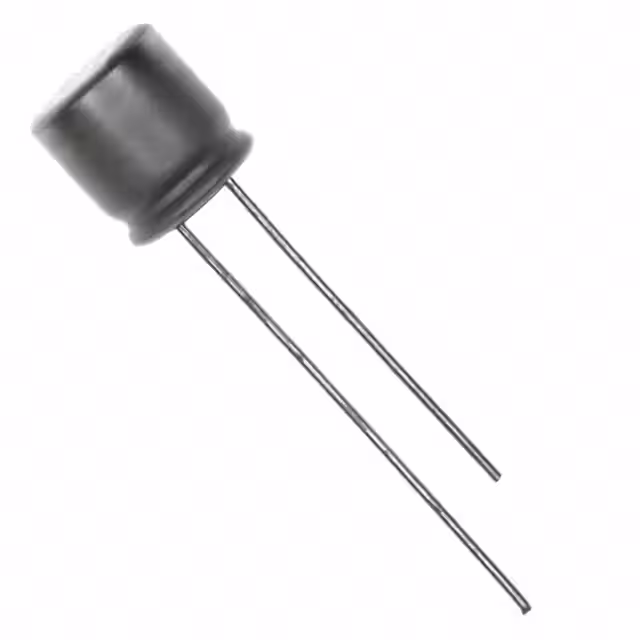

APSC2R5ELL821MH08SCAP ALUM POLY 820UF 20% 2.5V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PSC | Bulk | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
|
APXF4R0ARA471MH70GCAP ALUM POLY 470UF 20% 4V SMD Chemi-Con |
0 |
|
规格书 |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 4 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APSA2R5ELL821MHB5SCAP ALUM POLY 820UF 20% 2.5V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PSA | Bulk | Obsolete | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.58 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
APSC2R5EC3821MH08SCAP ALUM POLY 820UF 20% 2.5V TH Chemi-Con |
0 |
|
规格书 |
NPCAP™-PSC | Bulk | Active | Polymer | 820 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
