铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APXA100ARA331MJ80GCAP ALUM POLY 330UF 20% 10V SMD Chemi-Con |
500 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 24mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.77 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
APXA6R3ARA471MJ80GCAP ALUM POLY 470UF 20% 6.3V SMD Chemi-Con |
397 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 20mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.13 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

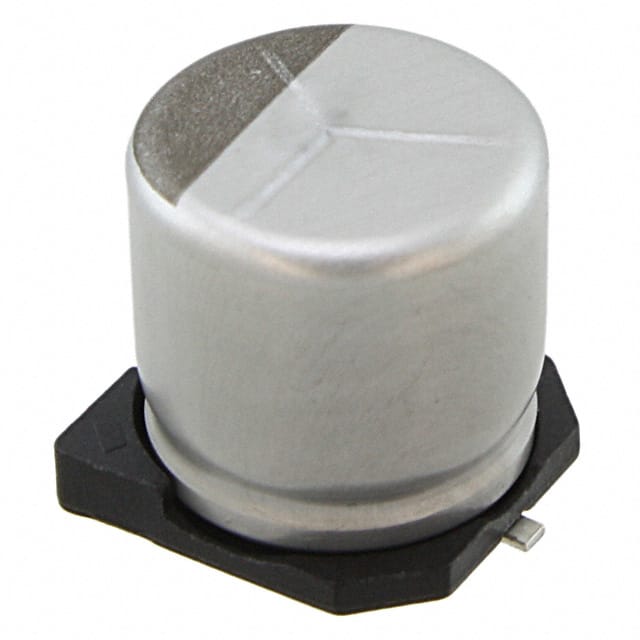

HHXB350ARA271MJA0GCAP ALUMHYB 270UF 20% 35V SMD Chemi-Con |
718 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HHXB800ARA390MJA0GCAP ALUM HYBRID 39UF 20% 80V SMD Chemi-Con |
624 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 39 µF | ±20% | 80 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HHXB630ARA560MJA0GCAP ALUM HYBRID 56UF 20% 63V SMD Chemi-Con |
424 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
APXA6R3ARA681MJC0GCAP ALUM POLY 680UF 20% 6.3V SMD Chemi-Con |
6,845 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 6.3 V | 10mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HHXA160ARA471MJA0GCAP ALUMHYB 470UF 20% 16V SMD Chemi-Con |
1,285 |
|
规格书 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 470 µF | ±20% | 16 V | 18mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HHXA350ARA271MJA0GCAP ALUMHYB 270UF 20% 35V SMD Chemi-Con |
1,142 |
|
规格书 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HHXA500ARA101MJA0GCAP ALUMHYB 100UF 20% 50V SMD Chemi-Con |
2,005 |
|
规格书 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.406" (10.30mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
APXA4R0ARA681MJ80GCAP ALUM POLY 680UF 20% 4V SMD Chemi-Con |
1,053 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 4 V | 20mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.13 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
