铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APS-160ETD331MJC5SCAP ALUM POLY 330UF 20% 16V TH Chemi-Con |
2,550 |
|
规格书 |
NPCAP™-PS | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.05 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
HHXD630ARA330MJA0GCAP ALUM HYBRID 33UF 20% 63V SMD Chemi-Con |
909 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 126 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HHXD630ARA560MJA0GCAP ALUM HYBRID 56UF 20% 63V SMD Chemi-Con |
490 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 180 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

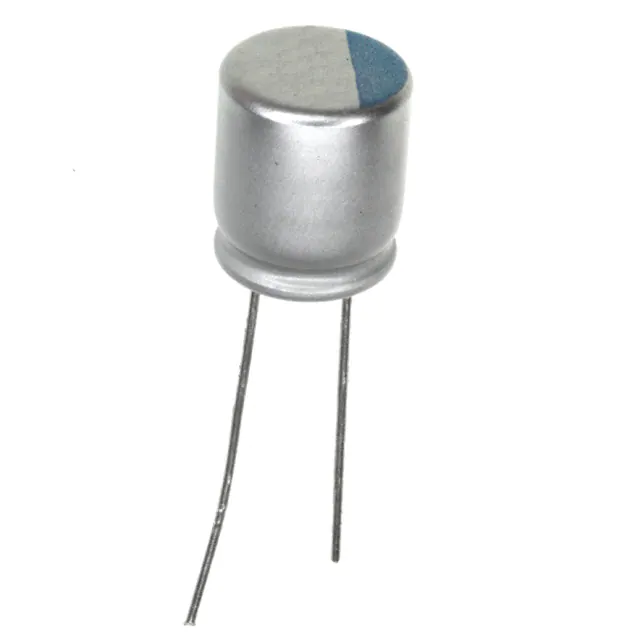

APSC160ELL471MJB5SCAP ALUM POLY 470UF 20% 16V TH Chemi-Con |
1,547 |
|
规格书 |
NPCAP™-PSC | Bulk | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole |
|

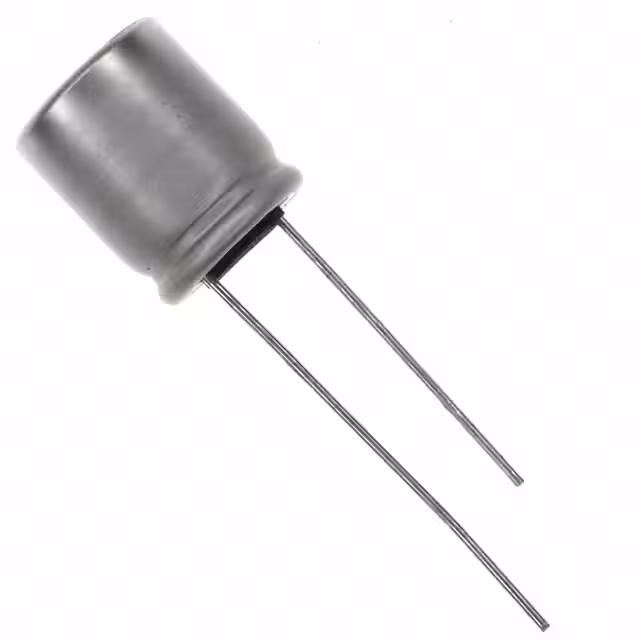

APSC160ELL331MJC5SCAP ALUM POLY 330UF 20% 16V TH Chemi-Con |
1,000 |
|
规格书 |
NPCAP™-PSC | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.492" (12.50mm) | - | Through Hole |
|
|
HHXD350ARA271MJA0GCAP ALUMHYB 270UF 20% 35V SMD Chemi-Con |
1,127 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 325 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HHXB630ARA330MHA0GCAP ALUM HYBRID 33UF 20% 63V SMD Chemi-Con |
1,819 |
|
规格书 |
HXB | Tape & Reel (TR) | Not For New Designs | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.406" (10.30mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXA100ARA271MHC0GCAP ALUM POLY 270UF 20% 10V SMD Chemi-Con |
813 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 14mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.42 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APXA100ARA271MJ80GCAP ALUM POLY 270UF 20% 10V SMD Chemi-Con |
7,546 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 24mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.77 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
APXA6R3ARA331MJ80GCAP ALUM POLY 330UF 20% 6.3V SMD Chemi-Con |
504 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 20mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.13 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
