铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HHXA630ARA100MF61GCAP ALUM HYBRID 10UF 20% 63V SMD Chemi-Con |
1,990 |
|
规格书 |
HXA | Tape & Reel (TR) | Not For New Designs | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXE100ARA560ME61GCAP ALUM POLY 56UF 20% 10V SMD Chemi-Con |
1,753 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 10 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.31 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.228" (5.80mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|

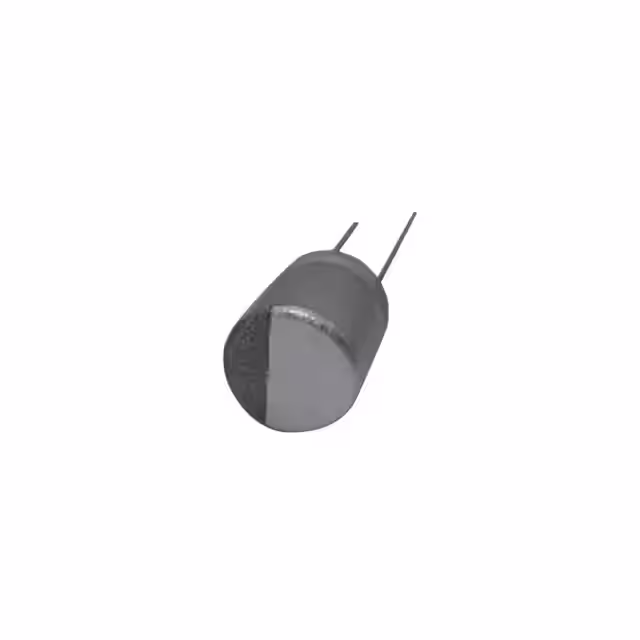

HHSD350ELL271MJC5SCAP ALUM HYBRID 270UF 20% 35V TH Chemi-Con |
2,862 |
|
规格书 |
HSD | Bulk | Active | Hybrid | 270 µF | ±20% | 35 V | 17mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 390 mA @ 120 Hz | 3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
APXK6R3ARA151MF46GCAP ALUM POLY 150UF 20% 6.3V SMD Chemi-Con |
2,508 |
|
规格书 |
NPCAP™-PXK | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 19mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.78 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.177" (4.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXS100ARA151MH70GCAP ALUM POLY 150UF 20% 10V SMD Chemi-Con |
4,000 |
|
规格书 |
NPCAP™-PXS | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 10 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.76 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

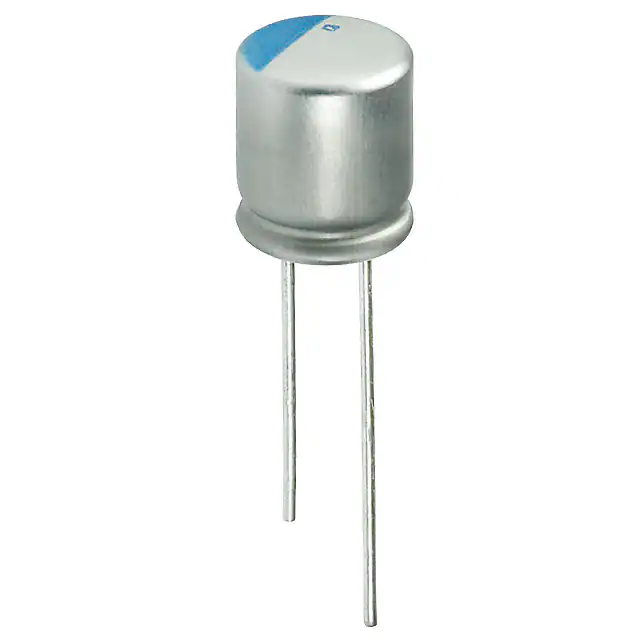

APSA6R3ELL681MJB5SCAP ALUM POLY 680UF 20% 6.3V TH Chemi-Con |
255 |
|
规格书 |
NPCAP™-PSA | Bulk | Active | Polymer | 680 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.86 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole |
|
HHXD630ARA220MHA0GCAP ALUM HYBRID 22UF 20% 63V SMD Chemi-Con |
1,288 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 112 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
APSA100ELL471MJB5SCAP ALUM POLY 470UF 20% 10V TH Chemi-Con |
990 |
|
规格书 |
NPCAP™-PSA | Bulk | Active | Polymer | 470 µF | ±20% | 10 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.65 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole |
|
HHXC350ARA101MHA0GCAP ALUMHYB 100UF 20% 35V SMD Chemi-Con |
720 |
|
规格书 |
HXC | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
APSG200ELL681MJB5SCAP ALUM POLY 680UF 20% 20V TH Chemi-Con |
867 |
|
规格书 |
NPCAP™-PSG | Bulk | Active | Polymer | 680 µF | ±20% | 20 V | 12mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
