铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCR1C681MCL1GSCAP ALUM POLY 680UF 20% 16V SMD Nichicon |
960 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 16 V | 19mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCR1D561MCL1GSCAP ALUM POLY 560UF 20% 20V SMD Nichicon |
355 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 20 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1K150MCL1GSCAP ALUM POLY 15UF 20% 80V SMD Nichicon |
2,176 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 15 µF | ±20% | 80 V | 39mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

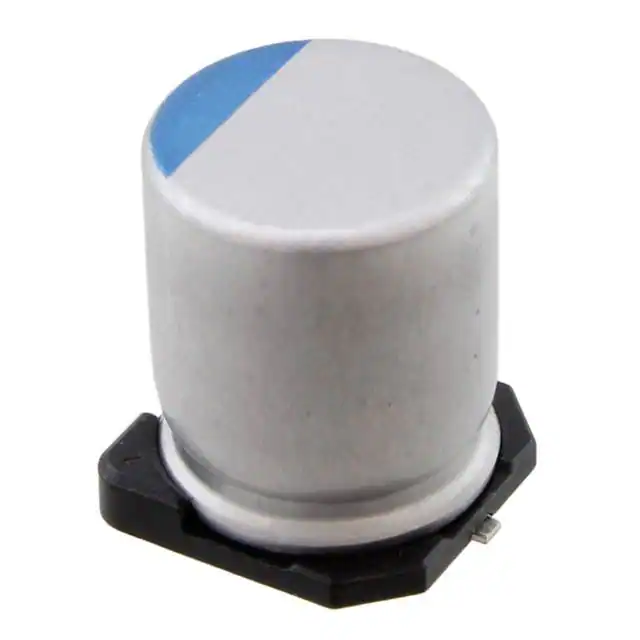

PCX1E181MCL1GSCAP ALUM POLY 180UF 20% 25V SMD Nichicon |
879 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 28mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1D471MCL2GSCAP ALUM POLY 470UF 20% 20V SMD Nichicon |
4,178 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 20 V | 20mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCV2B120MCL1GSCAP ALUM POLY 12UF 20% 125V SMD Nichicon |
2,121 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 12 µF | ±20% | 125 V | 69mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.398" (10.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RNE1A221MDS1PXCAP ALUM POLY 220UF 20% 10V TH Nichicon |
19,250 |
|
规格书 |
FPCAP, RNE | Cut Tape (CT) | Active | Polymer | 220 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|

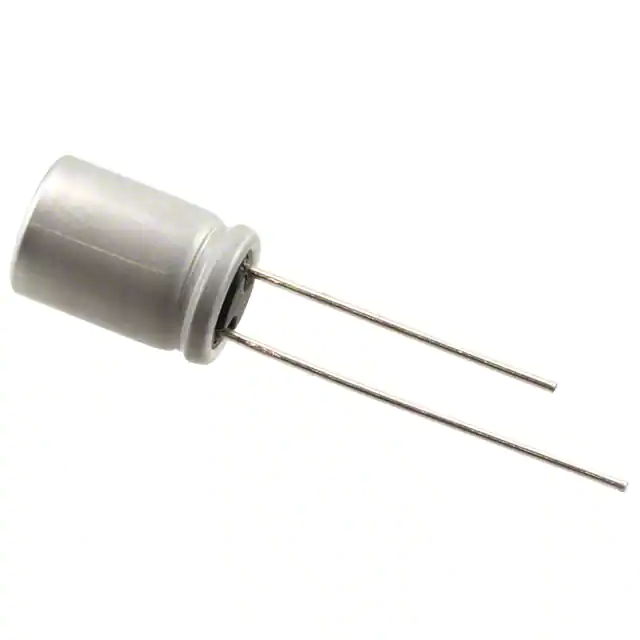

PLF0J471MDO1CAP ALUM POLY 470UF 20% 6.3V TH Nichicon |
2,000 |
|
规格书 |
PLF | Bulk | Active | Polymer | 470 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
RNS1A680MDS1JXCAP ALUM POLY 68UF 20% 10V TH Nichicon |
3,856 |
|
规格书 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 68 µF | ±20% | 10 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 265 mA @ 120 Hz | 2.65 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.433" (11.00mm) | - | Through Hole |
|
RS80J471MDNASQJTCAP ALUM POLY 470UF 20% 6.3V TH Nichicon |
6,184 |
|
规格书 |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole |
