铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCG0J471MCL1GSCAP ALUM POLY 470UF 20% 6.3V SMD Nichicon |
13,554 |
|
规格书 |
PCG | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLG1C821MDO1CAP ALUM POLY 820UF 20% 16V TH Nichicon |
408 |
|
规格书 |
PLG | Bulk | Active | Polymer | 820 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCJ1C221MCL1GSCAP ALUM POLY 220UF 20% 16V SMD Nichicon |
993 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.45 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCJ0G152MCL1GSCAP ALUM POLY 1500UF 20% 4V SMD Nichicon |
4,420 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 4 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

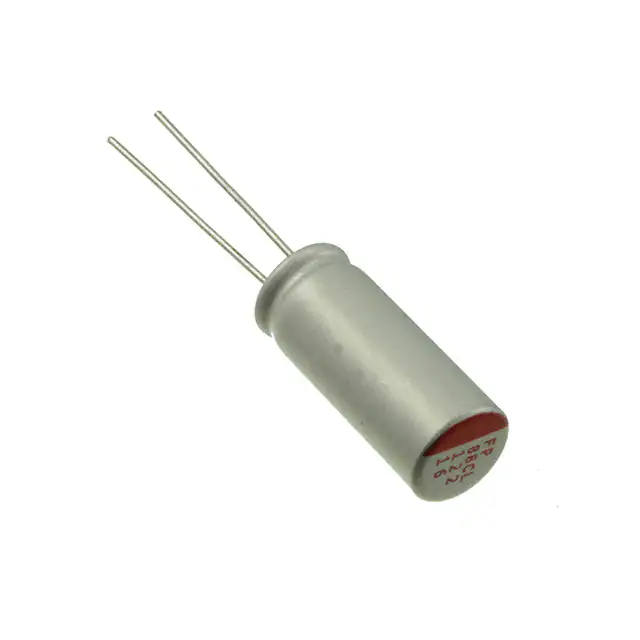

RNL1C102MDS1KXCAP ALUM POLY 1000UF 20% 16V TH Nichicon |
162 |
|
规格书 |
FPCAP, RNL | Cut Tape (CT) | Active | Polymer | 1000 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 750 mA @ 120 Hz | 7.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.846" (21.50mm) | - | Through Hole |
|
PCV1J100MCL1GSCAP ALUM POLY 10UF 20% 63V SMD Nichicon |
8,317 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 63 V | 75mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
RNL1C222MDS1PHCAP ALUM POLY 2200UF 20% 16V TH Nichicon |
1,326 |
|
规格书 |
FPCAP, RNL | Cut Tape (CT) | Active | Polymer | 2200 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
|
|
PCJ0J152MCL1GSCAP ALUM POLY 1500UF 20% 6.3V Nichicon |
22,520 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 1500 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.025 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCG0J102MCL1GSCAP ALUM POLY 1000UF 20% 6.3V Nichicon |
7,838 |
|
规格书 |
PCG | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 6.3 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PLG1C471MDO1TDCAP ALUM POLY 470UF 20% 16V TH Nichicon |
3,349 |
|
规格书 |
PLG | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
