铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCR1J560MCL1GSCAP ALUM POLY 56UF 20% 63V SMD Nichicon |
9,975 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 63 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

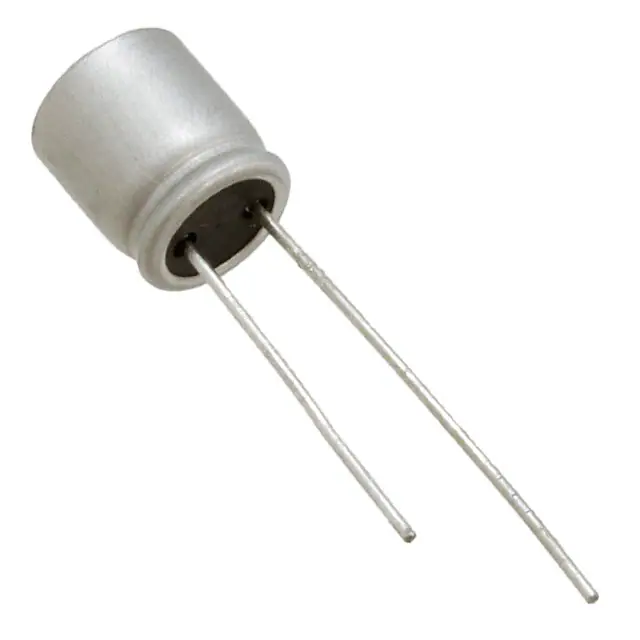

PLX1H220MCL1TDCAP ALUM POLY 22UF 20% 50V TH Nichicon |
374 |
|
规格书 |
PLX | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 50 V | 35mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
PCV1H470MCL1GSCAP ALUM POLY 47UF 20% 50V SMD Nichicon |
3,465 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 50 V | 30mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCH1J470MCL1GSCAP ALUM POLY 47UF 20% 63V SMD Nichicon |
1,500 |
|
规格书 |
PCH | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 63 V | 35mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 75 mA @ 120 Hz | 1.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.319" (8.10mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCR1V151MCL1GSCAP ALUM POLY 150UF 20% 35V SMD Nichicon |
1,665 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 35 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1H680MCL2GSCAP ALUM POLY 68UF 20% 50V SMD Nichicon |
19,445 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 50 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCR1E221MCL1GSCAP ALUM POLY 220UF 20% 25V SMD Nichicon |
650 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 25 V | 24mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

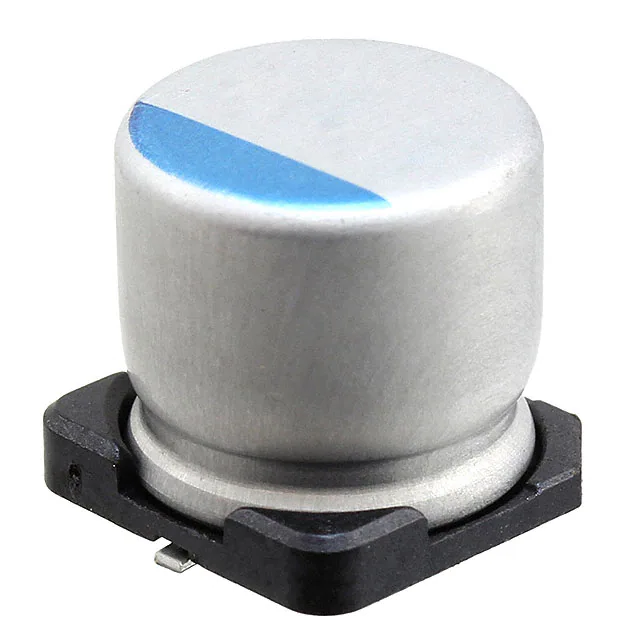

PCR1J680MCL1GSCAP ALUM POLY 68UF 20% 63V SMD Nichicon |
16,075 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 63 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCR1C471MCL1GSCAP ALUM POLY 470UF 20% 16V SMD Nichicon |
5,013 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 16 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV2B6R8MCL1GSCAP ALUM POLY 6.8UF 20% 125V SMD Nichicon |
1,097 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 6.8 µF | ±20% | 125 V | 93mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.398" (10.10mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
