铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

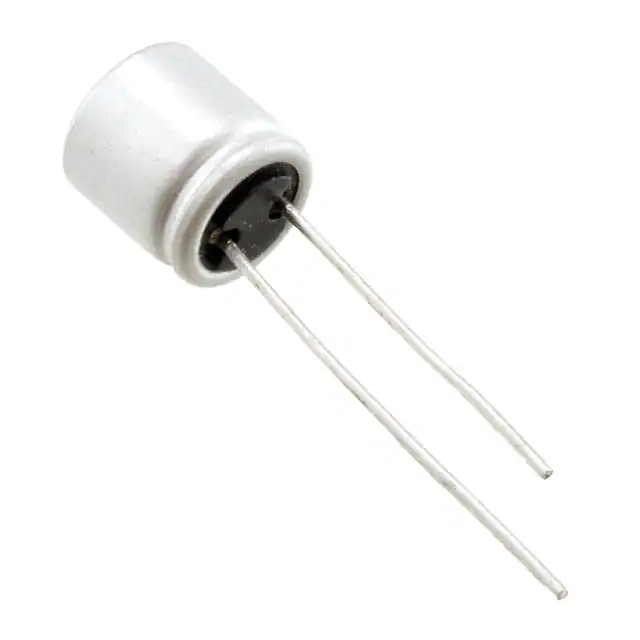

RL81C331MDN1KXCAP ALUM POLY 330UF 20% 16V TH Nichicon |
3,073 |
|
规格书 |
FPCAP, RL8 | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|

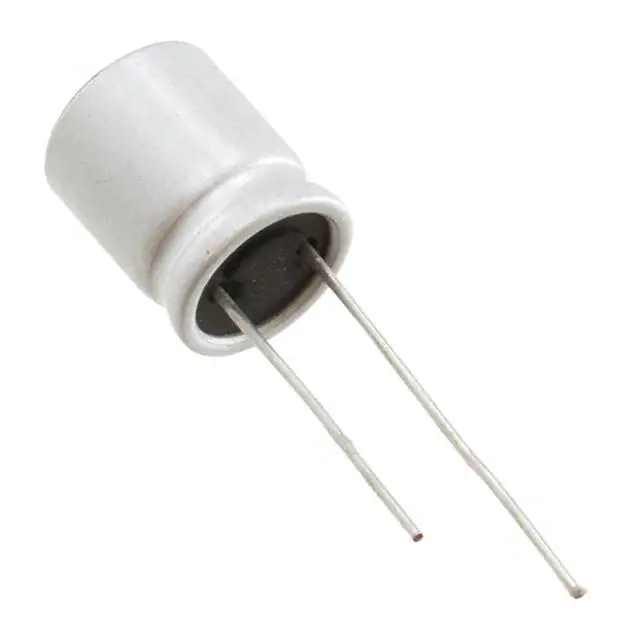

RNU1A122MDN1PHCAP ALUM POLY 1200UF 20% 10V TH Nichicon |
975 |
|
规格书 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 1200 µF | ±20% | 10 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 620 mA @ 120 Hz | 6.2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
GYA1J220MCW1GSCAP ALUM HYBRID 22UF 20% 63V SMD Nichicon |
4,656 |
|
规格书 |
GYA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 135 mA @ 120 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.343" (8.70mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
RSA1C101MCN1GSCAP ALUM POLY 100UF 20% 16V SMD Nichicon |
3,165 |
|
规格书 |
FPCAP, RSA | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 2.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
|
GYA1E221MCQ1GSCAP ALUMHYB 220UF 20% 25V SMD Nichicon |
3,345 |
|
规格书 |
GYA | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PLF0J471MCO6CAP ALUM POLY 470UF 20% 6.3V TH Nichicon |
2,529 |
|
规格书 |
PLF | Bulk | Active | Polymer | 470 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.2 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
GYA1V151MCQ1GSCAP ALUMHYB 150UF 20% 35V SMD Nichicon |
1,855 |
|
规格书 |
GYA | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
GYC1V221MCQ1GSCAP ALUMHYB 220UF 20% 35V SMD Nichicon |
904 |
|
规格书 |
GYC | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 495 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RNL1C681MDS1CAP ALUM POLY 680UF 20% 16V TH Nichicon |
504 |
|
规格书 |
FPCAP, RNL | Bulk | Active | Polymer | 680 µF | ±20% | 16 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 700 mA @ 120 Hz | 7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.689" (17.50mm) | - | Through Hole |
|
RR71C331MDN1CAP ALUM POLY 330UF 20% 16V TH Nichicon |
2,164 |
|
规格书 |
FPCAP, RR7 | Bulk | Active | Polymer | 330 µF | ±20% | 16 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
