交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCS120PW48AC/DC CONVERTER 48V 120W |
51 |
|
规格书 |
SCS120PW (120W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W | ITE (Commercial) | 3 kV | 0°C ~ 60°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 5.00" L x 3.00" W x 1.27" H (127.0mm x 76.2mm x 32.3mm) |
|
PBA30F-24-NAC/DC CONVERTER 24V 30W |
56 |
|
规格书 |
PBA (30W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 30W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
PBA30F-12-NAC/DC CONVERTER 12V 30W |
42 |
|
规格书 |
PBA (30W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
LS200-7.5AC/DC CONVERTER 7.5V 200W |
186 |
|
规格书 |
LS (200W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 7.5V | - | - | - | - | - | 26.7 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 3.90" W x 1.61" H (198.1mm x 99.1mm x 40.9mm) |
|
CFM202S280BAC/DC CONVERTER 28V 150W |
37 |
|
规格书 |
CFM202S (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 7.14 A | - | - | - | - | - | 150W (200W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 80°C (With Derating) | Baseplate, PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.31" H (101.6mm x 50.8mm x 33.3mm) |
|

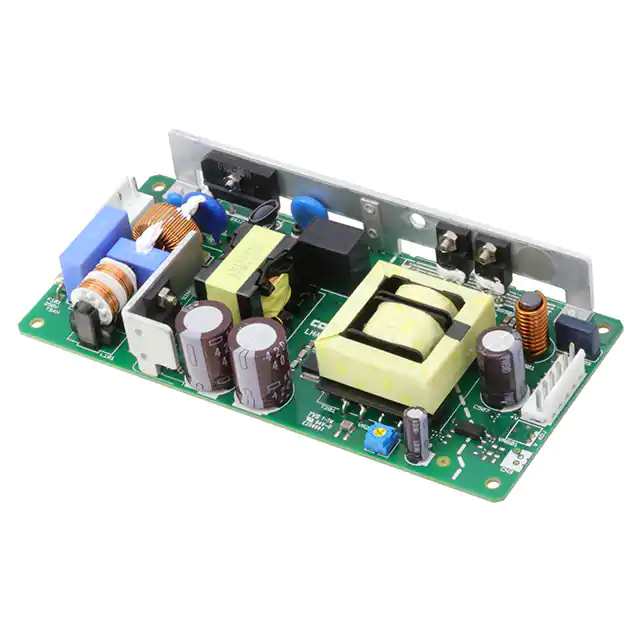

LHA150F-24AC/DC CONVERTER 24V 151W |
69 |
|
规格书 |
LHA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.30" L x 2.95" W x 0.93" H (160.0mm x 74.9mm x 23.6mm) |
|
LPS104-MAC/DC CONVERTER 15V 100W |
56 |
|
规格书 |
LPS100-M (150W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.29" H (101.6mm x 50.8mm x 32.8mm) |
|
|
LPS108-MAC/DC CONVERTER 48V 100W |
55 |
|
规格书 |
LPS100-M (150W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W (150W Forced Air) | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.29" H (101.6mm x 50.8mm x 32.8mm) |
|
LFMWLP120-1301AC/DC CONVERTER 12V 100W |
44 |
|
规格书 |
MWLP120 (120W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC, 390VDC | 12V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 100W (120W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.18" H (76.2mm x 50.8mm x 30.0mm) |
|
TXLN 080-212AC/DC CONVERTER 5V 12V 93W |
33 |
|
规格书 |
TXLN 080 (80W) | Box | Active | Enclosed | 2 | 88 ~ 264 VAC, 125 ~ 375 VDC | 5V | 12V | - | - | - | - | 9 A | 4 A | - | - | - | - | 93W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.74" W x 1.50" H (159.0mm x 95.0mm x 38.0mm) |
|
CUS100ME-15/AAC/DC CONVERTER 15V 100W |
44 |
|
规格书 |
CUS100ME (100W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 6.66 A | - | - | - | - | - | 100W | Household Appliances, ITE (Commercial), Medical | 4 kV | -20°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 4.57" L x 2.52" W x 1.52" H (116.0mm x 64.0mm x 38.5mm) |
|
ABC200-1012GAC/DC CONVERTER 12V 200W |
37 |
|
规格书 |
ABC200 (200W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 200W | ITE (Commercial) | 4.2 kV | -10°C ~ 70°C (With Derating) | PFC, Remote Sense, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.44" H (101.6mm x 50.8mm x 36.6mm) |
|
AD-155BAC/DC CONVERTER 27.6V 27.1V 152W |
49 |
|
规格书 |
AD-155 (155W) | Box | Active | Enclosed | 2 | 88 ~ 264 VAC, 124 ~ 370 VDC | 27.6V | 27.1V | - | - | - | - | 5 A | 500 mA | - | - | - | - | 152W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.83" L x 4.33" W x 1.97" H (199.0mm x 110.0mm x 50.0mm) |
|
PLA150F-12AC/DC CONVERTER 12V 150W |
303 |
|
规格书 |
PLA (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - |
|

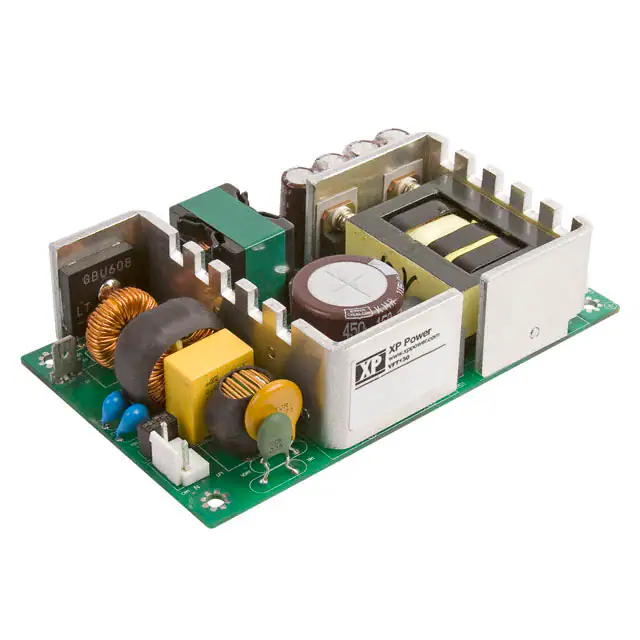

VFT150PS12AC/DC CONVERTER 12V 150W |
628 |
|
规格书 |
VFT (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.30" H (127.0mm x 76.2mm x 33.0mm) |
|
TPI 125-124A-JAC/DC CONVERTER 24V 100W |
28 |
|
规格书 |
TPI 125A-J (125W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 100W (125W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 85°C | Adjustable Output, Universal Input | Chassis Mount | 3.04" L x 2.01" W x 1.16" H (77.2mm x 51.1mm x 29.5mm) |
|

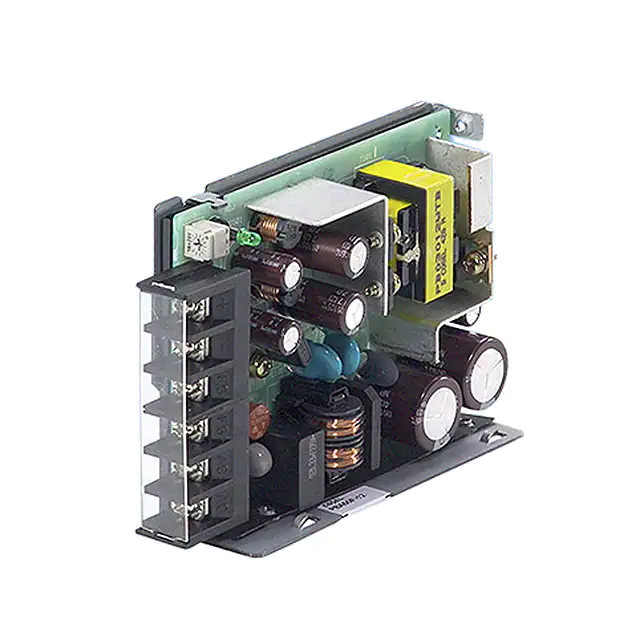

PBW30F-15AC/DC CONVERTER +/-15V 30W |
79 |
|
规格书 |
PBW (30W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1 A | 1.4 A | - | - | - | - | 30W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
RAC150-12SG/ENCAC/DC CONVERTER 12V 125W |
34 |
|
规格书 |
POWERLINE RAC150-G (150W) | Box | Active | Enclosed, Conformal Coated | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 125W (150W Forced Air) | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.13" L x 2.44" W x 1.38" H (105.0mm x 62.0mm x 35.0mm) |
|
SE-450-36AC/DC CONVERTER 36V 450W |
162 |
|
规格书 |
SE-450 (450W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 254 ~ 370 VDC | 36V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 450W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Remote Sense | Chassis Mount | 8.86" L x 4.88" W x 1.97" H (225.0mm x 124.0mm x 50.0mm) |
|
RPT-160CAC/DC CONVERTER 5V +/-15V 96W |
216 |
|
规格书 |
RPT-160 (160W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | 15V | -15V | - | - | - | 9 A | 2.6 A | 800 mA | - | - | - | 96W (139W Forced Air) | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.36" H (127.0mm x 76.2mm x 34.5mm) |
