交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

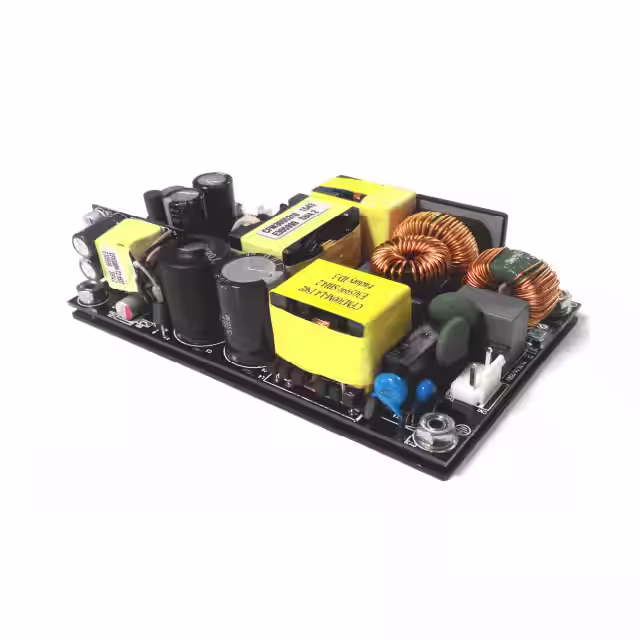

CFM300S120AC/DC CONVERTER 12V 300W |
40 |
|
规格书 |
CFM300S (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.1mm) |
|
EPP-400-15AC/DC CONVERTER 15V 251W |
34 |
|
规格书 |
EPP-400 (400W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 15V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 251W (401W Forced Air) | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|
LFMWLP350-1301AC/DC CONVERTER 12V 180W |
34 |
|
规格书 |
MWLP350 (350W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC, 390VDC | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 180W (225W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.00" H (127.0mm x 76.2mm x 25.4mm) |
|

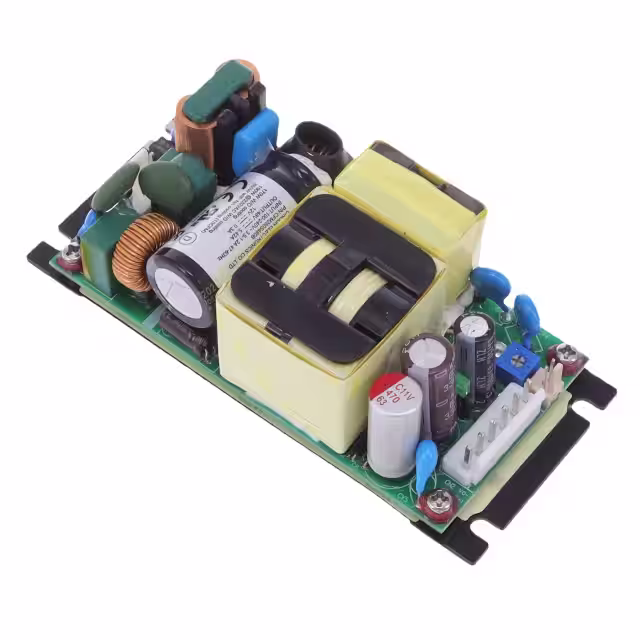

CFM260S480BAC/DC CONVERTER 48V 260W |
35 |
|
规格书 |
CFM260S (260W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 5.42 A | - | - | - | - | - | 260W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 80°C (With Derating) | Baseplate, PFC, Universal Input | Chassis Mount | 4.60" L x 2.00" W x 1.52" H (116.8mm x 50.8mm x 38.6mm) |
|

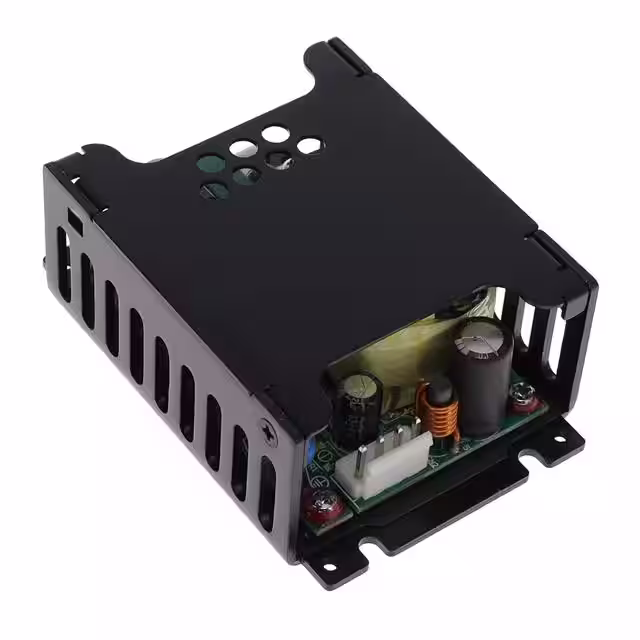

CFM130M480-CAC/DC CONVERTER 48V 101W |
34 |
|
规格书 |
CFM130M (130W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, Medical | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) |
|

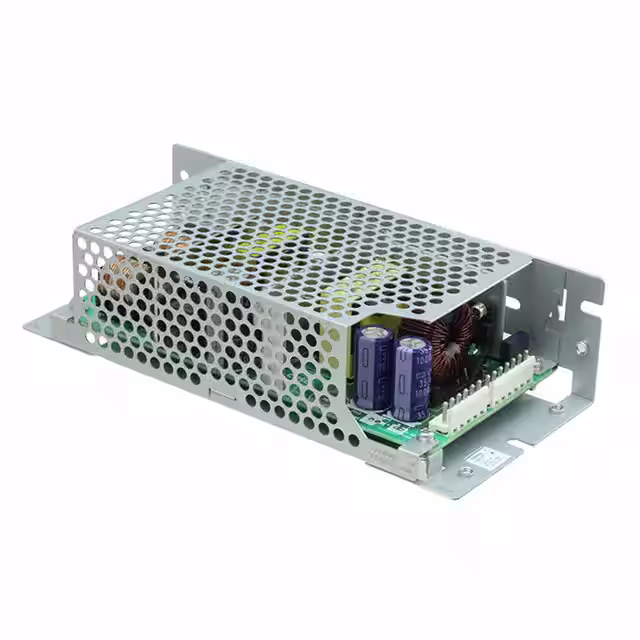

LFA150F-24-SNAC/DC CONVERTER 24V |
291 |
|
规格书 |
LFA (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 74.9mm x 37.1mm) |
|
ECE40US09-SAC/DC CONVERTER 9V 40W |
85 |
|
规格书 |
ECE (40W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 4.44 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -25°C ~ 70°C | DC Input Capable, Universal Input | Chassis Mount | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) |
|
ZWS75BAF-24AC/DC CONVERTER 24V 75W |
326 |
|
规格书 |
ZWS75BAF (75W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 5.90" L x 1.97" W x 1.30" H (150.0mm x 50.0mm x 33.0mm) |
|
PBA75F-5AC/DC CONVERTER 5V 75W |
138 |
|
规格书 |
PBA (75W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | 75W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|

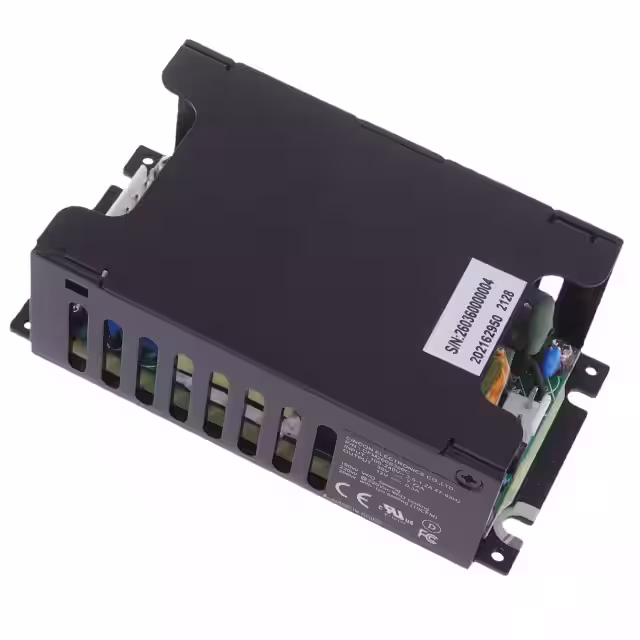

CFM260S360CAC/DC CONVERTER 36V 260W |
32 |
|
规格书 |
CFM260S (260W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 7.22 A | - | - | - | - | - | 260W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 80°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.60" L x 2.52" W x 1.59" H (116.8mm x 64.0mm x 40.5mm) |
|
RPS-400-27-CAC/DC CONVERTER 27V 251W |
93 |
|
规格书 |
RPS-400 (400W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 27V | - | - | - | - | - | 9.3 A | - | - | - | - | - | 251W (402W Forced Air) | Medical | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 5.11" L x 3.39" W x 1.69" H (129.8mm x 86.1mm x 42.9mm) |
|
ECS130US48AC/DC CONVERTER 48V 100W |
73 |
|
规格书 |
ECS (130W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.7 A | - | - | - | - | - | 100W (130W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) |
|
|
EPP-400-27AC/DC CONVERTER 27V 251W |
103 |
|
规格书 |
EPP-400 (400W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 27V | - | - | - | - | - | 9.3 A | - | - | - | - | - | 251W (402W Forced Air) | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|
TPI 150-124A-JAC/DC CONVERTER 24V 150W |
87 |
|
规格书 |
TPI 150A (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.16" H (101.6mm x 50.8mm x 29.5mm) |
|
PBA50F-24AC/DC CONVERTER 24V 50W |
235 |
|
规格书 |
PBA (50W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 50W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|

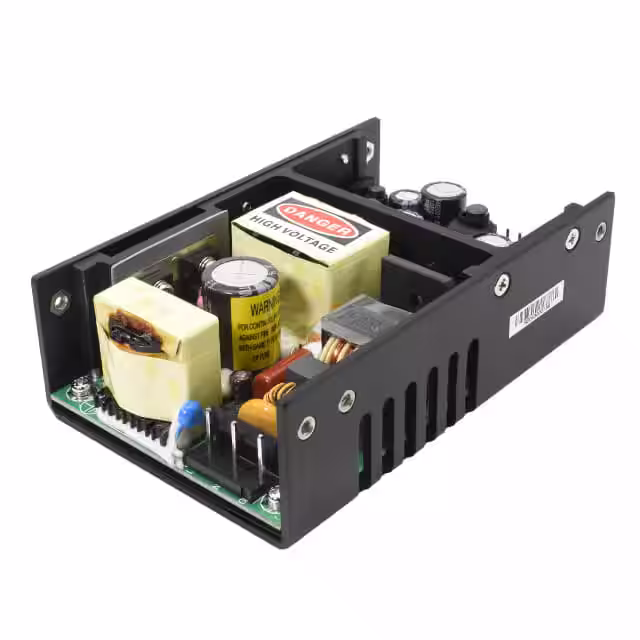

VSUU-120C-D512AC/DC CONVERTER 5V 12V 147W |
41 |
|
规格书 |
VSUU-120C-D (120W) | Box | Active | Open Frame | 2 | 90 ~ 264 VAC | 5V | 12V | - | - | - | - | 15 A | 6 A | - | - | - | - | 147W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC | Chassis Mount | 5.00" L x 3.21" W x 1.54" H (127.0mm x 81.5mm x 39.1mm) |
|
LFWLP225-1303AC/DC CONVERTER 24V 120W |
72 |
|
规格书 |
WLP225 (225W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC, 390VDC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W (225W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
|
MULP275-1315-2AC/DC CONVERTER 15V 160W |
98 |
|
规格书 |
MULP275 (275W) | Bulk | Active | Open Frame | 1 | 80 ~ 264 VAC, 390VDC | 15V | - | - | - | - | - | 10.66 A | - | - | - | - | - | 160W (275W Forced Air) | Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 0.75" H (127.0mm x 76.2mm x 19.1mm) |
|
EPP-500-36AC/DC CONVERTER 36V 320W |
34 |
|
规格书 |
EPP-500 (500W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 36V | - | - | - | - | - | 8.9 A | - | - | - | - | - | 320W (500W Forced Air) | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) |
|
TPP 100-124A-JAC/DC CONVERTER 24V 100W |
197 |
|
规格书 |
TPP 100A-J (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 4.17 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | -25°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.16" H (76.2mm x 50.8mm x 29.5mm) |
