交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS-35-15AC/DC CONVERTER 15V 36W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-35 (35W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.94" H (101.6mm x 50.8mm x 24.0mm) |
|
|
PS-35-24AC/DC CONVERTER 24V 36W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-35 (35W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 36W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.94" H (101.6mm x 50.8mm x 24.0mm) |
|
|
PS-35-3.3AC/DC CONVERTER 3.3V 20W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-35 (35W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.94" H (101.6mm x 50.8mm x 24.0mm) |
|
|
PS-35-48AC/DC CONVERTER 48V 36W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-35 (35W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 750 mA | - | - | - | - | - | 36W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.94" H (101.6mm x 50.8mm x 24.0mm) |
|
|
PS-35-5AC/DC CONVERTER 5V 30W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-35 (35W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.94" H (101.6mm x 50.8mm x 24.0mm) |
|
|
PS-35-7.5AC/DC CONVERTER 7.5V 35W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-35 (35W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 7.5V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | -20°C ~ 65°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.94" H (101.6mm x 50.8mm x 24.0mm) |
|

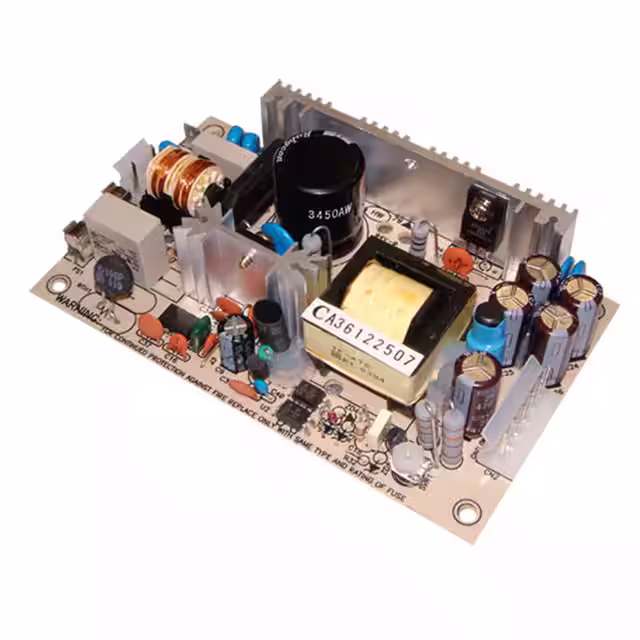

PS-45-12AC/DC CONVERTER 12V 44W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 3.7 A | - | - | - | - | - | 44W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) |
|
|
PS-45-13.5AC/DC CONVERTER 13.5V 45W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 13.5V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) |
|
|
PS-45-15AC/DC CONVERTER 15V 45W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 3 A | - | - | - | - | - | 45W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) |
|
|
PS-45-24AC/DC CONVERTER 24V 46W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-45 (45W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 1.9 A | - | - | - | - | - | 46W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 2.99" W x 1.10" H (127.0mm x 76.0mm x 28.0mm) |
