交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NFM-15-15AC/DC CONVERTER 15V 15W MEAN WELL USA Inc. |
0 |
|
规格书 |
NFM-15 (15W) | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.76" L x 1.89" W x 0.87" H (70.0mm x 48.0mm x 22.0mm) |
|
|
NFM-15-24AC/DC CONVERTER 24V 15W MEAN WELL USA Inc. |
0 |
|
规格书 |
NFM-15 (15W) | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 630 mA | - | - | - | - | - | 15W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.76" L x 1.89" W x 0.87" H (70.0mm x 48.0mm x 22.0mm) |
|
|
NFM-15-3.3AC/DC CONVERTER 3.3V 12W MEAN WELL USA Inc. |
0 |
|
规格书 |
NFM-15 (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 3.3V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 12W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.76" L x 1.89" W x 0.87" H (70.0mm x 48.0mm x 22.0mm) |
|
|
NFM-15-5AC/DC CONVERTER 5V 15W MEAN WELL USA Inc. |
0 |
|
规格书 |
NFM-15 (15W) | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.76" L x 1.89" W x 0.87" H (70.0mm x 48.0mm x 22.0mm) |
|

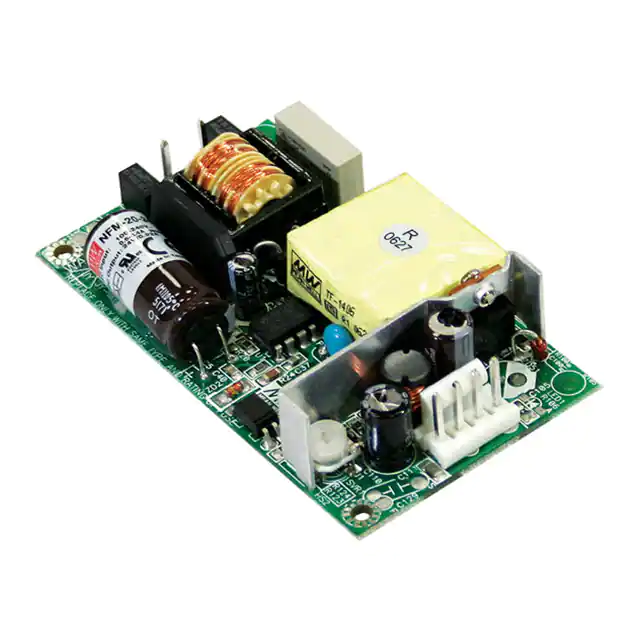

NFM-20-12AC/DC CONVERTER 12V 22W MEAN WELL USA Inc. |
0 |
|
规格书 |
NFM-20 (20W) | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 1.8 A | - | - | - | - | - | 22W | Medical | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.76" H (89.0mm x 51.0mm x 19.3mm) |
|
|
NFM-20-15AC/DC CONVERTER 15V 21W MEAN WELL USA Inc. |
0 |
|
规格书 |
NFM-20 (20W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 1.4 A | - | - | - | - | - | 21W | Medical | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.76" H (89.0mm x 51.0mm x 19.3mm) |
|
|
NFM-20-24AC/DC CONVERTER 24V 22W MEAN WELL USA Inc. |
0 |
|
规格书 |
NFM-20 (20W) | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 920 mA | - | - | - | - | - | 22W | Medical | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.76" H (89.0mm x 51.0mm x 19.3mm) |
|
|
NFM-20-3.3AC/DC CONVERTER 3.3V 15W MEAN WELL USA Inc. |
0 |
|
规格书 |
NFM-20 (20W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 3.3V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 15W | Medical | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.76" H (89.0mm x 51.0mm x 19.3mm) |
|
|
NFM-20-5AC/DC CONVERTER 5V 22W MEAN WELL USA Inc. |
0 |
|
规格书 |
NFM-20 (20W) | Tray | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 22W | Medical | 4 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.76" H (89.0mm x 51.0mm x 19.3mm) |
|

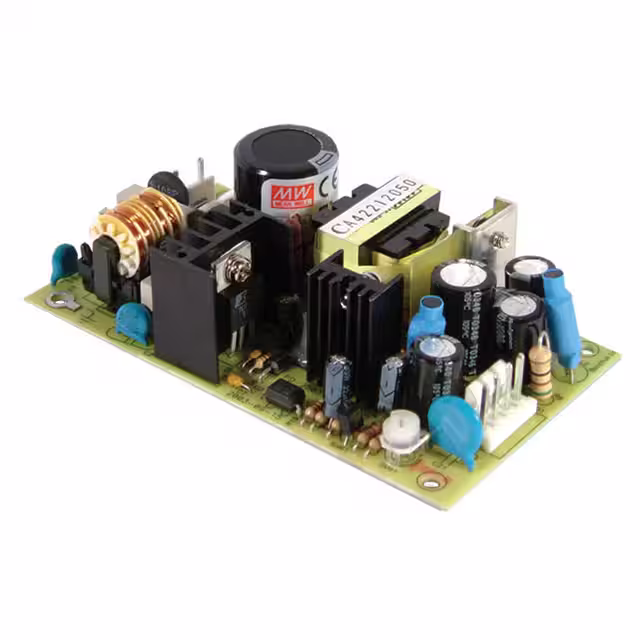

PD-2503AC/DC CONVERTER 5V 3.3V 25W MEAN WELL USA Inc. |
0 |
|
规格书 |
PD-2503 (25W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | 3.3V | - | - | - | - | 3 A | 3 A | - | - | - | - | 25W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.21" L x 2.40" W x 1.10" H (107.0mm x 61.0mm x 28.0mm) |
