交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PPS-200-24AC/DC CONVERTER 24V 150W MEAN WELL USA Inc. |
0 |
|
规格书 |
PPS-200 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W (199W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm) |
|
|
PPS-200-27AC/DC CONVERTER 27V 150W MEAN WELL USA Inc. |
0 |
|
规格书 |
PPS-200 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 27V | - | - | - | - | - | 5.56 A | - | - | - | - | - | 150W (200W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm) |
|
|
PPS-200-48AC/DC CONVERTER 48V 150W MEAN WELL USA Inc. |
0 |
|
规格书 |
PPS-200 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 3.13 A | - | - | - | - | - | 150W (200W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm) |
|
|
PPS-200-5AC/DC CONVERTER 5V 130W MEAN WELL USA Inc. |
0 |
|
规格书 |
PPS-200 (200W) | Box | Obsolete | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 26 A | - | - | - | - | - | 130W (180W Forced Air) | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm) |
|

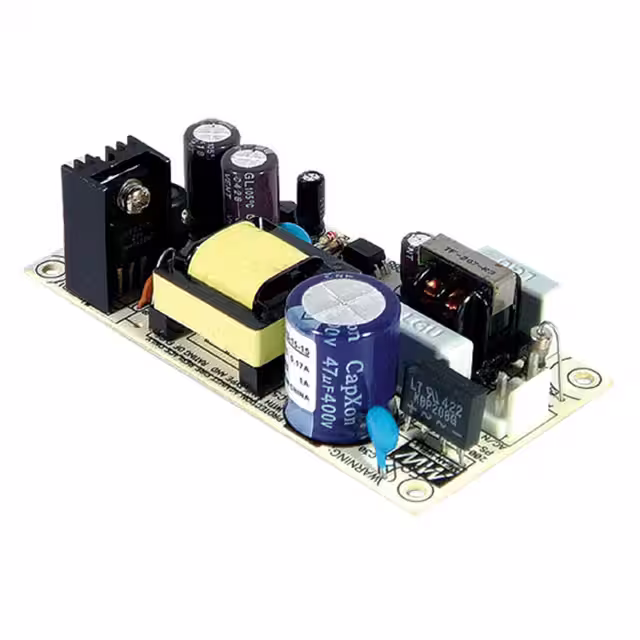

PS-15-12AC/DC CONVERTER 12V 15W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-15 (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.70" L x 1.93" W x 0.98" H (94.0mm x 49.0mm x 25.0mm) |
|
|
PS-15-15AC/DC CONVERTER 15V 15W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-15 (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.70" L x 1.93" W x 0.98" H (94.0mm x 49.0mm x 25.0mm) |
|
|
PS-15-24AC/DC CONVERTER 24V 15W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-15 (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 625 mA | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.70" L x 1.93" W x 0.98" H (94.0mm x 49.0mm x 25.0mm) |
|
|
PS-15-48AC/DC CONVERTER 48V 15W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-15 (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 313 mA | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.70" L x 1.93" W x 0.98" H (94.0mm x 49.0mm x 25.0mm) |
|
|
PS-15-5AC/DC CONVERTER 5V 14W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-15 (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 14W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.70" L x 1.93" W x 0.98" H (94.0mm x 49.0mm x 25.0mm) |
|
PS-25-12AC/DC CONVERTER 12V 25W MEAN WELL USA Inc. |
0 |
|
规格书 |
PS-25 (25W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Universal Input | Chassis Mount | 4.21" L x 2.40" W x 1.10" H (107.0mm x 61.0mm x 28.0mm) |
