步进电机
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

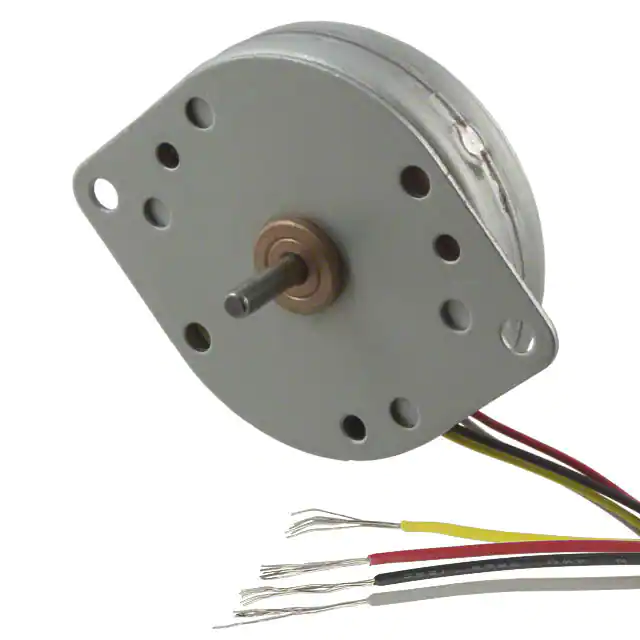

44M100D2BSTEPPER MOTOR PM BIPOLAR 12V Portescap |
0 |
|
规格书 |
44M | Bulk | Active | Permanent Magnet | Bipolar | 12VDC | - | 100.0 | 3.6° | ±11% | 6.6 / 46.6 | Round - 1.732" Dia (44.00mm) | - | 0.118" (3.00mm) | 0.450" (11.43mm) | 1.950" (49.48mm) | Wire Leads | 0°C ~ 60°C | 70 Ohms | Round Shaft |
|

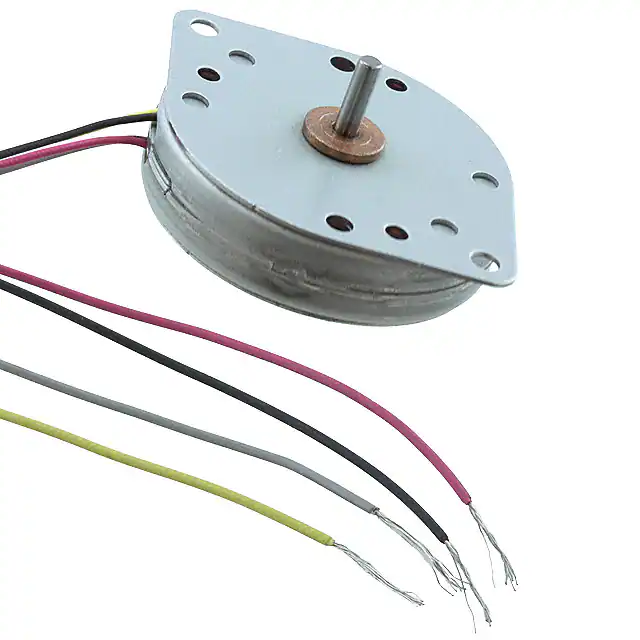

44M100D1BSTEPPER MOTOR PM BIPOLAR 5V Portescap |
0 |
|
规格书 |
44M | Bulk | Active | Permanent Magnet | Bipolar | 5VDC | - | 100.0 | 3.6° | ±11% | 5.5 / 38.8 | Round - 1.732" Dia (44.00mm) | - | 0.118" (3.00mm) | 0.450" (11.43mm) | 1.950" (49.48mm) | Wire Leads | 0°C ~ 60°C | 12.5 Ohms | Round Shaft |
|

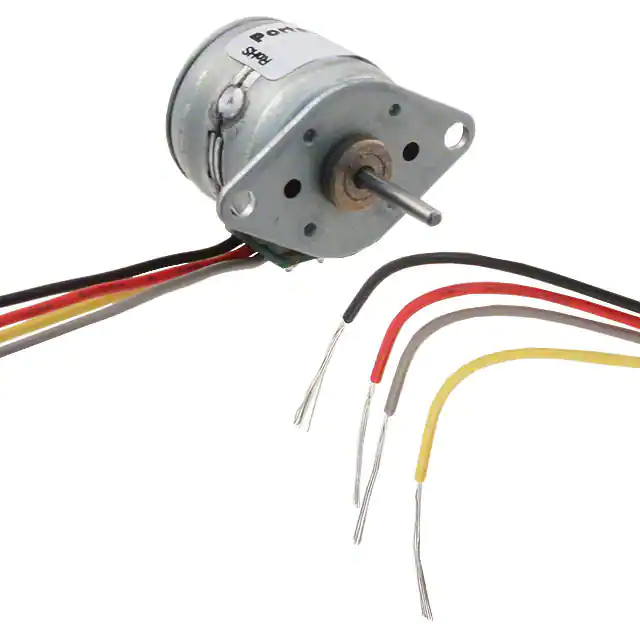

15M020D1B-NSTEPPER MOTOR PM BIPOLAR 5V Portescap |
0 |
|
规格书 |
15M | Bulk | Active | Permanent Magnet | Bipolar | 5VDC | 125 mA | 20.0 | 18° | - | 0.55 / 3.9 | Round - 0.610" Dia (15.50mm) | - | 0.059" (1.50mm) | 0.394" (10.00mm) | 0.787" (20.00mm) | Wire Leads | -20°C ~ 70°C | 40 Ohms | Round Shaft |
|

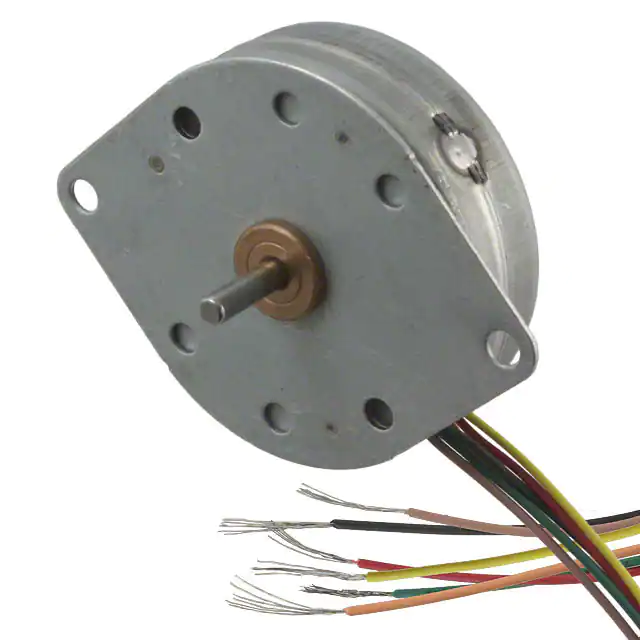

42S048D2USTEPPER MOTOR PM UNIPOLAR 12V Portescap |
0 |
|
规格书 |
42S | Bulk | Active | Permanent Magnet | Unipolar | 12VDC | 160 mA | 48.0 | 7.5° | ±15% | 6.3 / 44.5 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | 0.450" (11.43mm) | 1.950" (49.48mm) | Wire Leads | -20°C ~ 70°C | 75 Ohms | Round Shaft |
|

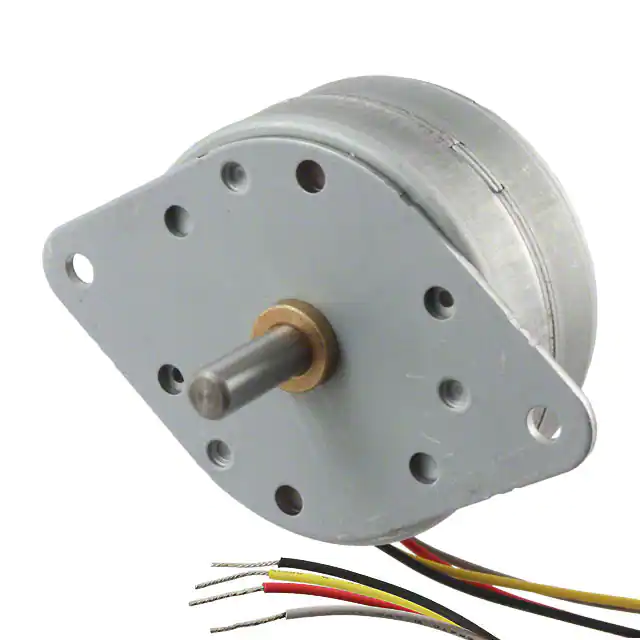

55M048D1BSTEPPER MOTOR PM BIPOLAR 5V Portescap |
0 |
|
规格书 |
55M | Bulk | Obsolete | Permanent Magnet | Bipolar | 5VDC | 960 mA | 48.0 | 7.5° | ±15% | 27.6 / 195 | Round - 2.170" Dia (55.12mm) | - | 0.250" (6.35mm) | 0.750" (19.05mm) | 2.630" (66.68mm) | Wire Leads | -20°C ~ 70°C | 5.2 Ohms | Round Shaft |
|

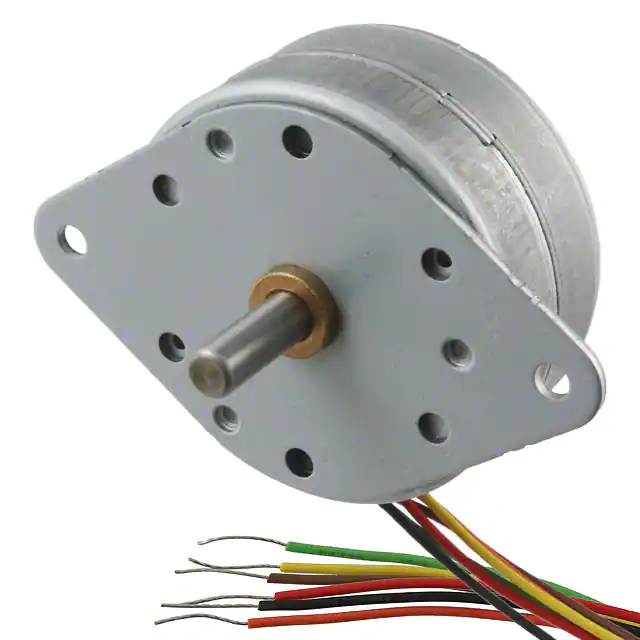

55M048D2USTEPPER MOTOR PM UNIPOLAR 12V Portescap |
0 |
|
规格书 |
55M | Bulk | Obsolete | Permanent Magnet | Unipolar | 12VDC | 400 mA | 48.0 | 7.5° | ±15% | 23 / 163 | Round - 2.170" Dia (55.12mm) | - | 0.250" (6.35mm) | 0.750" (19.05mm) | 2.630" (66.68mm) | Wire Leads | -20°C ~ 70°C | 30 Ohms | Round Shaft |
|

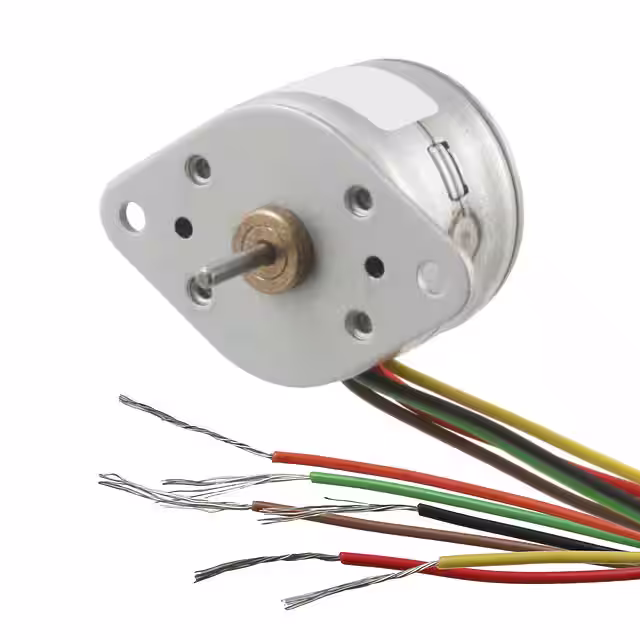

20M024D1USTEPPER MOTOR PM UNIPOLAR 5V Portescap |
0 |
|
- |
20M | Bulk | Active | Permanent Magnet | Unipolar | 5VDC | 250 mA | 24.0 | 15° | ±15% | 1.1 / 7.77 | Round - 0.807" Dia (20.50mm) | - | 0.059" (1.50mm) | 0.335" (8.50mm) | 0.984" (25.00mm) | Wire Leads | -20°C ~ 70°C | 20 Ohms | Round Shaft |
|
55M048D1USTEPPER MOTOR PM UNIPOLAR 5V Portescap |
0 |
|
规格书 |
55M | Bulk | Obsolete | Permanent Magnet | Unipolar | 5VDC | 960 mA | 48.0 | 7.5° | ±15% | 23 / 163 | Round - 2.170" Dia (55.12mm) | - | 0.250" (6.35mm) | 0.750" (19.05mm) | 2.630" (66.68mm) | Wire Leads | -20°C ~ 70°C | 5.2 Ohms | Round Shaft |
|
26M048B2U-V31STEPPER MOTOR PM GEARED UNI 12V Portescap |
0 |
|
规格书 |
26M-V | Bulk | Active | Permanent Magnet Gear Motor | Unipolar | 12VDC | 110 mA | 1440.0 | 0.25° | - | 1.3 / 9.2 | Round - 1.030" Dia (26.16mm) | - | 0.125" (3.18mm) | 0.432" (10.97mm) | 1.180" (29.87mm) | Wire Leads | -20°C ~ 70°C | 110 Ohms | Round Shaft |
|

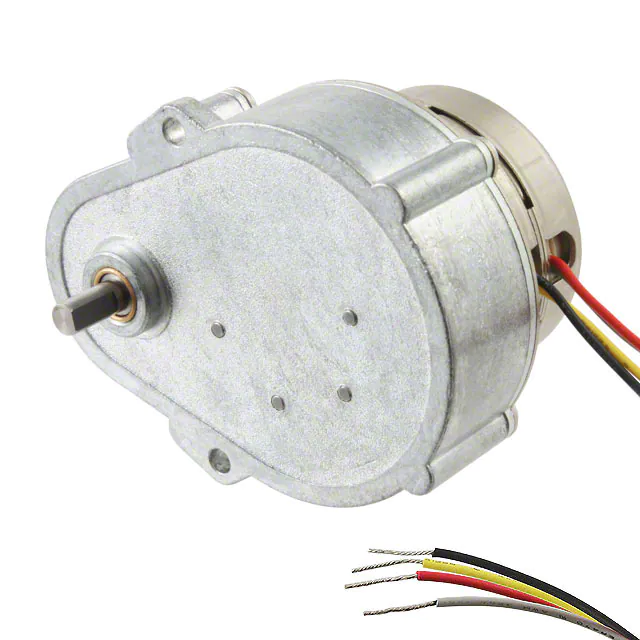

42M048C1B-Z36STEP MOTOR PM GEARED BIPOLAR 5V Portescap |
0 |
|
规格书 |
42M-Z | Bulk | Obsolete | Permanent Magnet Gear Motor | Bipolar | 5VDC | 550 mA | 2400.0 | 0.15° | - | 11.9 / 84 | Round - 1.650" Dia (42.00mm) | - | 0.188" (4.77mm) | 0.500" (12.70mm) | 1.880" (47.63mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms | Round Shaft |
