步进电机
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 线圈类型 | 额定电压 | 电流额定值（安培） | 每转步数 | 步进角度 | 精度 | 保持扭矩（oz-in / mNm） | 尺寸 / 尺寸 | NEMA 框架尺寸 | 轴直径 | 轴和轴承长度 | 安装孔间距 | 端接样式 | 工作温度 | 线圈电阻 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
26M048B2USTEPPER MOTOR PM UNIPOLAR 12V Portescap |
857 |
|
规格书 |
26M | Bulk | Active | Permanent Magnet | Unipolar | 12VDC | 110 mA | 48.0 | 7.5° | ±15% | 1.3 / 9.2 | Round - 1.030" Dia (26.16mm) | - | 0.079" (2.00mm) | 0.445" (11.30mm) | 1.370" (34.90mm) | Wire Leads | -20°C ~ 70°C | 110 Ohms | Round Shaft |
|

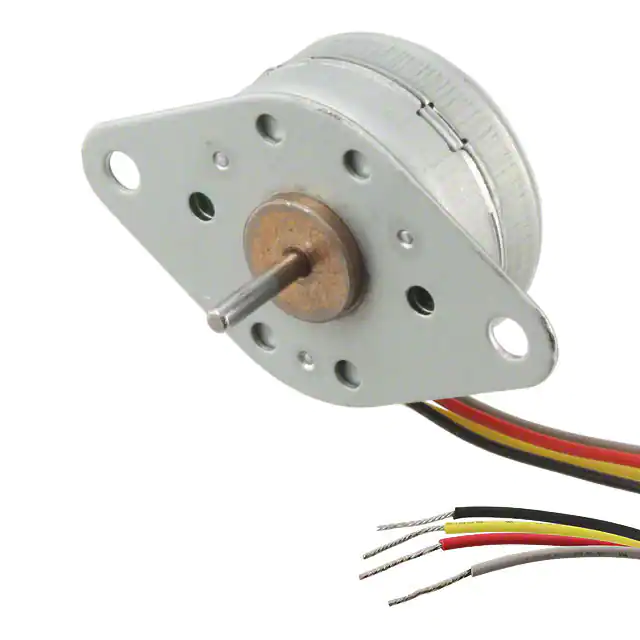

26M048B1BSTEPPER MOTOR PM BIPOLAR 5V Portescap |
258 |
|
规格书 |
26M | Bulk | Active | Permanent Magnet | Bipolar | 5VDC | 250 mA | 48.0 | 7.5° | ±15% | 1.5 / 10.6 | Round - 1.030" Dia (26.16mm) | - | 0.079" (2.00mm) | 0.445" (11.30mm) | 1.370" (34.90mm) | Wire Leads | -20°C ~ 70°C | 19.8 Ohms | Round Shaft |
|

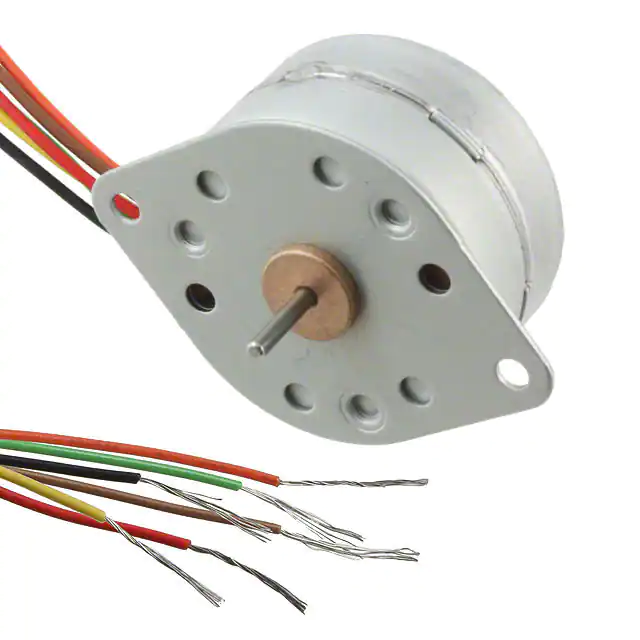

35L048B1USTEPPER MOTOR PM UNIPOLAR 5V Portescap |
111 |
|
规格书 |
35L | Bulk | Active | Permanent Magnet | Unipolar | 5VDC | 450 mA | 48.0 | 7.5° | ±15% | 3.5 / 25 | Round - 1.420" Dia (35.94mm) | - | 0.079" (2.00mm) | 0.445" (11.30mm) | 1.650" (42.00mm) | Wire Leads | -20°C ~ 70°C | 11 Ohms | Round Shaft |
|

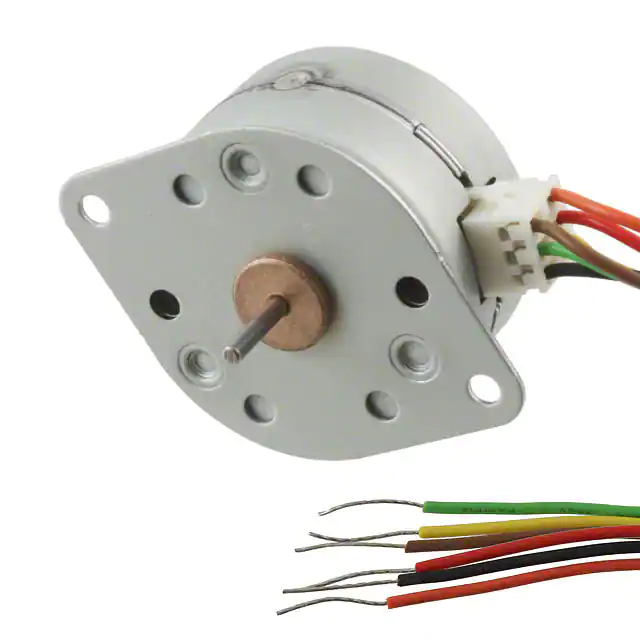

35L048B2USTEPPER MOTOR PM UNIPOLAR 12V Portescap |
107 |
|
规格书 |
35L | Bulk | Active | Permanent Magnet | Unipolar | 12VDC | 190 mA | 48.0 | 7.5° | ±15% | 3.5 / 25 | Round - 1.420" Dia (35.94mm) | - | 0.079" (2.00mm) | 0.445" (11.30mm) | 1.650" (42.00mm) | Wire Leads | -20°C ~ 70°C | 64 Ohms | Round Shaft |
|

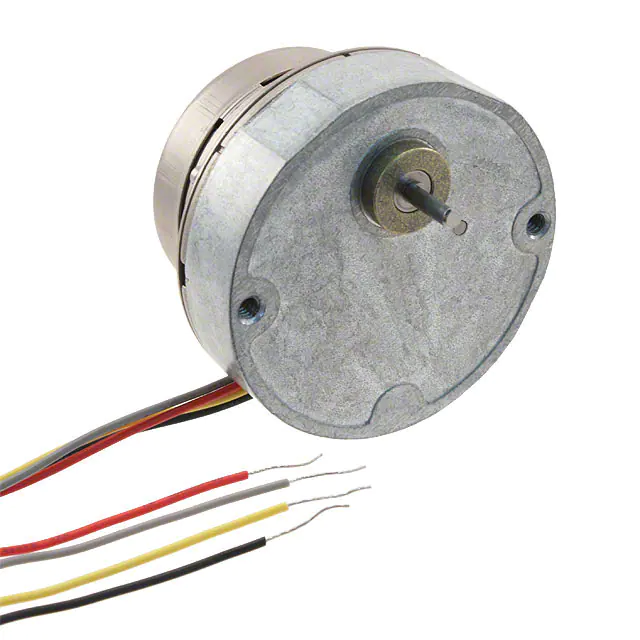

42M048C2B-R21STEP MOTOR PM GEARED BIPOLAR 12V Portescap |
161 |
|
规格书 |
42M-R | Bulk | Active | Permanent Magnet Gear Motor | Bipolar | 12VDC | 550 mA | 480.0 | 0.75° | - | 11.9 / 84 | Round - 1.650" Dia (42.00mm) | - | 0.093" (2.36mm) | 0.469" (11.92mm) | 1.880" (47.63mm) | Wire Leads | -20°C ~ 70°C | 9.1 Ohms | Round Shaft |
|
42M048C2USTEPPER MOTOR PM UNIPOLAR 12V Portescap |
57 |
|
规格书 |
42M | Bulk | Active | Permanent Magnet | Unipolar | 12VDC | 230 mA | 48.0 | 7.5° | ±6.66% | 9.4 / 66.2 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | 0.450" (11.43mm) | 1.950" (49.48mm) | Wire Leads | -20°C ~ 70°C | 52.4 Ohms | Round Shaft |
|
|
20M020D1USTEPPER MOTOR PM UNIPOLAR 5V Portescap |
59 |
|
规格书 |
20M | Bulk | Active | Permanent Magnet | Unipolar | 5VDC | 100 mA | 20.0 | 18° | ±12% | 1.1 / 7.77 | Round - 0.807" Dia (20.50mm) | - | 0.059" (1.50mm) | 0.335" (8.50mm) | 0.984" (25.00mm) | Wire Leads | -20°C ~ 70°C | 115.2 Ohms | Round Shaft |
|

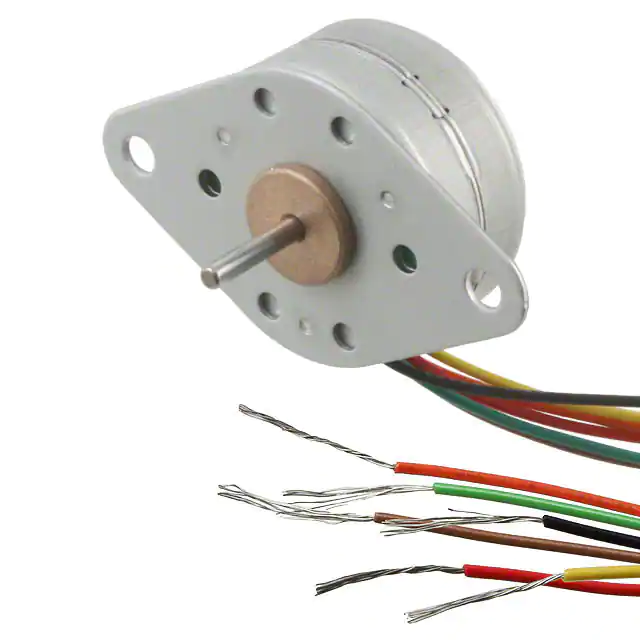

26M024D1USTEPPER MOTOR PM UNIPOLAR 5V Portescap |
37 |
|
规格书 |
26M | Bulk | Active | Permanent Magnet | Unipolar | 5VDC | 260 mA | 24.0 | 15° | ±15% | 1.35 / 9.5 | Round - 1.030" Dia (26.16mm) | - | 0.079" (2.00mm) | 0.445" (11.30mm) | 1.370" (34.90mm) | Wire Leads | -20°C ~ 70°C | 19.6 Ohms | Round Shaft |
|

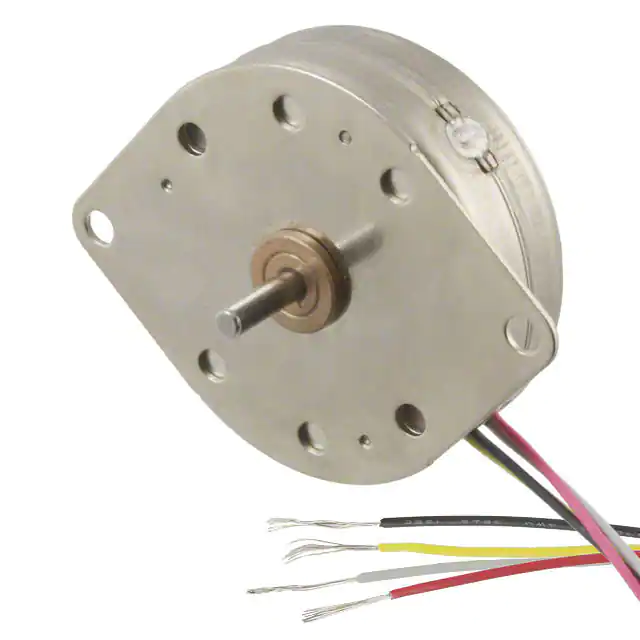

42M100B1BSTEPPER MOTOR PM BIPOLAR 5V Portescap |
92 |
|
- |
42M | Bulk | Active | Permanent Magnet | Bipolar | 5VDC | 400 mA | 100.0 | 3.6° | ±11% | 7 / 49.4 | Round - 1.650" Dia (42.00mm) | - | 0.118" (3.00mm) | 0.450" (11.43mm) | 1.950" (49.48mm) | Wire Leads | -20°C ~ 70°C | 12.5 Ohms | Round Shaft |
|
35M048B2USTEPPER MOTOR PM UNIPOLAR 12V Portescap |
8 |
|
规格书 |
35M | Bulk | Active | Permanent Magnet | Unipolar | 12VDC | 170 mA | 48.0 | 7.5° | ±15% | 2.6 / 18.35 | Round - 1.420" Dia (35.94mm) | - | 0.079" (2.00mm) | 0.445" (11.30mm) | 1.650" (42.00mm) | Wire Leads | -20°C ~ 70°C | 72 Ohms | Round Shaft |
