信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AGN210A12ZRELAY TELECOM DPDT 1A 12V |
2,161 |
|
规格书 |
AGN | Tape & Reel (TR) | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|

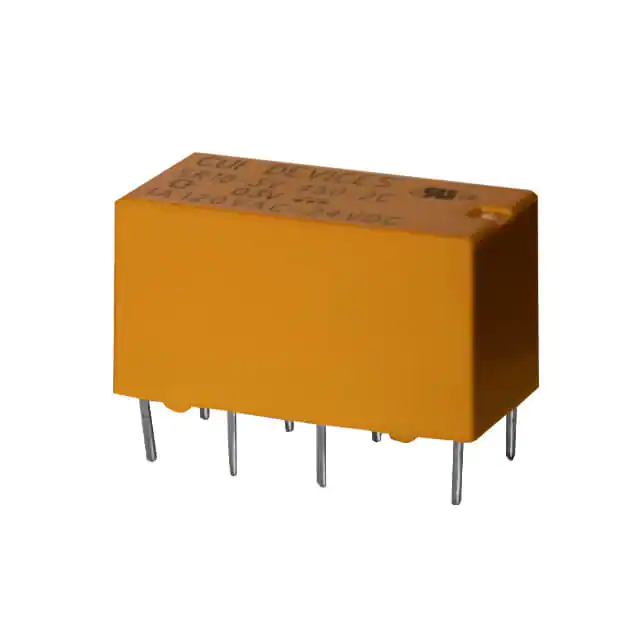

SR10-3V-450-2CRELAY GENERAL PURPOSE DPDT 1A 3V |
996 |
|
规格书 |
SR10 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 150 mA | Non Latching | - | PC Pin | - | - | 2.25 VDC | 0.3 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR10-9V-450-2CRELAY GENERAL PURPOSE DPDT 1A 9V |
990 |
|
规格书 |
SR10 | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 50 mA | Non Latching | - | PC Pin | - | - | 6.75 VDC | 0.9 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR10-5V-450-2CRELAY GENERAL PURPOSE DPDT 1A 5V |
928 |
|
规格书 |
SR10 | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 89.9 mA | Non Latching | - | PC Pin | - | - | 3.75 VDC | 0.5 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
SR3-24V-175-1CRELAY GEN PURPOSE SPDT 1A 24V |
966 |
|
规格书 |
SR3 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 7.3 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR10-24V-450-2CRELAY GEN PURPOSE DPDT 1A 24V |
880 |
|
规格书 |
SR10 | Tube | Active | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 18.8 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 7 ms | 3 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
J850SM2CS3VDCRELAY GENERAL PURPOSE DPDT 1A 3V |
500 |
|
规格书 |
J850SM | Tape & Reel (TR) | Active | Surface Mount | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | Gull Wing | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 2 ms | 1 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
J8502CS3VDCRELAY GENERAL PURPOSE DPDT 1A 3V |
322 |
|
规格书 |
J850 | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 250VAC, 220VDC - Max | 250VA, 220W | 46.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
G5V-1-2 DC9RELAY GENERAL PURPOSE SPDT 1A 9V |
258 |
|
规格书 |
G5V-1 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
EE2-4.5TNURELAY GEN PURPOSE DPDT 2A 4.5V |
3,250 |
|
规格书 |
EE2 | Tube | Active | Surface Mount | 4.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 31.1 mA | Latching, Dual Coil | - | Gull Wing | - | - | 3.38 VDC | - | 2 ms | 1 ms | -40°C ~ 85°C | Silver Alloy, Gold Alloy | General Purpose | - | - |
|
G6S-2 DC9RELAY TELECOM DPDT 2A 9V |
1,472 |
|
规格书 |
G6S | Tube | Active | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 15.6 mA | Non Latching | - | PC Pin | - | - | 6.75 VDC | 0.9 VDC | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TX2SA-L-12VRELAY TELECOM DPDT 2A 12V |
972 |
|
规格书 |
TX | Tube | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 8.3 mA | Latching, Single Coil | - | Gull Wing | Sealed - Fully | - | 9 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
SR2-9V-330-1CRELAY GENERAL PURPOSE SPDT 1A 9V |
995 |
|
规格书 |
SR2 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 36.7 mA | Non Latching | - | PC Pin | - | - | 6.3 VDC | 0.9 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
SR1-9V-450-1CRELAY GENERAL PURPOSE SPDT 1A 9V |
993 |
|
规格书 |
SR1 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 50 mA | Non Latching | - | PC Pin | - | - | 6.3 VDC | 0.9 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR2-3V-330-1CRELAY GENERAL PURPOSE SPDT 1A 3V |
990 |
|
规格书 |
SR2 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 107.1 mA | Non Latching | - | PC Pin | - | - | 2.1 VDC | 0.3 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR1-3V-450-1CRELAY GENERAL PURPOSE SPDT 1A 3V |
981 |
|
规格书 |
SR1 | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 150 mA | Non Latching | - | PC Pin | - | - | 2.1 VDC | 0.3 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR2-12V-330-1CRELAY GEN PURPOSE SPDT 1A 12V |
973 |
|
规格书 |
SR2 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 27.3 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR1-5V-450-1CRELAY GENERAL PURPOSE SPDT 1A 5V |
942 |
|
规格书 |
SR1 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 90.9 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR2-5V-330-1CRELAY GENERAL PURPOSE SPDT 1A 5V |
893 |
|
规格书 |
SR2 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 66.7 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 6 ms | 4 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TX2-L2-1.5VRELAY TELECOM DPDT 2A 1.5V |
991 |
|
规格书 |
TX | Tube | Active | Through Hole | 1.5VDC | DPDT (2 Form C) | 2 A | 220VDC - Max | 440VA | 134 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 1.13 VDC | - | 4 ms | 4 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | Telecom | - | - |
