信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6EK-134P-ST-US DC12RELAY GEN PURPOSE SPDT 2A 12V |
3,745 |
|
规格书 |
G6E | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
G6A-274P-ST-US DC3RELAY GENERAL PURPOSE DPDT 2A 3V |
1,058 |
|
规格书 |
G6A | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Non Latching | - | PC Pin | - | - | 2.1 VDC | 0.3 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6B-1184P-US DC12RELAY GEN PURPOSE SPST 2A 12V |
368 |
|
规格书 |
G6B | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 2 A | 380VAC, 125VDC - Max | 760VA, 250W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
DS1E-SL2-DC3VRELAY GENERAL PURPOSE SPDT 2A 3V |
5,104 |
|
规格书 |
DS | Box | Active | Through Hole | 3VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 60 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.4 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6AK-274P-STLT-US DC12RELAY GEN PURPOSE DPDT 2A 12V |
349 |
|
规格书 |
G6A | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | - | Latching, Dual Coil | - | PC Pin | - | - | 8.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6EK-134P-ST-US DC3RELAY GENERAL PURPOSE SPDT 2A 3V |
968 |
|
规格书 |
G6E | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.1 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6EK-134P-ST-US DC24RELAY GEN PURPOSE SPDT 2A 24V |
261 |
|
规格书 |
G6E | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6E-134P-ST-US DC48RELAY GEN PURPOSE SPDT 2A 48V |
490 |
|
规格书 |
G6E | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 33.6 VDC | 4.8 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6AK-274P-ST-US DC3RELAY GENERAL PURPOSE DPDT 2A 3V |
700 |
|
规格书 |
G6A | Tube | Active | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.1 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
G6AK-274P-ST40-US DC5RELAY GENERAL PURPOSE DPDT 2A 5V |
943 |
|
规格书 |
G6A | Tube | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 72.5 mA | Latching, Dual Coil | - | PC Pin | - | - | 3.5 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

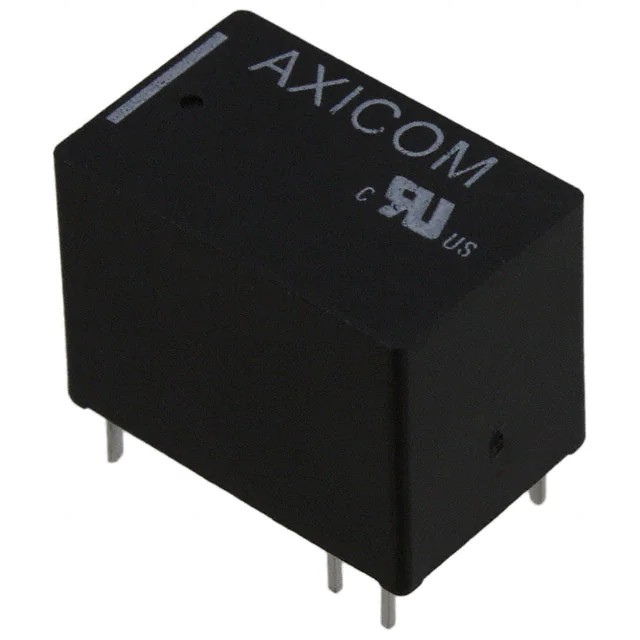

V23101D 103A201RELAY GEN PURPOSE SPDT 1.25A 5V |
623 |
|
规格书 |
V23101, AXICOM | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1.25 A | 125VAC, 120VDC - Max | 62.5VA, 30W | 41.6 mA | Non Latching | - | PC Pin | - | - | 3.8 VDC | 0.5 VDC | 7 ms | 5 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|

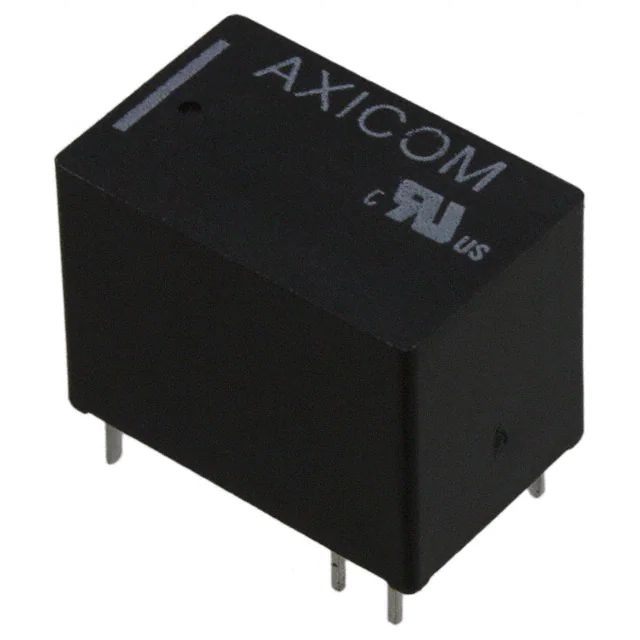

V23101D 7B201RELAY GEN PURPOSE SPDT 1.25A 24V |
1,205 |
|
规格书 |
V23101, AXICOM | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1.25 A | 125VAC, 120VDC - Max | 62.5VA, 30W | 18.8 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
V23101D 107B201RELAY GEN PURPOSE SPDT 1.25A 24V |
462 |
|
规格书 |
V23101, AXICOM | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 1.25 A | 125VAC, 120VDC - Max | 62.5VA, 30W | 8.6 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 7 ms | 5 ms | -40°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
JMAC-26XMRELAY GEN PURPOSE DPDT 1A 26.5V |
31 |
|
规格书 |
MA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
JMAC-26XPRELAY GEN PURPOSE DPDT 1A 26.5V |
4 |
|
规格书 |
MA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
JMSCD-26XPRELAY GEN PURPOSE DPDT 1A 26.5V |
46 |
|
规格书 |
MSD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/16 |
|
3SBC2002A2RELAY GEN PURPOSE DPDT 2A 26.5V |
1 |
|
规格书 |
3SBC, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 19.6 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/13 |
|
SR7-9V-200-1CRELAY GENERAL PURPOSE SPDT 1A 9V |
927 |
|
规格书 |
SR7 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 120VAC, 24VDC - Max | 120VA, 24W | 22.2 mA | Non Latching | - | PC Pin | - | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
SR3-9V-150-1CRELAY GENERAL PURPOSE SPDT 1A 9V |
962 |
|
规格书 |
SR3 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 16.7 mA | Non Latching | - | PC Pin | - | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
SR3-12V-150-1CRELAY GEN PURPOSE SPDT 1A 12V |
614 |
|
规格书 |
SR3 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 12.5 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
