信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HFW1201L01RELAY GENERAL PURPOSE DPDT 2A 5V |
0 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | - | - | 185.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.29 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
JMAW-6XMRELAY GENERAL PURPOSE DPDT 1A 6V |
0 |
|
- |
MA, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 61.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.28 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
|
JMAW-12XMRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
MA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
|
JMAP-12XMRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
MA, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMAC-30XMRELAY GEN PURPOSE DPDT 1A 30V |
0 |
|
- |
MAC | Bulk | Active | Through Hole | 30VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 17.7 VDC | 1.5 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617123-2RELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
规格书 |
MA, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
|
2-1617542-3RELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
规格书 |
MA, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
2-1617542-9RELAY GENERAL PURPOSE DPDT 1A 9V |
0 |
|
规格书 |
MA, CII | Bulk | Active | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 40.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.3 VDC | 0.54 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1-1617125-0RELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
规格书 |
MA, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
|
1617351-3RELAY GENERAL PURPOSE DPDT 1A 9V |
0 |
|
规格书 |
MAT, CII | Bulk | Active | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 40.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 5.3 VDC | 0.54 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
HFW1201F02RELAY GENERAL PURPOSE DPDT 2A 6V |
0 |
|
- |
HFW, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | - | - | 150 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.2 VDC | 0.35 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
8-1617536-3RELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
3-1617029-5RELAY GENERAL PURPOSE DPDT 26.5V |
0 |
|
规格书 |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | - | - | - | 37.9 mA | Non Latching | - | Solder Hook | - | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|

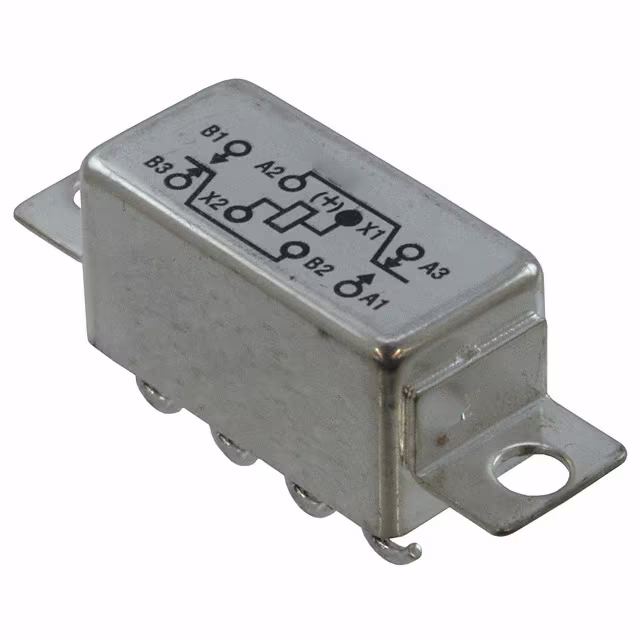

HFW1130K06RELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
规格书 |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
|
|
HFW1231K05MRELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
规格书 |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | - | - | 37.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HM1-12BRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
HM, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | - | - | 30.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 8.4 VDC | - | 4 ms | 3 ms | -55°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
6-1617543-0RELAY GENERAL PURPOSE DPDT 1A 6V |
0 |
|
规格书 |
MST, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.4 VDC | 0.28 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
HFW1201L01MRELAY GENERAL PURPOSE DPDT 2A 5V |
0 |
|
- |
HFW, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | - | - | 185.2 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.29 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
JMSC-5XLRELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
|
HFW1130K07MRELAY GEN PURPOSE DPDT 2A 26.5V |
0 |
|
- |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 2 A | 28VDC - Nom | - | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/6 |
