信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JMACG-26XMSRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
- |
MAC | Bulk | Discontinued at Digi-Key | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|

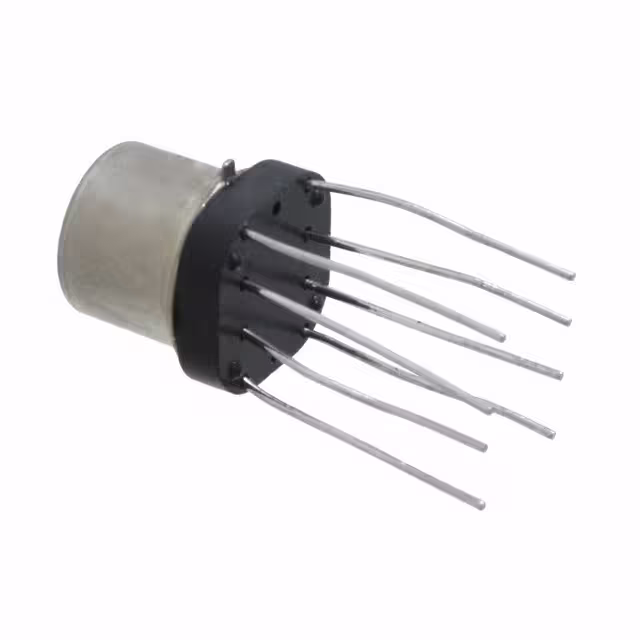

JMAC-26XMSRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
- |
MA, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
|
PRMSCDG-26XRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
规格书 |
MS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 8 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMGSC-12MRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
规格书 |
MGS, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 15 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/41 |
|
JMAWD-26XMRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
规格书 |
MAD, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/15 |
|
|
3-1617030-0RELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
2-1617029-5RELAY GENERAL PURPOSE DPDT 2A 6V |
0 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 150 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 3.2 VDC | 0.35 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617343-5RELAY GEN PURPOSE DPDT 2A 12V |
0 |
|
规格书 |
HFW, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 115VAC, 28VDC - Max | 230VA, 56W | 75 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.4 VDC | 0.7 VDC | 4 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | - | - |
|
|
JMACD-18XLRELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
规格书 |
MAC | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMAWD-12XLRELAY GEN PURPOSE DPDT 1A 12V |
0 |
|
- |
MAD, CII | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/15 |
|
|
HFW1131F01MRELAY GEN PURPOSE DPDT 2A 6V |
0 |
|
规格书 |
HFW, CII | Bulk | Active | Chassis Mount | 6VDC | DPDT (2 Form C) | 2 A | - | - | 150 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1617126-7RELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
规格书 |
MAD, CII | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/15 |
|
|
JMAC-26XLSRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
- |
MAC | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 17 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMSP-26XMRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
- |
MS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
|
|
2964458RELAY GEN PURPOSE SPDT 5MA 120V |
0 |
|
规格书 |
EMG 10-REL | Bulk | Obsolete | DIN Rail | 120VAC/DC | SPDT (1 Form C) | 5 mA | 125VAC, 150VDC - Max | - | 5 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 7 ms | 11 ms | -20°C ~ 40°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
HFW1201F01MRELAY GENERAL PURPOSE DPDT 2A 6V |
0 |
|
- |
HFW, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | - | - | 150 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.2 VDC | 0.35 VDC | 4 ms | 4 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
JMGACD-6MRELAY GENERAL PURPOSE DPDT 1A 6V |
0 |
|
- |
MGAD, CII | Bulk | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 61.2 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.5 VDC | 0.28 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|
|
MGSC-26WRELAY GEN PURPOSE DPDT 1A 26.5V |
0 |
|
- |
MGS, CII | Bulk | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 8.3 mA | Non Latching | - | PC Pin | - | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
JMAC-5XLRELAY GENERAL PURPOSE DPDT 1A 5V |
0 |
|
- |
MAC | Bulk | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
1617122-7RELAY GEN PURPOSE DPDT 1A 18V |
0 |
|
规格书 |
MAD, CII | Bulk | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 20.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 4 ms | -65°C ~ 125°C | - | General Purpose | Military | MIL-R-39016/15 |
