上传BOM
射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WPC.25B.35RF ANT 2.4GHZ CER PTCH MMCX 25MM Taoglas Limited |
1 |
|
规格书 |
- | Tray | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | 2 | -7dB | 2dBi | - | - | MMCX Female | - | - | - | Adhesive | 0.209" (5.30mm) | Bluetooth, Wi-Fi, Zigbee™ |
|

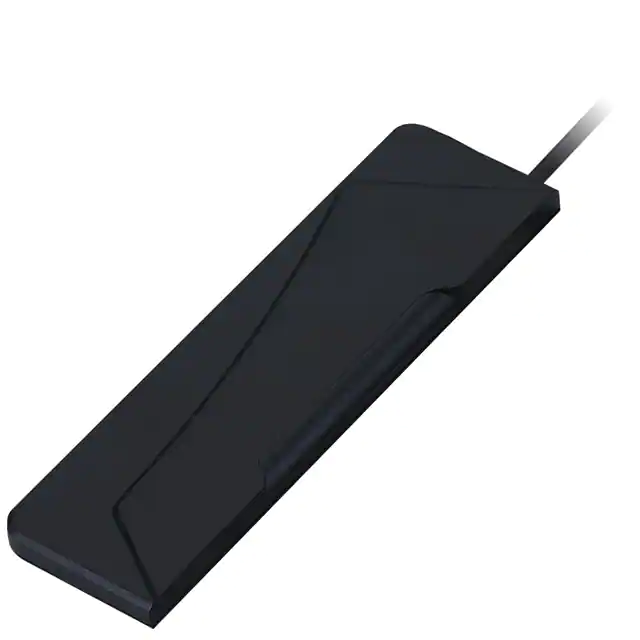

GSA.8827R.A.101111RF ANT 750MHZ/850MHZ FLAT BAR Taoglas Limited |
0 |
|
规格书 |
- | Bag | Active | Cellular, Navigation, WiFi | Wide Band | 750MHz, 850MHz, 900MHz, 1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.6GHz | 703MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Flat Bar | 8 | - | - | 3.42dBi, 2.38dBi, 1.47dBi, 1.28dBi, 2.16dBi, 1.86dBi, 1.74dBi | 50 W | Cable - 1m | SMA Male | IP65 | - | - | Adhesive | 0.303" (7.70mm) | CDMA, DCS, EDGE, GPRS, GPS, GSM, HSDPA, LTE, PCS, UMTS, WCDMA, Wi-Fi |
|
AGVLB.25B.07.0060AGPS/GLONASS/BEIDOU/IRNSS L1 + L5 Taoglas Limited |
0 |
|
规格书 |
- | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.561GHz, 1.575GHz, 1.601GHz | 1.166GHz ~ 1.186GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz | Ceramic Patch | 4 | - | - | 2.31dBi, 2.94dBi, 2.87dBi, 3.08dBi | - | Cable - 60mm, LNA, Filter | I-PEX MHFI (U.FL) | - | - | - | Surface Mount | 0.469" (11.90mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|

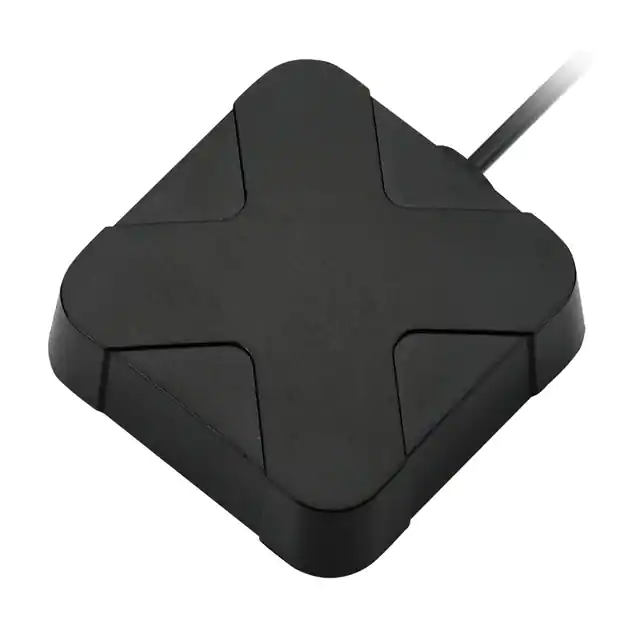

AA.171.301111RF ANT 1.561/1.575GHZ CER PATCH Taoglas Limited |
0 |
|
规格书 |
MagmaX | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.559GHz ~ 1.61GHz | Ceramic Patch | 3 | 2 | - | 4.16dBi, 2.06dBi, 1.43dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP65 | - | - | Magnetic | 0.673" (17.10mm) | Beidou, GLONASS, GPS |
|

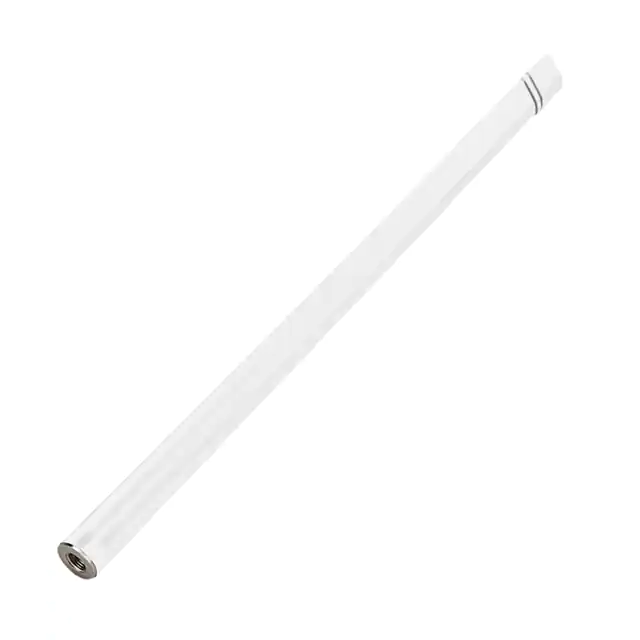

GW.22.5151W5DBI 2.4GHZ DIPOLE ANTENNA RP-SM Taoglas Limited |
0 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz, 2.45GHz, 2.5GHz | - | Whip, Straight | 3 | - | -10dB | 4.64dBi | 10 W | - | RP-SMA Male | IP67 | - | - | Connector Mount | 9.252" (235.00mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

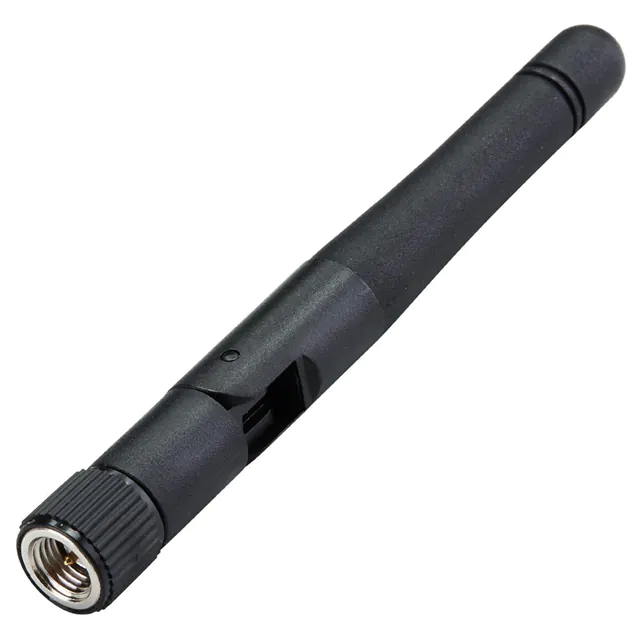

GW.11.A1132.4GHZ 2.3DBI SCREW MOUNT DIPOLE Taoglas Limited |
10 |
|
规格书 |
- | Bag | Active | 802.15.4, Cellular, General ISM, WiFi | Wide Band | 2.4GHz | - | Whip, Tilt | 1 | - | -10dB | 2.3dBi | 1 W | - | SMA Male | - | - | - | Connector Mount | 3.323" (84.40mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|

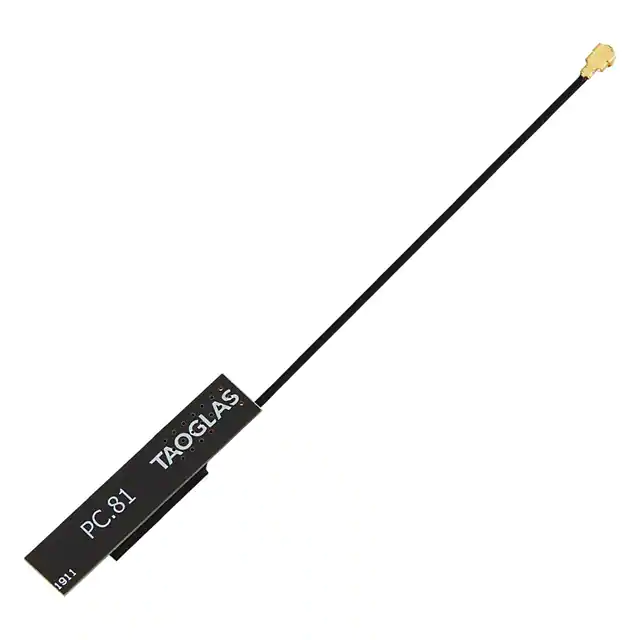

PC81.07.0100A.DBRF ANT 869MHZ PCB TRACE IPEXI Taoglas Limited |
0 |
|
规格书 |
TheStripe™ | Bag | Active | - | UHF (300MHz ~ 1GHz) | 869MHz | 868MHz ~ 870MHz | PCB Trace | 1 | 2 | -10dB | - | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.307" (7.80mm) | - |
|

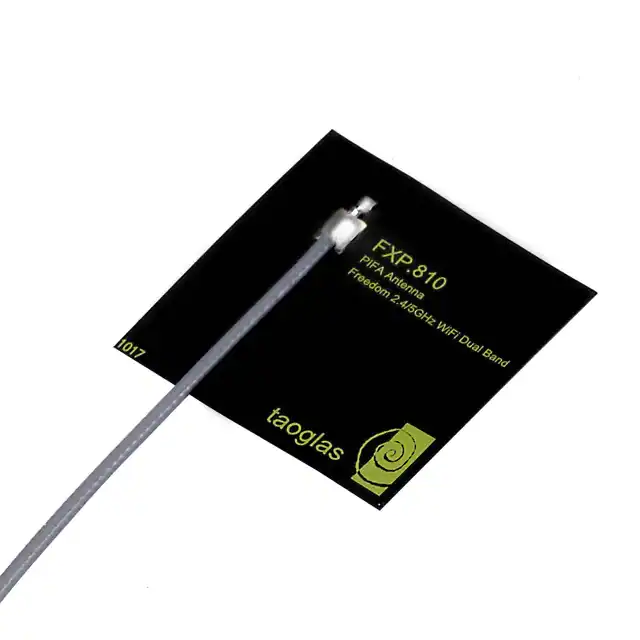

FXP810.09.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH Taoglas Limited |
0 |
|
规格书 |
Freedom | Bag | Not For New Designs | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | 1.7 | - | 2.4dBi, 5.1dBi | 2 W | Cable - 100mm | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|
ISMP.915.35.6.A.02ISM 915MHZ PATCH ANTENNA (35*35* Taoglas Limited |
0 |
|
规格书 |
- | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | - | Ceramic Patch | 1 | - | -10dB | 2.51dBi | - | - | Pin | - | - | - | Adhesive | 0.236" (6.00mm) | ISM, LoRa, Sigfox |
|

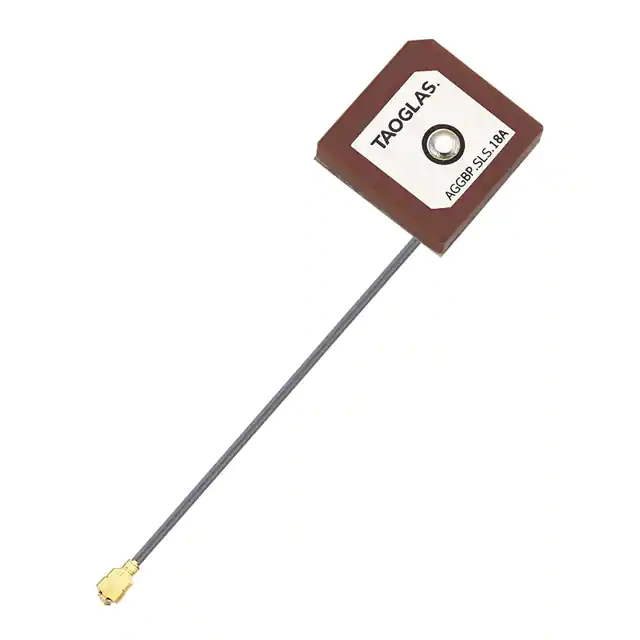

AGGBP.SLS.18A.07.0060A5.9GHZ DSRC / C-V2X PATCH ANTENN Taoglas Limited |
0 |
|
规格书 |
- | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | - | Ceramic Patch | 3 | - | - | 1dBi, 1.38dBi, 1.15dBi | - | Cable - 60mm, LNA, Filter | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.337" (8.57mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
