射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS.125.0111DIRECT SMA(M) MOUNT GNSS ANTENNA Taoglas Limited |
18 |
|
规格书 |
Accura | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.201GHz, 1.227GHz, 1.248GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Module | 8 | 1 | - | -0.35dBic, -0.24dBic, -0.32dBic, -0.39dBic, 0.75dBic, 0.86dBic, 0.86dBic, 0.45dBic | - | LNA, Filter | SMA Male | IP67 | - | - | Direct Mount | 2.303" (58.50mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
XAHP.30.A.1L21ACTIVE MULTI-BAND GNSS ANTENNA W Taoglas Limited |
19 |
|
规格书 |
Neptune | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.201GHz, 1.227GHz, 1.248GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Dome | 8 | 1 | - | 1.6dBi, 3.3dBi, 3.5dBi, 2.3dBi, 3.8dBi, 4.2dBi, 3.9dBi, 2.6dBi | - | Cable - 5m, LNA, Filter | BNC Female, SMA Male | IP67 | - | - | Pole Mount | 2.441" (62.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
MA1559.AK.0019IN1 MULTIBAND GNSS 5G/4G Taoglas Limited |
7 |
|
规格书 |
- | Box | Active | Cellular, Navigation | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.176GHz, 1.227GHz, 1.278GHz, 1.472GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 4.15GHz, 5.5GHz, 5.537GHz, 6.525GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.5GHz, 2.4GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Module | 17 | 2.5 | - | 1.49dBi, 1.45dBi, 3.98dBi, 31.89dBi, 30.61dBi, 30.95dBi, 3.18dBi, 31.82dBi, 33.28dBi, 32.19dBi, 4.54dBi, 5.65dBi, 4.53dBi, 8.32dBi, 7.67dBi, 9.35dBi, 9.06dBi | 2 W | Cable - 5m, LNA, Filter | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 2.638" (67.00mm) | BeiDou, CDMA, Galileo, GLONASS, GNSS, GPS, HSPA, HSPA+, LTE, QZSS, WCDMA, Wi-Fi |
|
|
ASGP.1575.25B.4.A.01RF ANT Taoglas Limited |
0 |
|
规格书 |
- | Tape & Reel (TR) | Obsolete | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | - | - | 1.5dBi | - | - | SMA Female | - | - | - | Surface Mount | 0.266" (6.75mm) | GPS |
|

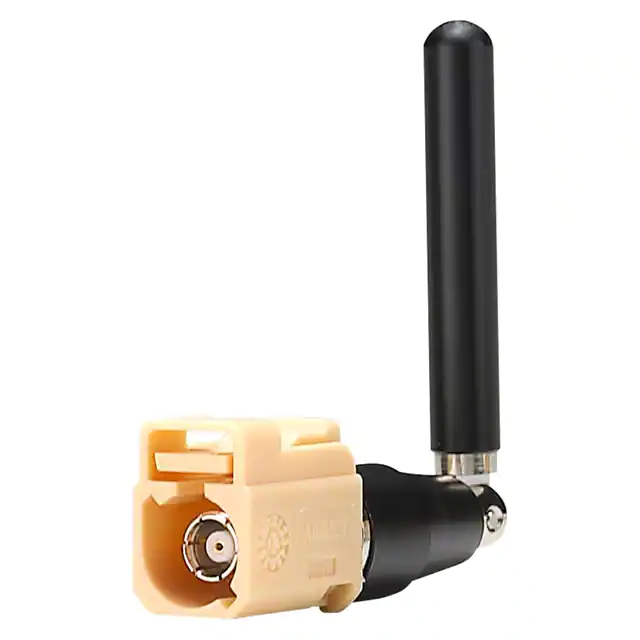

GW.05.0E23GW.05.0E23 DUAL-BAND WIFI 2.4/5. Taoglas Limited |
32 |
|
规格书 |
- | Bag | Obsolete | 802.15.4, Bluetooth, WiFi | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 3.775GHz, 4.175GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | - | -3dB, -5dB | 3.73dBi, 0.64dBi, 4.09dBi, 2.46dBi | 10 W | - | SMB, Fakra | - | - | - | Connector Mount | 2.740" (69.60mm) | Bluetooth, Wi-Fi, Zigbee™ |
|
SXP.25.4.A.08SDARS 2320 2345MHZ DUAL-BAND XM Taoglas Limited |
88 |
|
规格书 |
- | Tray | Last Time Buy | SDARS | UHF (2GHz ~ 3GHz) | 2.3325GHz | 2.32GHz ~ 2.3325GHz, 2.3325GHz ~ 2.345GHz | Ceramic Patch | 3 | - | -10dB | 9.2dBiC | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | SDARS |
|
|
FXUB64.09.0300AGPS/GALILEO & 2.4GHZ MULTI-BAND Taoglas Limited |
90 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FXP612.09.0300ARF ANT FLAT PATCH MMCX-RA Taoglas Limited |
25 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

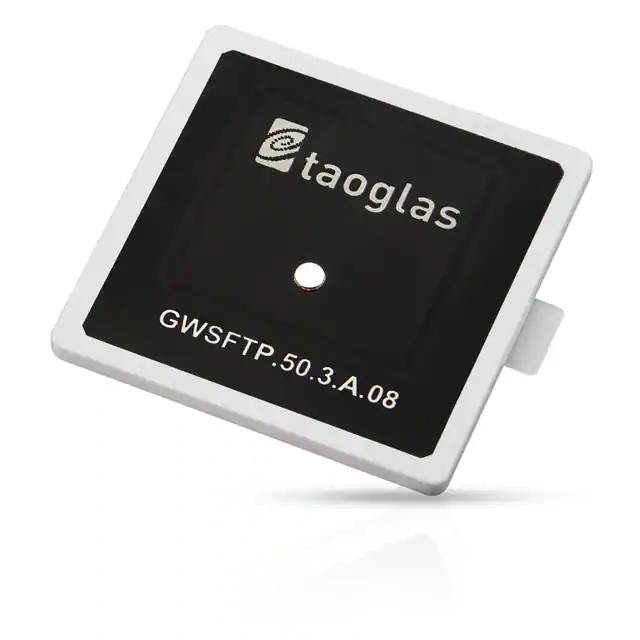

GWSFTP.50.3.A.08GPS L1 & WI-FI SINGLE FEED 50MM Taoglas Limited |
0 |
|
规格书 |
- | Tray | Not For New Designs | Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz) | 1.575GHz, 2.45GHz | 1.574GHz ~ 1.576GHz, 2.4GHz ~ 2.5GHz | Ceramic Patch | 2 | - | -7dB, -10dB | 1.6dBi, 0.1dBi | - | - | Pin | - | - | - | Adhesive | 0.118" (3.00mm) | GPS, Wi-Fi |
|

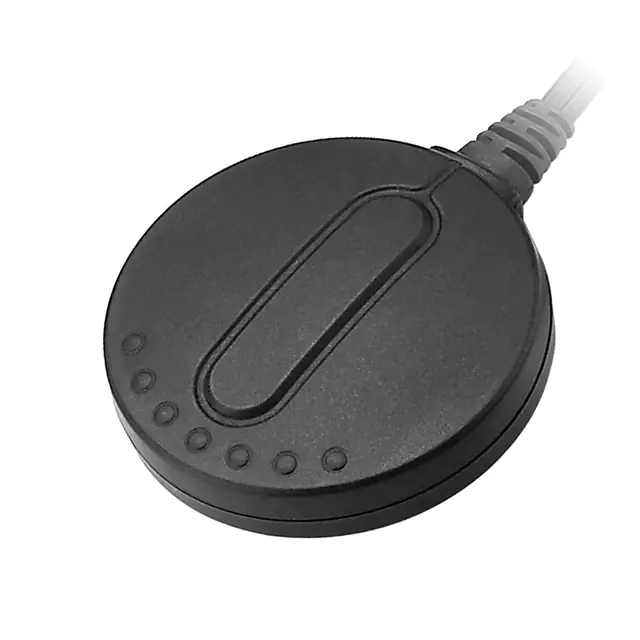

MA303.A.LB.002RF ANT 892MHZ/1.85GHZ PUCK SMA Taoglas Limited |
58 |
|
规格书 |
- | Bag | Last Time Buy | Navigation | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.85GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Puck | 2 | - | -5dB | 1.36dBi | 5 W | - | SMA Male | IP65 | - | - | Magnetic | 0.661" (16.80mm) | GLONASS, GPS |
