射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WM.90.A305111RF ANT 748MHZ/892MHZ WHIP STR Taoglas Limited |
68 |
|
规格书 |
- | Box | Active | - | Wide Band | 748MHz, 892MHz, 1.9GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.57GHz ~ 2.69GHz | Whip, Straight | 4 | - | -3dB, -6dB, -6dB, -6dB | -2.75dBi, 2.02dBi, 5.09dBi, 4.65dBi | 2 W | - | SMA Male | IP67 | - | - | Bracket Mount | 9.764" (248.00mm) | - |
|

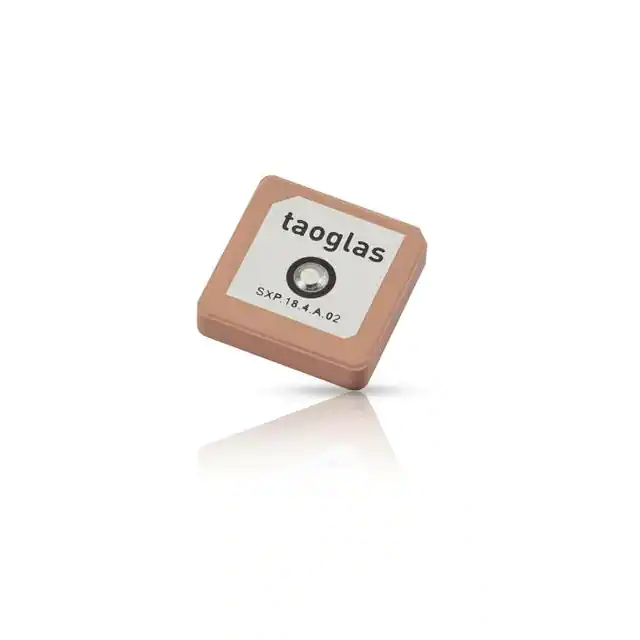

SXP.18.4.A.02SDARS 2320 2345MHZ DUAL-BAND XM Taoglas Limited |
99 |
|
规格书 |
- | Tray | Active | - | UHF (2GHz ~ 3GHz) | 2.32625GHz, 2.3325GHz, 2.33875GHz | 2.32GHz ~ 2.3325GHz, 2.3325GHz ~ 2.345GHz | Ceramic Patch | 3 | - | -10dB | 8dBic, 9.5dBic | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | - |
|

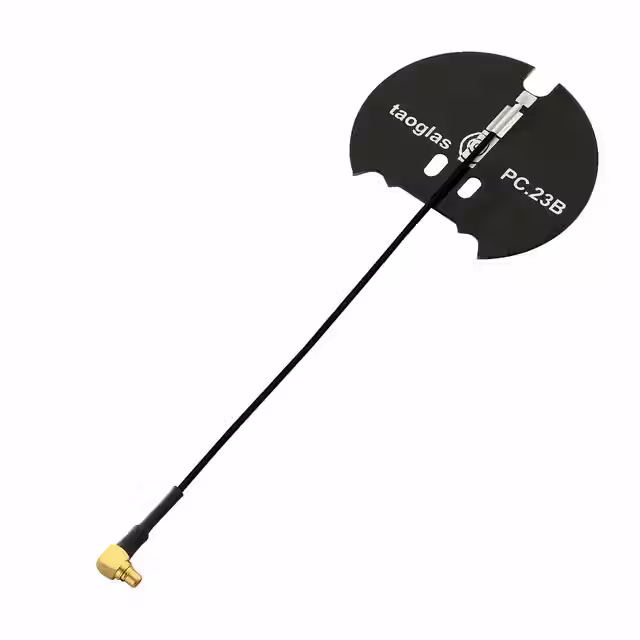

PC23.09.0100ARF ANT 892MHZ/1.9GHZ FLAT PATCH Taoglas Limited |
98 |
|
- |
- | Bag | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 2 | 2 | -25dB, -12dB | 0dBi | 10 W | - | MMCX Male | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|
FXUWB20.01.0100CULTRA WIDE BAND FLEX ANTENNA 3.1 Taoglas Limited |
90 |
|
- |
- | Bag | Active | - | SHF (f > 4GHz) | 4.05GHz, 7.1GHz, 9.25GHz | 3.1GHz ~ 5GHz, 6GHz ~ 8.2GHz, 8.2GHz ~ 10.3GHz | FlexPIFA | 3 | 2, 2.2, 3 | - | 4.2dBi, 5.8dBi, 6.6dBi | 10 W | Cable - 100mm | SMA Male | - | - | - | Surface Mount | 0.004" (0.10mm) | UWB |
|

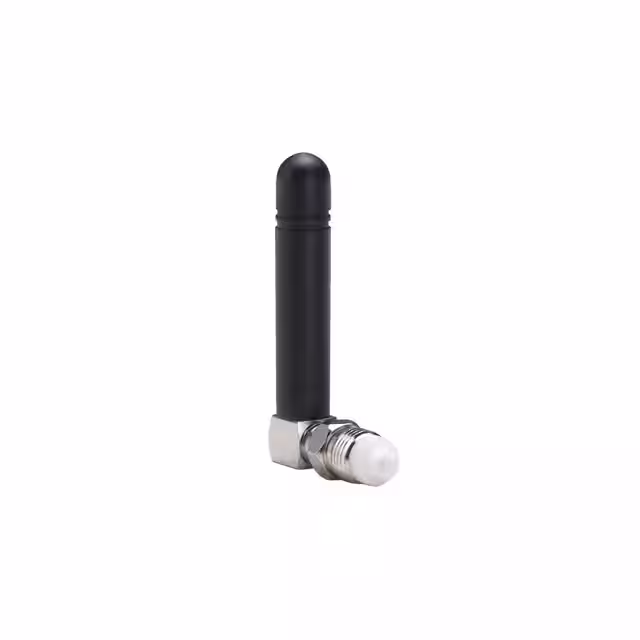

TG.22.0222RF ANT 850MHZ/900MHZ WHIP RA Taoglas Limited |
66 |
|
规格书 |
- | Bag | Not For New Designs | Cellular, General ISM | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Right Angle | 5 | 3, 2, 2, 2, 3 | -5dB, -10dB, -10dB, -10dB, -5dB | -0.37dBi, -0.13dBi, 3.35dBi, 4dBi, 4.08dBi | 5 W | - | FME Female | - | - | - | Connector Mount | 1.772" (45.00mm) | DCS, GSM, PCS, WCDMA |
|
FXUB85.54.0150CULTRA WIDE BAND FLEX ANTENNA 600 Taoglas Limited |
41 |
|
规格书 |
Pylon | Bulk | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz, 6.525GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | Flat Patch | 7 | - | -6dB, -7dB, -8dB, -11dB, -15dB | 2.1dBi, 2.4dBi, 1.9dBi, 1.8dBi, 5.3dBi, 5.6dBi, 4.5dBi | 5 W | Cable - 150mm | I-PEX MHF4L | - | - | - | Adhesive | 0.012" (0.30mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|

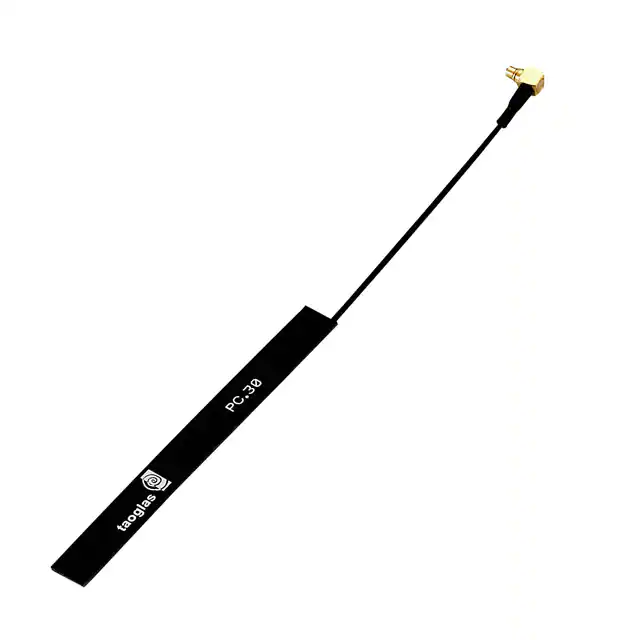

PC30.09.0100ARF ANT 850MHZ/900MHZ FLAT PATCH Taoglas Limited |
10 |
|
- |
- | Bag | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 5 | 2, 2.3, 0.5, 2.3, 2.2 | -18dB, -18dB, -12dB, -16dB, -12dB | 0.8dBi, -1dBi, 0dBi, 0.9dBi, 2dBi | 10 W | Cable - 100mm | MMCX Male | - | - | - | Bracket Mount | 0.031" (0.80mm) | CLR, DCS, GSM, PCS, UMTS |
|
TD.10.5113TD.10 TRITON 5DBI DSRC 5.9GHZ DI Taoglas Limited |
65 |
|
规格书 |
- | Bag | Active | General ISM | SHF (f > 4GHz) | 5.8875GHz | 5.85GHz ~ 5.925GHz | Whip, Tilt | 1 | 2 | -10dB | 5.88dBi, 6.67dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.654" (169.00mm) | DSRC |
|

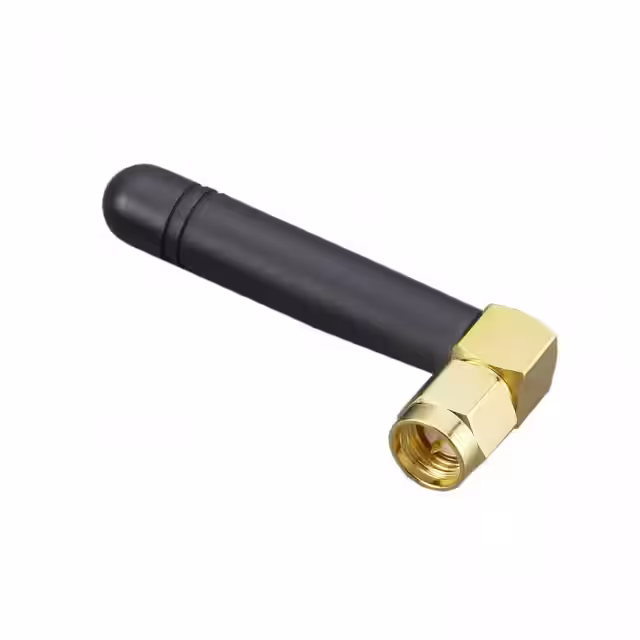

TG.22.0112.HTRF ANT 1.5GHZ WHIP RA SMA MALE Taoglas Limited |
9 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 1.5GHz | 800MHz ~ 2.2GHz | Whip, Right Angle | 1 | 2.3 | - | 0dBi | 20 W | - | SMA Male | - | - | - | Connector Mount | 1.764" (44.80mm) | CDMA, GSM, UMTS |
|

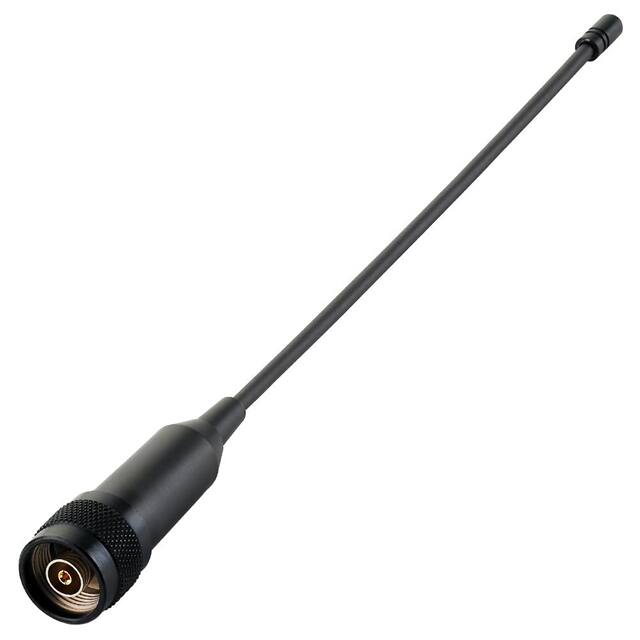

FW.92.RNT.MRF ANT 892MHZ/1.9GHZ WHIP STR Taoglas Limited |
16 |
|
规格书 |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | - | - | 3.4dBi, 4dBi | - | - | RP-N Male | IP67 | - | - | Connector Mount | 10.787" (274.00mm) | CDMA, GSM |
