射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

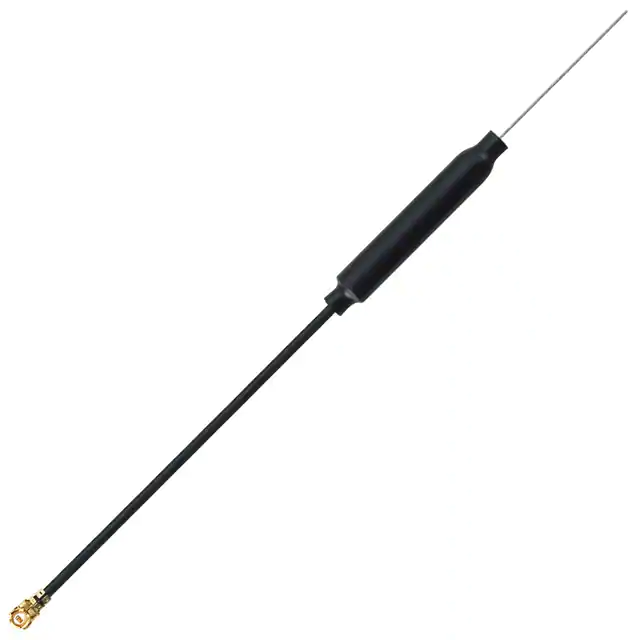

CBD02.07.0100CRF ANT 5.5GHZ WHIP STR CONN MT Taoglas Limited |
6 |
|
规格书 |
- | Bag | Active | WiFi | SHF (f > 4GHz) | 5.5GHz | 5.15GHz ~ 5.85GHz | Whip, Straight | 1 | 2 | -10dB | 3.94dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 0.185" (4.70mm) | Wi-Fi |
|
FXP830.09.0100CRF ANT 2.4GHZ/5.4GHZ FLAT PATCH Taoglas Limited |
90 |
|
规格书 |
Freedom | Bag | Not For New Designs | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.8GHz | Flat Patch | 2 | - | - | 2.6dBi, 5dBi | 2 W | Cable - 100mm | MMCX Male | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, Wi-Fi |
|

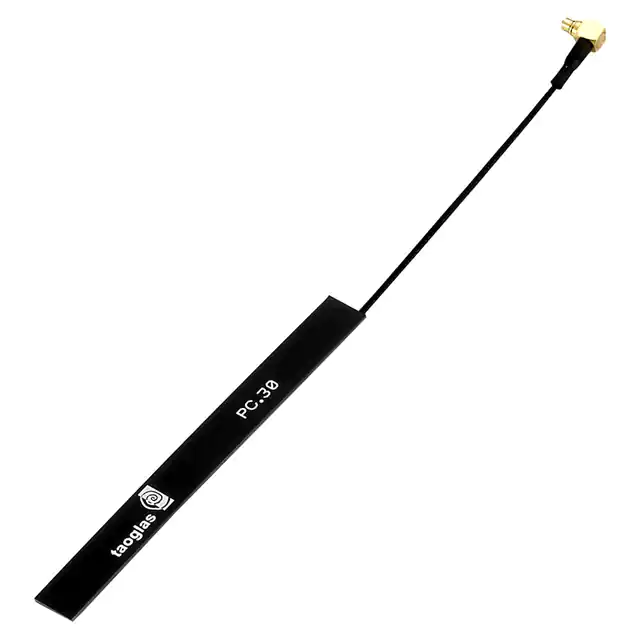

PC30.07.0100ARF ANT 892MHZ/1.9GHZ FLAT PATCH Taoglas Limited |
93 |
|
规格书 |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Flat Patch | 2 | 2.3, 2.5 | -11dB, -10dB | 0.3dBi, 2.7dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | GSM, UMTS |
|
PC27.07.0100ARF ANT 892MHZ/1.9GHZ FLAT PATCH Taoglas Limited |
90 |
|
规格书 |
TheStripe™ | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 2 | - | - | -4.1dBi, 0.6dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|

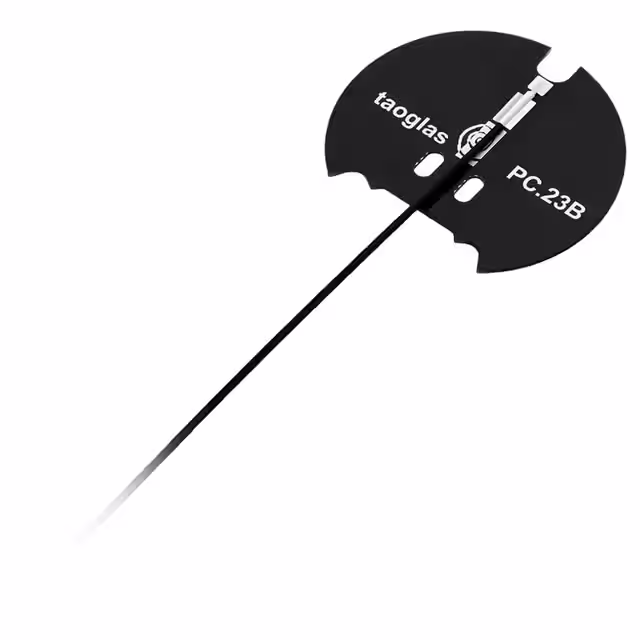

PC23.07.0100ARF ANT 892MHZ/1.9GHZ FLAT PATCH Taoglas Limited |
88 |
|
规格书 |
- | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz | Flat Patch | 2 | 2 | -25dB, -12dB | 0dBi | 10 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.031" (0.80mm) | GSM |
|

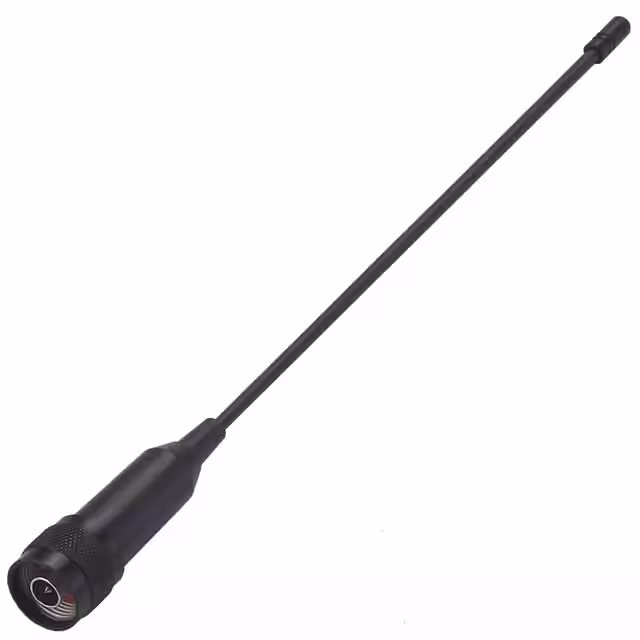

FW.86.B.NTY.MRF ANT 868MHZ WHIP STR N MALE Taoglas Limited |
36 |
|
规格书 |
Meteor | Bag | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | - | Whip, Straight | 1 | - | - | 3.5dBi | 2 W | - | N Type Male | IP67 | - | - | Connector Mount | 9.567" (243.00mm) | - |
|

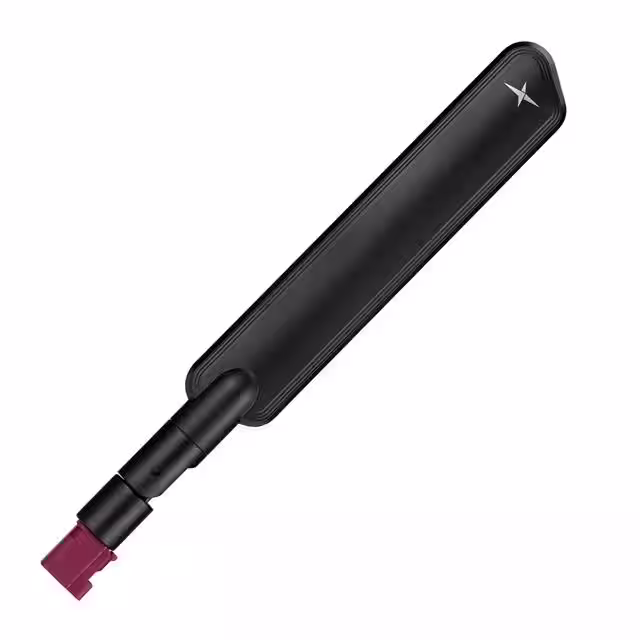

TG.55.8723TG.55 WITH FAKRA CODE D Taoglas Limited |
65 |
|
规格书 |
- | Bag | Active | Cellular, Navigation | Wide Band | 657.5MHz, 761MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.795GHz, 2.045GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.563GHz ~ 1.587GHz, 1.71GHz ~ 1.88GHz, 1.92GHz ~ 2.17GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Blade, Tilt | 10 | - | - | -0.68dBi, 0.14dBi, -2.14dBi, -1.88dBi, 0.15dBi, 0.58dBi, -0.74dBi, 0.87dBi, -0.59dBi, 1.98dBi, 1.37dBi, 3.09dBi, 0.93dBi, 2.45dBi, 0.73dBi, 1.69dBi, 1.51dBi, 1.5dBi, 1.73dBi, 0.7dBi | 2 W | - | SMA Male | - | - | - | Connector Mount | 6.772" (172.00mm) | 5G, DCS, GPS, GSM, LTE, UMTS |
|
PC240.09.0300KRF ANT 433MHZ FLT PATCH MMCX ADH Taoglas Limited |
50 |
|
规格书 |
- | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Flat Patch | 1 | 2 | -10dB | -0.97dB | - | Cable - 300mm | MMCX Male | - | - | - | Adhesive, Chassis Mount | 0.118" (3.00mm) | ISM |
|

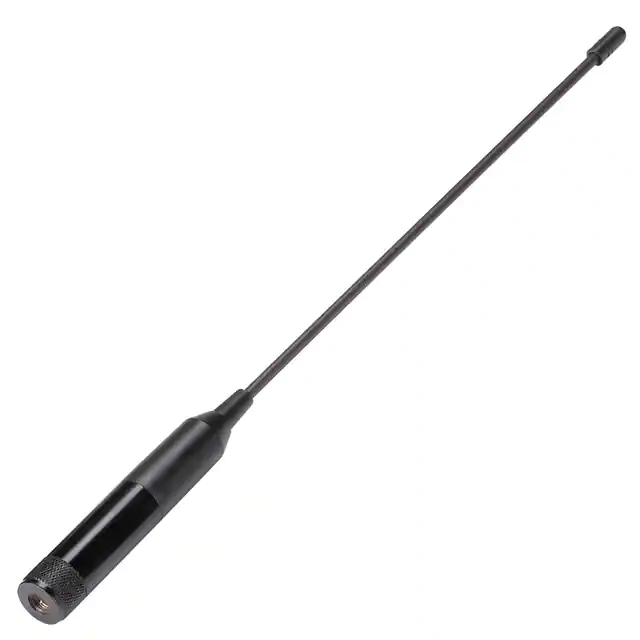

FW.45.B.SMA.MRF ANT 460MHZ WHIP TILT SMA MALE Taoglas Limited |
66 |
|
规格书 |
Meteor | Bulk | Active | - | UHF (300MHz ~ 1GHz) | 460MHz | 450MHz ~ 470MHz | Whip, Tilt | 1 | 2 | -10dB | 1.1dB | 2 W | - | SMA Male | IP67 | - | - | Connector Mount | 11.417" (290.00mm) | - |
|

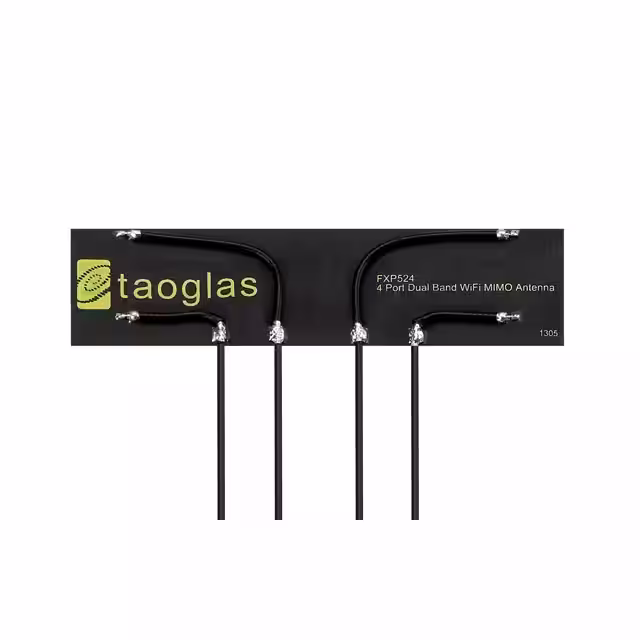

FXP524.D.07.C.001VENTI FXP524 2.4/5.8GHZ FLEX PCB Taoglas Limited |
22 |
|
规格书 |
Venti | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | - | 5.01dBi, 6.3dBi, 2.49dBi, 6.28dBi, 2.01dBi, 6.36dBi, 3.55dBi, 6.33dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN |
