上传BOM
射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

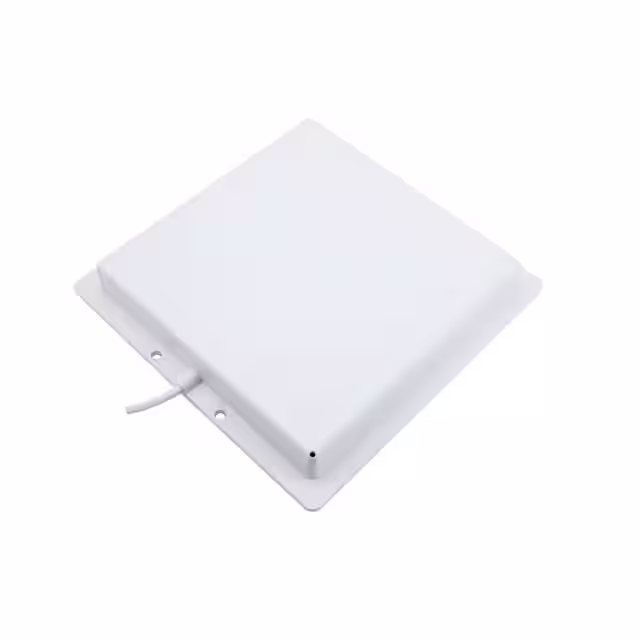

PE51FP1005-38 DBI 902-960MHZ PANEL RP-TNC Pasternack |
3 |
|
规格书 |
- | Bag | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.5 | - | 8dBi | - | Cable - 1.2192m | RP-TNC Male | - | - | - | Wall Mount | 1.200" (30.48mm) | GSM, ISM, LPWAN, LoRA, WLAN |
|
PE51FP1005-18 DBI 902-960MHZ PANEL N Pasternack |
10 |
|
规格书 |
- | Bag | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.5 | - | 8dBi | - | Cable - 1.2192m | N Type Male | - | - | - | Wall Mount | 1.200" (30.48mm) | GSM, ISM, LPWAN, LoRA, WLAN |
|
PE51YA10032.4 GHz 15 dBi Yagi Antenna Pasternack |
9 |
|
规格书 |
- | Retail Package | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Yagi | 1 | 1.5 | - | 14.5dBi | 50 W | Cable - 304.8mm | N Type Female | - | - | - | Bracket Mount | 18.200" (462.28mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|
PE51FP1005-28 DBI 902-960MHZ PANEL RP-SMA Pasternack |
6 |
|
规格书 |
- | Bag | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.5 | - | 8dBi | - | Cable - 1.2192m | RP-SMA | - | - | - | Wall Mount | 1.200" (30.48mm) | GSM, ISM, LPWAN, LoRA, WLAN |
|
|

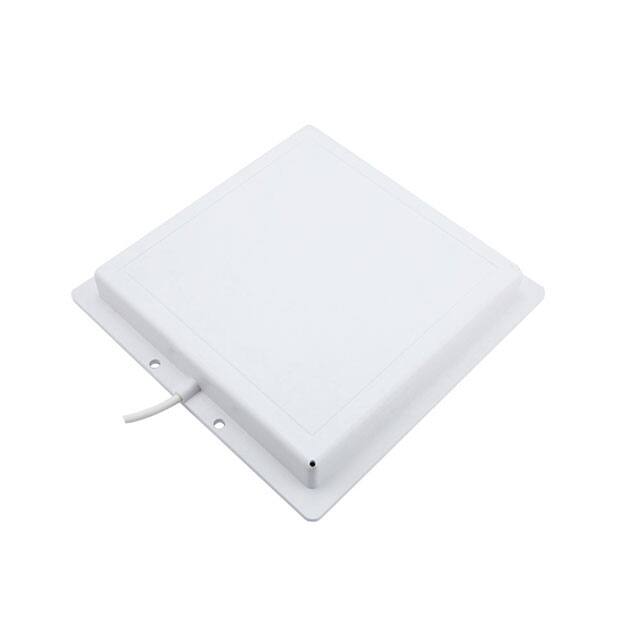

PE51FP1005900 MHz 8 dBi Flat Patch Antenna Pasternack |
7 |
|
规格书 |
- | Retail Package | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.5 | - | 8dBi | - | Cable - 304.8mm | N Type Female | - | - | - | Bracket Mount | 1.100" (27.94mm) | GSM, IoT, ISM, LoRa, LPWAN, M2M, RFID, WLAN |
|
|
PEANOM1050Collinear Omnidirectional Antenn Pasternack |
12 |
|
规格书 |
- | Retail Package | Active | General ISM | VHF (f < 300MHz) | 154MHz | 134MHz ~ 174MHz | Whip, Straight | 1 | 1.5 | - | 4.5dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 59.055" (150.00cm) | General Purpose |
|
|
PEANLP1015698-6000 MHz, 10 to 11 dBi gain, Pasternack |
8 |
|
规格书 |
- | Retail Package | Active | Cellular, WiFi | Wide Band | 3.349GHz | 698MHz ~ 6GHz | Panel | 1 | 1.7 | - | 11dBi | 100 W | Cable - 200mm | N Type Female | - | - | - | Bracket Mount | 17.500" (444.50mm) | 4G, 5G, 802.11a/b/g/n/ac/ad/ah/ax, GSM, IoT, LoRa, LPWAN, LTE-M, M2M, NB-IoT, Wi-Fi, WLAN |
|
|
PE51YA10022.4 GHz 12 dBi Yagi Antenna Pasternack |
5 |
|
规格书 |
- | Retail Package | Active | Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Yagi | 1 | 1.5 | - | 12dBi | 50 W | Cable - 304.8mm | N Type Female | - | - | - | Bracket Mount | 12.000" (304.80mm) | 802.11b/g/n, Bluetooth, ISM, Wi-Fi, WLAN |
|

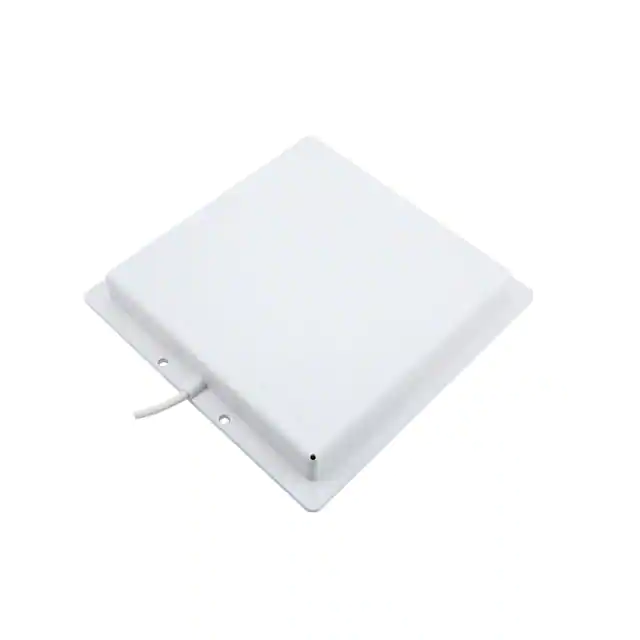

PE51FP1008-38 DBI 902-928MHZ RHCP PANEL SMA Pasternack |
2 |
|
规格书 |
- | Bag | Active | Cellular, General ISM, WiFi | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.5 | - | 8dBi | 25 W | Cable - 1.2192m | SMA Male | - | - | - | Panel Mount | 1.100" (27.94mm) | GSM, ISM, LPWAN, LoRA, WLAN |
|
|
PE51PD10034.9-5.8 GHz Dual Polarized/X-Pol Pasternack |
5 |
|
规格书 |
- | Retail Package | Active | General ISM, WiFi | SHF (f > 4GHz) | 5.3GHz, 5.6GHz | 4.75GHz ~ 5.85GH, 5.4GHz ~ 5.8GHz | Dish | 2 | 1.5 | - | 34dBi, 34dBi | 100 W | - | N Type Female (2) | - | - | - | Bracket Mount | 9.300" (236.22mm) | 802.11n, ISM, WiMax™ |
