射频天线
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 射频系列/标准 | 频率组 | 频率（中心/带宽） | 频率范围 | 天线类型 | 频段数量 | VSWR | 回波损耗 | 增益 | 功率 - 最大值 | 特性 | 端接方式 | 防护等级 | 等级 | 认证 | 安装类型 | 高度（最大值） | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE51YA1009900 MHz 9 dBi Al Yagi Antenna Pasternack |
10 |
|
规格书 |
- | Retail Package | Active | Cellular, General ISM | UHF (300MHz ~ 1GHz) | 892MHz | 824MHz ~ 960MHz | Yagi | 1 | 1.5 | - | 9dBi | 100 W | Cable - 381mm | N Type Female | - | - | - | Bracket Mount | 27.400" (695.96mm) | GSM, IoT, ISM, LoRa, LPWAN, M2M, RFID, WLAN |
|

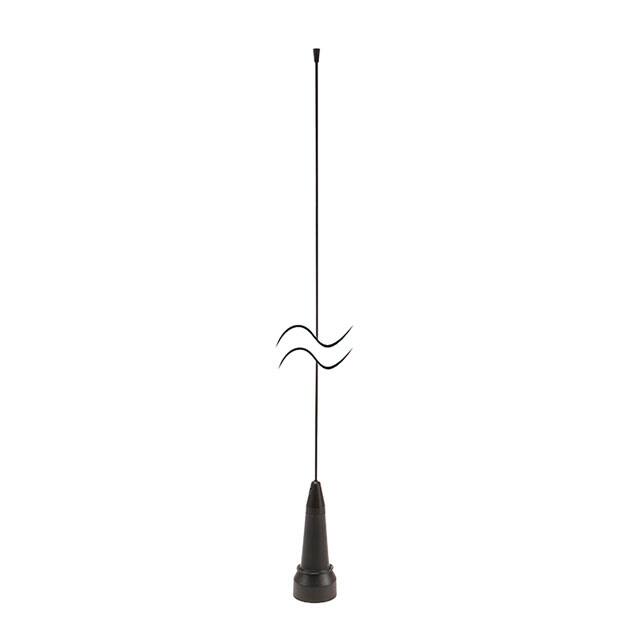

PE51MP10002DBI VEHICULAR 108-520MHZ NMO Pasternack |
12 |
|
规格书 |
- | Bag | Active | - | VHF (f < 300MHz), UHF (300MHz ~ 1GHz) | 150MHz, 450MHz, 450MHz | 142.5MHz ~ 157.5MHz, 425MHz ~ 475MHz, 400MHz ~ 500MHz | Whip, Straight | 3 | 1.5, 2 | - | 2dBi | 150 W | - | NMO | - | - | - | Magnetic | 29.000" (736.60mm) | General Purpose |
|
|
PEANMOB1003-NM136-940MHz, 4.5 dBi Gain, Omni-d Pasternack |
11 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 538MHz | 136MHz ~ 940MHz | Whip, Straight | 1 | 1.5 | - | 4.5dBi | 30 W | Cable - 3.05m | N Type Male | - | - | - | Magnetic | 3.700" (93.98mm) | General Purpose |
|
|
PEANMOB1003-RTP136-940MHz, 4.5 dBi Gain, Omni-d Pasternack |
8 |
|
规格书 |
- | Retail Package | Active | General ISM | Wide Band | 538MHz | 136MHz ~ 940MHz | Whip, Straight | 1 | 1.5 | - | 4.5dBi | 30 W | Cable - 3.05m | RP-TNC | - | - | - | Magnetic | 3.700" (93.98mm) | General Purpose |
|
|
PE51OM1053ANTENNA 3.3-4.2GHz, 11 DBI, N Pasternack |
22 |
|
规格书 |
- | Case | Active | Cellular | Wide Band | 3.75GHz | 3.3GHz ~ 4.2GHz | Whip, Straight | 1 | 2 | - | 11dBi | 50 W | - | N Type Male | IP67 | - | - | Bracket Mount | 1.008" (25.60mm) | General Purpose |
|

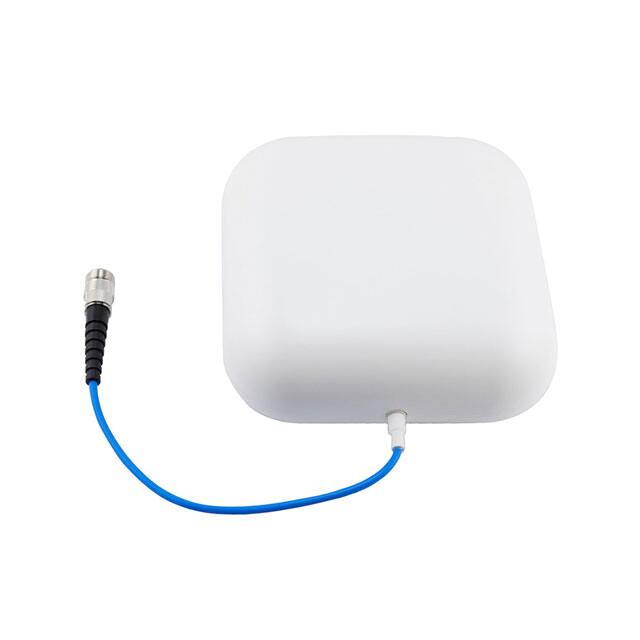

PE51FP10135-8.5 DBI DAS PANEL 2 X N (F) Pasternack |
12 |
|
规格书 |
- | Bag | Active | Cellular | Wide Band | 752MHz, 883MHz, 1.94GHz, 2.45GHz, 3.8GHz | 698MHz ~ 806MHz, 806MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.2GHz ~ 2.7GHz, 3.4GHz ~ 4.2GHz | Module | 5 | 1.8 | - | 5dBi, 6dBi, 7dBi, 7.5dBi, 8.5dBi | 50 W | Cable - 300mm | N Type Female | - | - | - | Wall Mount | 2.360" (59.94mm) | 5G, CDMA, GSM, LTE, LPWAN, LoRA, LTE-M, NB-IoT, IoT, M2M |
|

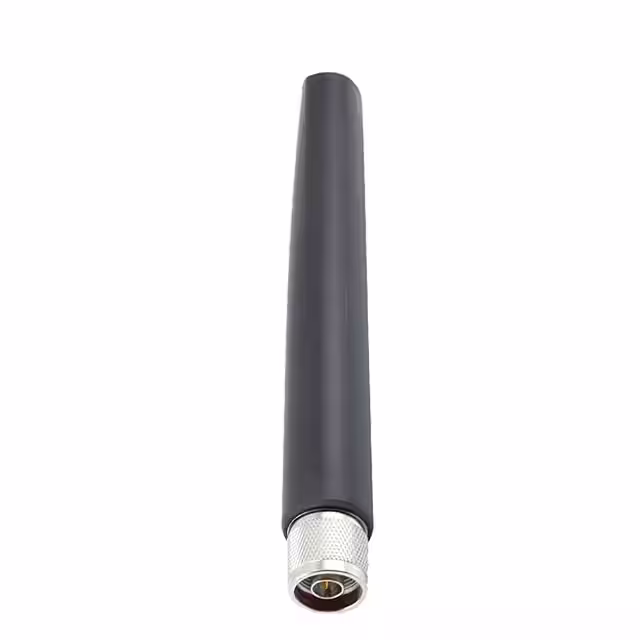

PE51OM10283 DBI PTBL BLK OM, .6-2.7 GHZ NM Pasternack |
21 |
|
规格书 |
- | Bag | Active | 802.15.4, Bluetooth, Cellular | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 788.5MHz, 2.2GHz | 617MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Whip, Straight | 2 | 3 | - | 2dBi, 3dBi | - | - | N Type Male | IP67 | - | - | Connector Mount | 7.360" (186.94mm) | 4G, 5G, Bluetooth, loT, Zigbee™, Z-Wave |
|
|
PE51OM10032.4/5.8 GHz 7/8 dBi Dual Band Om Pasternack |
8 |
|
规格书 |
- | Retail Package | Active | Cellular, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.38GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz | Whip, Straight | 2 | 2.5 | - | 7dBi, 8dBi | 50 W | - | N Type Female | - | - | - | Bracket Mount | 19.500" (495.30mm) | 802.11a/b/g/-c, Wi-Fi, WiMax, WLAN |
|
|
PE51025Patch Panel Antenna Operates Fro Pasternack |
18 |
|
规格书 |
- | Retail Package | Active | - | Wide Band | 915MHz | 902MHz ~ 928MHz | Panel | 1 | 1.2 | - | 8.5dBi | - | - | N Type Female | - | - | - | Bracket Mount | 1.740" (44.20mm) | - |
|
|
PE51OM10122.4 / 5 GHz 4/6 dBi Omni-Directi Pasternack |
2 |
|
规格书 |
- | Retail Package | Active | WiFi | Wide Band | 4.125GHz | 2.4GHz ~ 5.85GHz | Panel | 1 | 1.8 | - | 4dBi | 10 W | Cable - 883.92mm | RP-SMA | - | - | - | Bracket Mount | 4.000" (101.60mm) | 802.11a/b/g/n/ac |
