干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

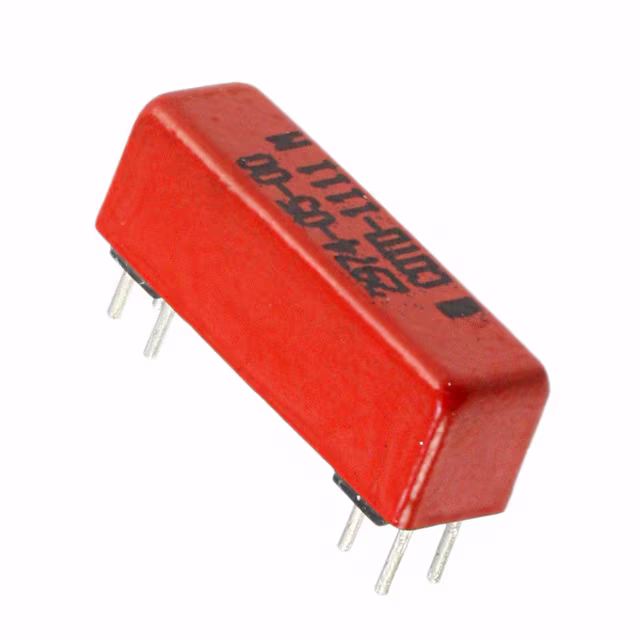

2974-05-00RELAY REED SPST 500MA 5V Coto Technology |
0 |
|
规格书 |
2970 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 2.5 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -40°C ~ 125°C | - |
|
8200-0075RELAY REED SPST 1A 5V Coto Technology |
0 |
|
- |
8200 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | - | 14.3 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.7 VDC | - | - | - | - |
|
2274-05-021RELAY REED SPST 500MA 5V Coto Technology |
0 |
|
规格书 |
2270 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 2.5 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -20°C ~ 125°C | - |
|
|
3520-05-911RELAY REED DPST 1A 5V Coto Technology |
0 |
|
规格书 |
3500 | Tube | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 1 A | 500VAC, 500VDC - Max | 25 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.4 VDC | 2 ms | 1 ms | -20°C ~ 85°C | - |
|
|
9201-12-00TRRELAY REED SPST 500MA 12V Coto Technology |
0 |
|
规格书 |
9200 | Tape & Reel (TR) | Active | Surface Mount | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 18.5 mA | Non Latching | - | Gull Wing | Sealed - Hermetically | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
1340-0251RELAY REED HV CUSTOM Coto Technology |
0 |
|
- |
- | Tray | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSS21A05RELAY REED SPST 2A 5V THRU-HOLE Coto Technology |
0 |
|
规格书 |
MSS2 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 500VAC, 500VDC - Max | 35.7 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.2 ms | 1 ms | -38°C ~ 75°C | - |
|
|
MSS21A05BRELAY REED SPST 2A 5V THRU-HOLE Coto Technology |
0 |
|
规格书 |
MSS2 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 500VAC, 500VDC - Max | 35.7 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.2 ms | 1 ms | -38°C ~ 75°C | - |
|

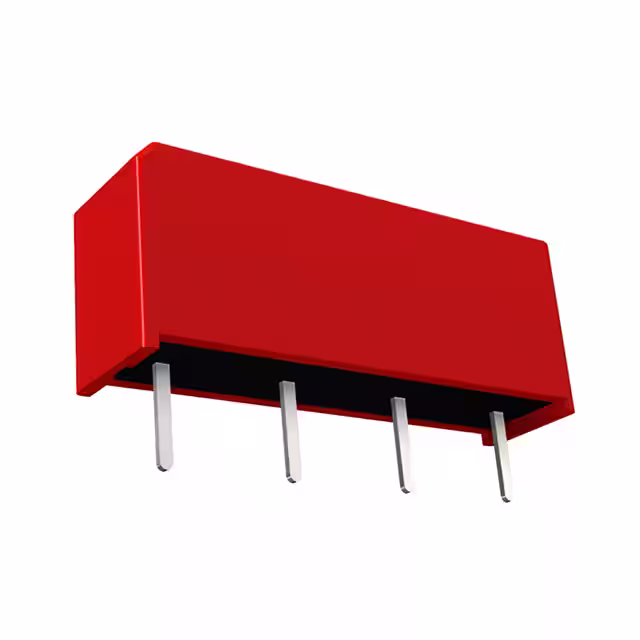

9006-05-00RELAY REED SPST 500MA 5V Coto Technology |
0 |
|
规格书 |
9006 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9006-05-01RELAY REED SPST 500MA 5V Coto Technology |
0 |
|
规格书 |
9006 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
