干簧继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

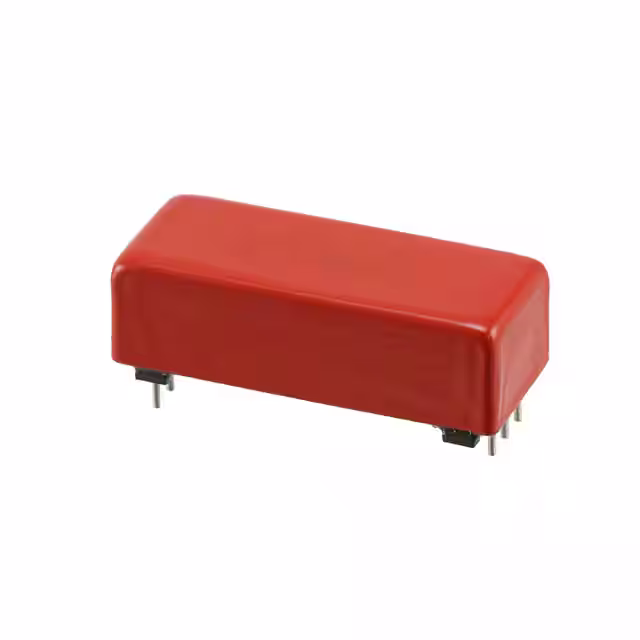

7101-05-1001RELAY REED SPST 500MA 5V Coto Technology |
0 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 16.7 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7101-12-1001RELAY REED SPST 500MA 12V Coto Technology |
0 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 7.5 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7121-24-1000RELAY REED SPST 500MA 24V Coto Technology |
0 |
|
规格书 |
7000 | Tube | Obsolete | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 6.9 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7121-24-1100RELAY REED SPST 500MA 24V Coto Technology |
0 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 6.9 mA | Non Latching | - | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7141-05-1000RELAY REED SPDT 250MA 5V Coto Technology |
0 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VAC, 150VDC - Max | 28.6 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 2.5 ms | -20°C ~ 85°C | - |
|
7101-24-1010RELAY REED SPST 500MA 24V Coto Technology |
0 |
|
规格书 |
7000 | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 5.7 mA | Non Latching | Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7102-05-1101RELAY REED DPST 500MA 5V Coto Technology |
0 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VAC, 200VDC - Max | 33.3 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7101-05-1011RELAY REED SPST 500MA 5V Coto Technology |
0 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 16.7 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7101-24-1011RELAY REED SPST 500MA 24V Coto Technology |
0 |
|
规格书 |
7000 | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 5.7 mA | Non Latching | Diode, Electrostatic Shield | PC Pin | - | 18 VDC | 2 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
|
|
7160-05-1000RELAY REED DPST 500MA 5V Coto Technology |
0 |
|
规格书 |
7000 | Tube | Obsolete | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 500 mA | 200VAC, 200VDC - Max | 62.5 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | - |
