三端双向可控硅、SCR 输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S22MD3OPTOISOLATOR 2.5KV SCR 8DIP Sharp Microelectronics |
0 |
|
规格书 |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | SCR | No | 2 | 2500Vrms | 600 V | 3V/µs | 10mA | 200 mA | 1mA | 20µs | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 8-DIP | UR |
|
S2S3Y00FOPTOISOLATOR 3.75KV TRIAC 4SMD Sharp Microelectronics |
0 |
|
规格书 |
- | 4-SMD | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR, VDE |
|
PC3SD21YXZCFOPTOISOLATOR 5KV TRIAC 6SMD Sharp Microelectronics |
0 |
|
规格书 |
- | 6-SMD | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
PC3SD21YTZDFOPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics |
0 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR, VDE |
|
|
PC3SD21NXZCFOPTOISOLATOR 5KV TRIAC 6SMD Sharp Microelectronics |
0 |
|
规格书 |
- | 6-SMD | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
|
|
PC3SD21NTZCFOPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD12NXZAFOPTOISOLATOR 5KV TRIAC 6SMD Sharp Microelectronics |
0 |
|
规格书 |
- | 6-SMD | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
|
|
PC4SD21NTZCFOPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics |
0 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC4SD11NTZBFOPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics |
0 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|

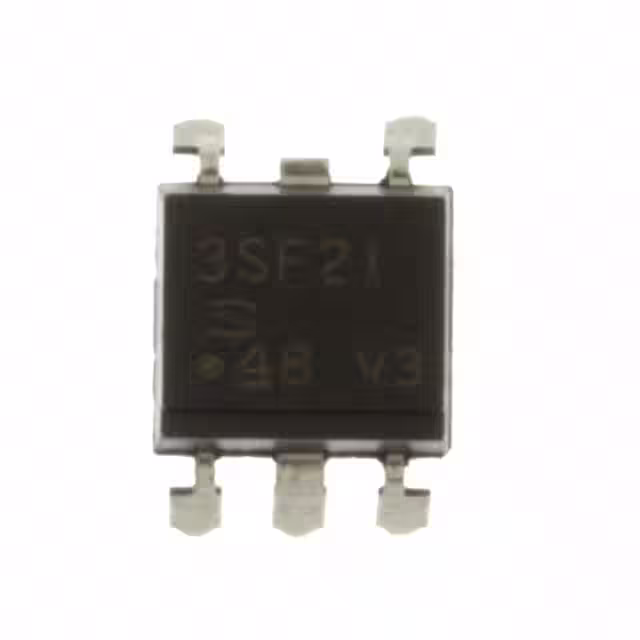

PC3SF21YVZBFOPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
