三端双向可控硅、SCR 输出光隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 输出类型 | 零交叉电路 | 通道数 | 电压 - 隔离 | 电压 - 关断状态 | 静态 dV/dt（最小值） | 电流 - LED 触发 (Ift)（最大值） | 电流 - 导通状态 (It (RMS))（最大值） | 电流 - 保持 (Ih) | 开启时间 | 电压 - 正向 (Vf)（典型值） | 电流 - 直流正向（If）（最大值） | 工作温度 | 安装类型 | 供应商设备封装 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S21ME5PYOPTOISOLATOR 5KV TRIAC 4SMD Sharp Microelectronics |
5,391 |
|
规格书 |
- | - | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 100V/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | - | BSI, DEMKO, SEMKO, UR, VDE |
|

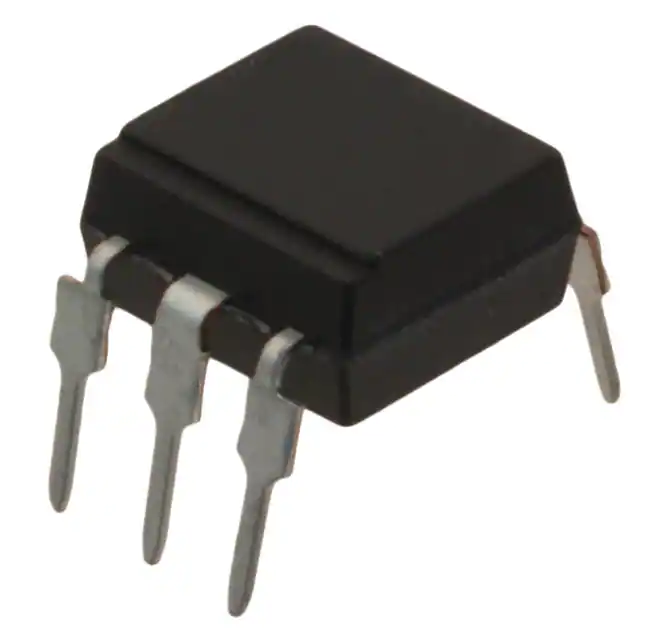

S21ME8YOPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics |
1,808 |
|
规格书 |
- | - | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 15 mA | -30°C ~ 100°C | Through Hole | - | BSI, DEMKO, SEMKO, UR, VDE |
|
S11MD5POPTOISOLATOR 5KV TRIAC 6SMD Sharp Microelectronics |
1,000 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
S21ME8FYOPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics |
661 |
|
规格书 |
- | - | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 15 mA | -30°C ~ 100°C | Through Hole | - | BSI, DEMKO, SEMKO, UR, VDE |
|

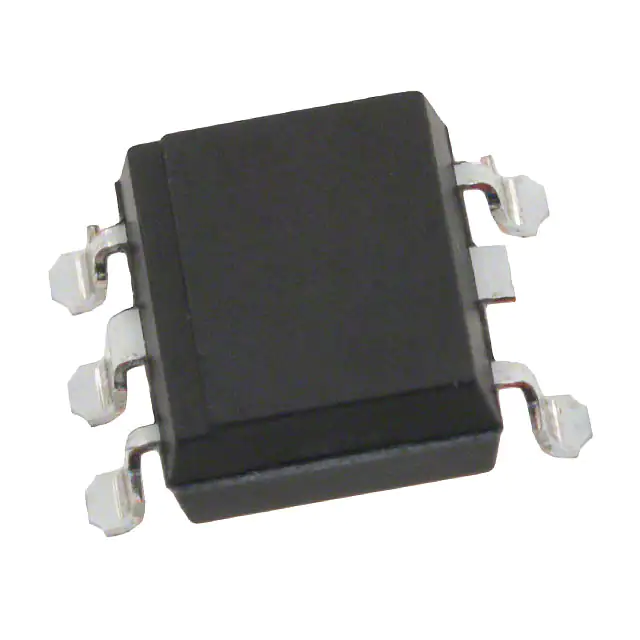

PC2SD11NXPAFOPTOISOLATOR 5KV TRIAC 6SMD Sharp Microelectronics |
64 |
|
规格书 |
* | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
S2S3YOPTOISOLATOR 3.75KV TRIAC 4SMD Sharp Microelectronics |
0 |
|
规格书 |
- | 4-SMD | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR, VDE |
|
|
S2S3OPTOISOLATOR 3.75KV TRIAC 4SMD Sharp Microelectronics |
0 |
|
规格书 |
- | 4-SMD | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR |
|
|
S2S3BOPTOISOLATOR 3.75KV TRIAC 4SMD Sharp Microelectronics |
0 |
|
规格书 |
- | 4-SMD | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR |
|
|
S2S3LBOPTOISOLATOR 3.75KV TRIAC 4SMD Sharp Microelectronics |
0 |
|
规格书 |
- | 4-SMD | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 5mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR |
|
PC2SD11NTZAOPTOISOLATOR 5KV TRIAC 6DIP Sharp Microelectronics |
0 |
|
规格书 |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 400 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
