多导体电缆
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C9010A.41.10CABLE 3COND 22AWG GRAY 100' |
1 |
|
规格书 |
Exzel™ | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.174" (4.42mm) | - | 100.0' (30.5m) | Gray | - | Rip Cord | 300 V | -30°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
TFC2006-500C5E F/UTP 26STR PVC CMR RED 500 |
0 |
|
规格书 |
TFC | Bulk | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 26 AWG | Solid | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.222" (5.64mm) | Foil | 500.0' (152.4m) | Red | - | - | 300 V | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
C9115A.41.10CABLE 15CON 22AWG GRAY SHLD 100' |
0 |
|
规格书 |
Exzel™ | Bulk | Obsolete | Multi-Conductor | 15 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.301" (7.65mm) | Foil | 100.0' (30.5m) | Gray | - | Drain Wire, Rip Cord | 300 V | -30°C ~ 105°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

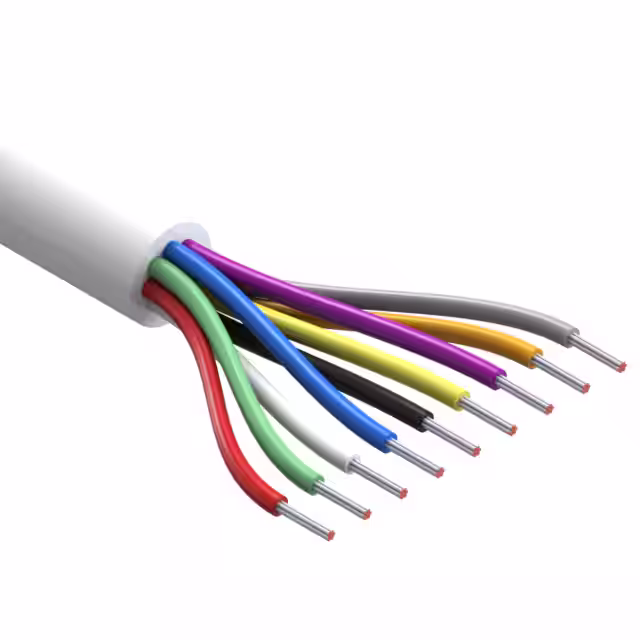

30-00529CABLE 9COND 28AWG WHITE 500' |
0 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 9 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.189" (4.80mm) | - | 500.0' (152.4m) | White | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|

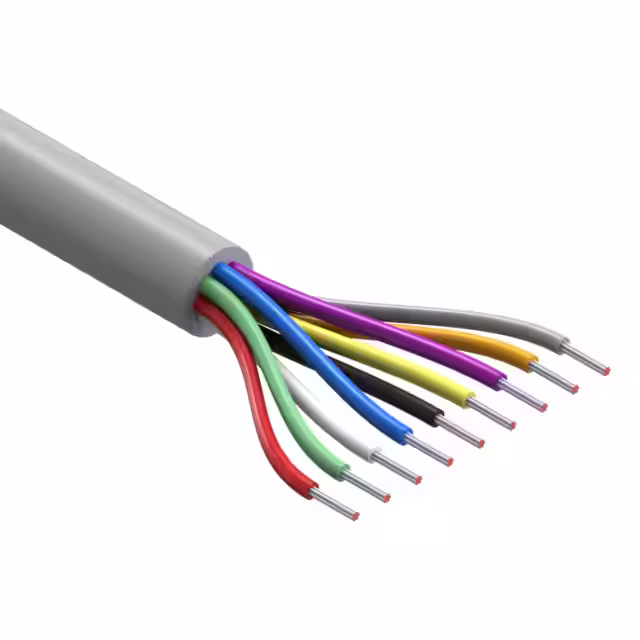

30-00530CABLE 9COND 28AWG GRAY 500' |
0 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 9 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.189" (4.80mm) | - | 500.0' (152.4m) | Gray | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
E2002S.41.10CABLE 2COND 22AWG GRAY SHLD 500' |
0 |
|
规格书 |
- | Bulk | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.125" (3.18mm) | Foil | 500.0' (152.4m) | Gray | - | Drain Wire, Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
3644B/16 100SFMULTI-PAIR 16CON 28AWG BEIGE 25' |
0 |
|
规格书 |
3644X | Bulk | Active | Multi-Pair | 16 (8 Pair Twisted) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.230" (5.84mm) | Foil, Braid | 25.00' (7.62m) | Beige | - | Splice Free | 150 V | - | Communication, Computer, Control | 0.0260" (0.660mm) | Polyolefin (PO) | - |
|
|
0027963/500LFLEX SERVO FD 796 CP 4G10+(2X1, |
0 |
|
- |
ÖLFLEX® | Bulk | Active | Multi-Conductor | 6 | 8 AWG | 320/0.0079" | Copper, Bare | Polyurethane (PU) | 0.764" (19.41mm) | Braid | - | Orange | - | - | 1000 V | -40°C ~ 80°C | - | - | Polypropylene (PP) | - |
|
30-00914CABLE 3COND 26AWG BLK SHLD 30M |
0 |
|
规格书 |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.169" (4.29mm) | Braid | 98.43' (30.00m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
|
30-02855CABLE 2COND 16AWG BLK/RED 30M |
0 |
|
规格书 |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 16 AWG | 26/0.0100" | Copper, Bare | Polyethylene (XLPE), Irradiated; Low Smoke Zero Halogen (LSZH) | 0.197" (5.00mm) | - | 98.43' (30.00m) | Black, Red | UL Style 4384 | - | 300 V | 105°C | - | 0.0193" (0.490mm) | - | - |
|
1554211004CABLE 2COND 22AWG VIO SHLD 25M |
1 |
|
规格书 |
Flamar 155421 | Spool | Active | Multi-Conductor | 2 | 22 AWG | 19/0.0059" | Copper, Bare | Weld-Slag Oil Resistant (WSOR) | 0.323" (8.20mm) | Foil, Braid | 82.02' (25.00m) | Violet | UL Style 21215 | - | 600 V | -10°C ~ 60°C | Industrial, Network | - | Polyethylene (PE) | - |
|
PUP6AS04BU-GCABLE CAT6A 8COND 23AWG BLU 100' |
0 |
|
规格书 |
TX6A™ 10Gig™ | Spool | Obsolete | Multi-Pair, Cat6a | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper | Poly-Vinyl Chloride (PVC), Plenum | 0.250" (6.35mm) | Foil | 100.0' (30.5m) | Blue | UL Style CMP | Flame Retardant | - | -20°C ~ 90°C | - | - | Fluorinated Ethylene-Propylene (FEP), Polyethylene (PE) | - |
|
PUP6AS04RD-GCABLE CAT6A 8COND 23AWG RED 100' |
0 |
|
规格书 |
TX6A™ 10Gig™ | Spool | Obsolete | Multi-Pair, Cat6a | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper | Poly-Vinyl Chloride (PVC), Plenum | 0.250" (6.35mm) | Foil | 100.0' (30.5m) | Red | UL Style CMP | Flame Retardant | - | -20°C ~ 90°C | - | - | Fluorinated Ethylene-Propylene (FEP), Polyethylene (PE) | - |
|
|
U2D00002-500FUSB BULK CBL 500F LSZH 28/28 |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
540-16-4-WH-0250FCABLE 4COND 16AWG WHITE 250' |
0 |
|
规格书 |
- | Spool | Obsolete | Multi-Conductor | 4 | 16 AWG | 65/0.0063" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.287" (7.29mm) | - | 250.0' (76.2m) | White | - | - | - | - | Commercial Audio | 0.0354" (0.900mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
TSXSCMCN025CABLE 4COND 24AWG GRAY SHLD 25M |
0 |
|
规格书 |
Preventa | Box | Active | Multi-Conductor | 4 (2 Pair Twisted) | 24 AWG | - | - | Polyethylene (PE) | - | Foil, Braid | 82.02' (25.00m) | Gray | - | - | 300 V | -20°C ~ 80°C | - | - | Polyethylene (PE) | - |
|
470121CY CL033CABLE 12CON 17AWG CLEAR SHLD 10M |
1 |
|
规格书 |
Pro-Met® | Bulk | Active | Multi-Conductor | 12 | 17 AWG | 30/0.0079" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.542" (13.76mm) | Braid | 32.81' (10.00m) | Clear | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0492" (1.250mm) | Poly-Vinyl Chloride (PVC) | - |
|
470121CY GE033CABLE 12COND 17AWG GRAY SHLD 10M |
0 |
|
规格书 |
Pro-Met® | Bulk | Active | Multi-Conductor | 12 | 17 AWG | 30/0.0079" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.542" (13.76mm) | Braid | 32.81' (10.00m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0492" (1.250mm) | Poly-Vinyl Chloride (PVC) | - |
|
6XV18603PH30CABLE 6COND VIO SHLD 3M |
0 |
|
规格书 |
- | Box | Active | Multi-Conductor | 6 | - | - | Copper | Poly-Vinyl Chloride (PVC) | 0.433" (11.00mm) | Foil, Braid | 9.84' (3.00m) | Violet | - | - | 600 V | -30°C ~ 80°C | - | - | Polyethylene (PE) | - |
|
|
6XV18307BH30CABLE 6COND VIO SHLD 3M |
0 |
|
规格书 |
- | Box | Active | Multi-Conductor | 6 | - | - | Copper | Polyurethane (PU) | 0.433" (11.00mm) | Foil, Braid | 9.84' (3.00m) | Violet | - | - | 100 V | -40°C ~ 60°C | - | - | Polyethylene (PE) | - |
