多导体电缆
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

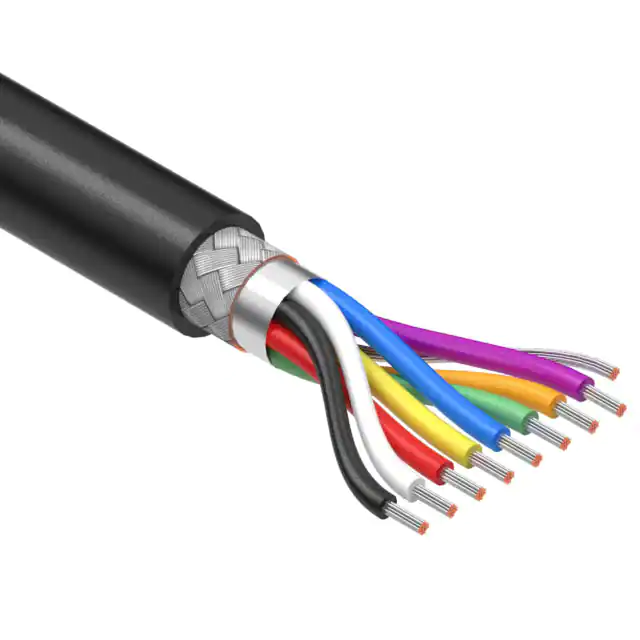

30-01083CABLE 8COND 28AWG BLK SHLD 30M |
0 |
|
规格书 |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 8 | 28 AWG | 7/0.0047" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.228" (5.79mm) | Foil, Braid | 98.43' (30.00m) | Black | UL Style 2464 | Drain Wire | 300 V | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC) | - |
|

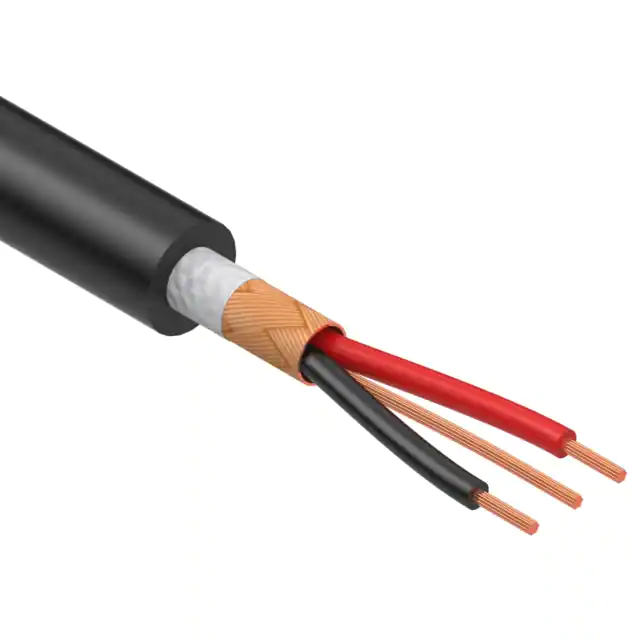

30-01226CABLE 2COND 24AWG BLK SHLD 30M |
0 |
|
规格书 |
- | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.169" (4.29mm) | Braid | 98.43' (30.00m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
09456000430CABLE CAT5 8CON 26AWG YELLOW 20M |
0 |
|
- |
- | Bulk | Obsolete | Multi-Pair, Cat5 | 8 (4 Pair Twisted) | 26 AWG | 7/26 | Copper, Bare | Polyurethane (PU) | 0.272" (6.91mm) | Foil, Braid | 65.62' (20.00m) | Yellow | UL Style 20963 | - | 125 V | -40°C ~ 80°C | - | - | Polyethylene (PE) | - |
|
01361.15T.01CABLE 2COND 14AWG BLACK 250' |
0 |
|
规格书 |
- | Spool | Obsolete | Multi-Conductor | 2 | 14 AWG | 41/30 | Copper, Bare | Rubber | 0.340" (8.64mm) | - | 250.0' (76.2m) | Black | - | - | 300 V | -40°C ~ 60°C | - | 0.0300" (0.762mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|
30-01562CABLE 2COND 22AWG BLK SHLD 30M |
0 |
|
规格书 |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 22 AWG | 17/0.0063" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.209" (5.31mm) | Foil, Braid | 98.43' (30.00m) | Black | UL Style 20387 | Drain Wire, Oil Resistant, UV Resistant | 300 V | -40°C ~ 105°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
PDS1002 WH005CABLE 2COND 10AWG WHITE 100' |
0 |
|
规格书 |
- | Spool | Obsolete | Multi-Conductor | 2 | 10 AWG | 105/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.450" (11.43mm) | - | 100.0' (30.5m) | White | - | - | 600 V | -20°C ~ 105°C | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
16001123/500H07RN-F 4G25 |
0 |
|
- |
H07RN-F | Bulk | Active | Multi-Conductor | 4 | 4 AWG | 200/0.0161" | Copper, Bare | Neoprene | 1.264" (32.10mm) | - | - | Black | - | - | 750 V | -25°C ~ 60°C | - | - | Rubber | - |
|
|
TFDL2005-100C5E SF/UTP 26STR LSZH BLK 100FT |
0 |
|
规格书 |
TFDL | Bulk | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 26 AWG | Solid | Copper, Bare | Low Smoke Zero Halogen (LSZH) | 0.236" (5.99mm) | Foil, Braid | 100.0' (30.5m) | Black | - | - | - | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
|
TSFZC7-BLU-100FCAT 7 10GIG, S/FTP, 26AWG STR, L |
0 |
|
规格书 |
- | Bulk | Active | Multi-Pair, Cat7 | 8 (4 Pair Twisted) | 26 AWG | Solid | Copper, Bare | Low Smoke Zero Halogen (LSZH) | 0.236" (5.99mm) | Foil, Braid | 100.0' (30.5m) | Blue | - | - | 30 V | -10°C ~ 80°C | - | - | Foam Polyethylene (FPE) | - |
|
02726.85.01CABLE 4COND 12AWG BLACK 50' |
0 |
|
规格书 |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Bare | Carolprene | 0.650" (16.51mm) | - | 50.00' (15.24m) | Black | - | - | 600 V | -40°C ~ 90°C | Cord and Cordset | 0.0450" (1.143mm) | Ethylene Propylene Terpolymer Rubber (EPDM) | - |
|

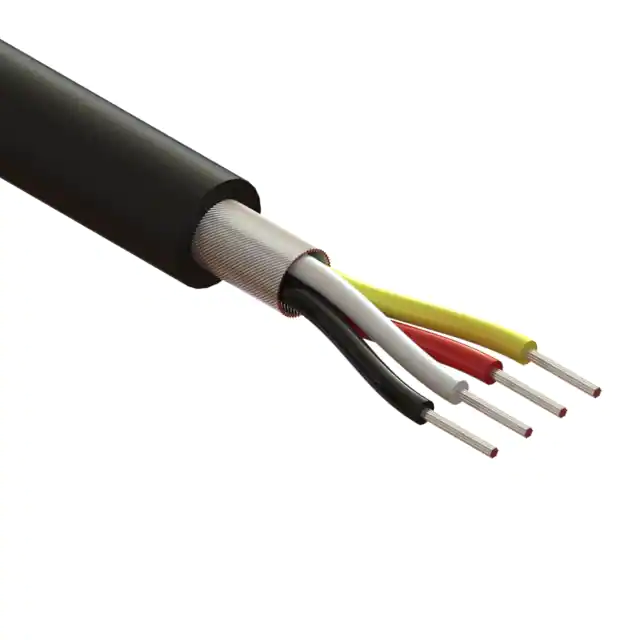

30-00492CABLE 4COND 26AWG BLK SHLD 30M |
0 |
|
规格书 |
- | Spool | Discontinued at Digi-Key | Multi-Conductor | 4 | 26 AWG | 26/40 | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.134" (3.40mm) | Spiral | 98.43' (30.00m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0197" (0.500mm) | High Density Polyethylene (HDPE) | - |
|
701711CABLE 6 COND 14/18AWG BLACK 25' |
0 |
|
规格书 |
ÖLFLEX® VFD 1XL with Signal | Bulk | Active | Multi-Conductor | 6 (1 Pair + 4) | 14 AWG, 18 AWG | 41/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.486" (12.34mm) | Foil, Braid | 25.00' (7.62m) | Black | - | Chemical Resistant, Drain Wire, Oil Resistant, UV Resistant | - | - | Industrial | - | Polyethylene (XLPE), Irradiated | - |
|
09456001211PROFINET 4 TP TYPE B CABLE; 20M |
0 |
|
规格书 |
- | Bulk | Active | Multi-Pair, Cat6a | 8 (4 Pair Twisted) | 23 AWG | - | - | Poly-Vinyl Chloride (PVC) | 0.343" (8.71mm) | Braid | 65.62' (20.00m) | Green | - | - | - | -40°C ~ 80°C | - | - | Polyethylene (PE) | - |
|
470057CY CL432CABLE 5COND 19AWG CLEAR SHLD 20M |
0 |
|
规格书 |
Pro-Met® | Bulk | Active | Multi-Conductor | 5 | 19 AWG | 30/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.372" (9.45mm) | Braid | 65.62' (20.00m) | Clear | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0374" (0.950mm) | Poly-Vinyl Chloride (PVC) | - |
|
470057CY GE432CABLE 5COND 19AWG GRAY SHLD 20M |
0 |
|
规格书 |
Pro-Met® | Bulk | Active | Multi-Conductor | 5 | 19 AWG | 30/0.0070" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.372" (9.45mm) | Braid | 65.62' (20.00m) | Gray | - | Chemical Resistant, Oil Resistant, UV Resistant | 300 V | -40°C ~ 80°C | Industrial | 0.0374" (0.950mm) | Poly-Vinyl Chloride (PVC) | - |
|
2170843CABLE 2COND 16AWG BLACK 25' |
0 |
|
规格书 |
Unitronic® | Bulk | Active | Multi-Conductor | 2 | 16 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | - | - | 25.00' (7.62m) | Black | - | - | 300 V | -40°C ~ 80°C | Industrial | - | Poly-Vinyl Chloride (PVC) | - |
|
|
700704/500LFLEX VFD 2XL 4G10 8/4C |
0 |
|
- |
ÖLFLEX® | Bulk | Active | Multi-Conductor | 4 | 8 AWG | 80/0.0161" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.886" (22.50mm) | Foil, Braid | - | Black | - | - | 2000 V | -25°C ~ 90°C | - | - | Polyethylene (XLPE), Irradiated | - |
|
|
1302261891FLAT CABLE #4/4C NEO 90C |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
701700CABLE 4COND 16AWG BLK SHLD 1=50' |
0 |
|
规格书 |
ÖLFLEX® VFD 1XL | Bulk | Active | Multi-Conductor | 4 | 16 AWG | 26/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.374" (9.50mm) | Foil, Braid | 50.00' (15.24m) | Black | - | Chemical Resistant, Drain Wire, Oil Resistant, UV Resistant | - | - | Industrial | - | Polyethylene (XLPE), Irradiated | - |
|
C1644A.18.10CABLE 4COND 20AWG GRAY SHLD 50' |
1 |
|
规格书 |
- | Bulk | Active | Multi-Conductor | 4 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.255" (6.48mm) | Braid | 50.00' (15.24m) | Gray | - | - | 300 V | -20°C ~ 75°C | Communication, Control | 0.0290" (0.737mm) | Polyethylene (PE) | - |
