机器视觉 - 镜头
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 焦距 | 放大倍率 | 焦比 | 兼容的最大传感器尺寸 | 视场 | 工作距离 | 景深 | 分辨率 | 电视失真 | 滤镜尺寸 | 直径 | 长度 | 安装类型 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M13B04218WR1LEOPARD IMAGING CAMERA LENS M12 |
19 |
|
- |
- | Bulk | Active | Wide Angle | 4.2mm | - | F1.8 | 1/3" | 49.5° x 71° | 200mm (Min) | - | - | - | M12 x P0.5 | 14.0mm Dia | 16.5mm | CS-Mount | - |
|
|
E3292B-R1LEOPARD IMAGING CAMERA LENS M12 |
15 |
|
- |
- | Bulk | Active | Wide Angle | 2.8mm | - | F2 | 1/2.7" | 74° x 122° | 300mm (Min) | - | - | - | M12 x P0.5 | 14.0mm Dia | 16.8mm | CS-Mount | - |
|
|
2079348LENSES AND ACCESSORIES, C-MOUNT |
5 |
|
规格书 |
- | Bulk | Active | Wide Angle | 12.0mm | - | F8 | 2/3" | - | - | - | - | - | - | - | - | C-Mount | - |
|
|
2079346LENSES AND ACCESSORIES, C-MOUNT |
5 |
|
规格书 |
- | Bulk | Active | Wide Angle | 16.0mm | - | F8 | 2/3" | - | - | - | - | - | - | - | - | C-Mount | - |
|
|
5327525LENSES AND ACCESSORIES, C-MOUNT |
5 |
|
规格书 |
- | Bulk | Active | Standard | 35.0mm | - | F1.4 ~ F16 | 1" | - | - | - | - | - | - | - | - | C-Mount | - |
|
|
CIL062-F4.0-M12ANIR6mm No Distortion M12 Lens |
10 |
|
- |
Low Distortion | Bag | Active | No Distortion | 6.2mm | - | F4 | 1/1.8" | 60° @ 7.2mm | - | - | 6-8MP | -2% | M12 x P0.5 | 16.0mm Dia | 23.4mm | S-Mount | - |
|
|
CIL083-F2.8-M12A6508mm Low Distortion M12 Lens |
10 |
|
规格书 |
- | Bag | Active | Low Distortion | 8.0mm | - | F2.8 | 1/1.8" | 52° @ 7.6mm | - | - | 16MP (1.85µm) | -0.5% | M12 x P0.5 | 14.0mm Dia | 24.4mm | S-Mount | - |
|
|
CIL034-F2.7-M12A6603.2mm No Distortion M12 Lens |
10 |
|
规格书 |
Low Distortion/Ingress Protected | Bag | Active | Wide Angle | 3.2mm | - | F2.7 | 1/2.3" | 121° @ 7.0mm | - | - | 10MP (1.62µm) | 0% | M12 x P0.5 | 14.0mm Dia | 22.5mm | S-Mount | - |
|
|
CIL227-F2.5-M12BNIR7.8mm WideAngle Fisheye M12 Lens |
10 |
|
规格书 |
- | Bag | Active | Fisheye | 2.7mm | - | F2.5 | 1/2.3" | 190° @ 8.0mm | - | - | 12MP (1.55µm) | -11% | M12 x P0.5 | 17.4mm Dia | 22.1mm | S-Mount | - |
|
|
CIL227-F2.5-M12B6607.8mm WideAngle Fisheye M12 Lens |
10 |
|
规格书 |
- | Bag | Active | Fisheye | 2.7mm | - | F2.5 | 1/2.3" | 190° @ 8.0mm | - | - | 12MP (1.55µm) | -11% | M12 x P0.5 | 17.4mm Dia | 22.1mm | S-Mount | - |
|
|
CIL034-F4.2-M12B6603.2mm No Distortion M12 Lens |
10 |
|
规格书 |
Low Distortion/Ingress Protected | Bag | Active | Wide Angle | 3.2mm | - | F4.2 | 1/1.8" | 121° @ 7.0mm | - | - | 10MP (1.62µm) | 0% | M12 x P0.5 | 14.0mm Dia | 22.5mm | S-Mount | - |
|
|
CIL125-F8.0-M12ANIRTelephoto 12mm 1/2.3" M12 Lens |
10 |
|
- |
Low Distortion | Bag | Active | Telephoto | 12.5mm | - | F8 | 1/2.3" | 28° @ 6.2mm | - | - | 3MP (3.0µm) | -1% | M12 x P0.5 | 14.0mm Dia | 22.9mm | S-Mount | - |
|
|
CIL034-F2.7-M12B6603.2mm No Distortion M12 Lens |
6 |
|
- |
Low Distortion/Ingress Protected | Bag | Active | Wide Angle | 3.2mm | - | F2.7 | 1/1.8" | 121° @ 7.0mm | - | - | 10MP (1.62µm) | 0% | M12 x P0.5 | 14.0mm Dia | 22.5mm | S-Mount | - |
|
|
CIL343-F2.3-M12A6504.4mm Wide Angle M12 Lens |
10 |
|
规格书 |
- | Tray | Active | Wide Angle | 4.0mm | - | F2.3 | 1/1.7" | 123° @ 8.8mm | - | - | 12MP | -5% | M12 x P0.5 | 17.0mm Dia | 22.4mm | S-Mount | - |
|
|
CIL068-F2.5-M12A6506.8mm Low Distortion M12 Lens |
10 |
|
规格书 |
- | Tray | Active | Low Distortion | 6.8mm | - | F2.5 | 1/2" | 62° @ 8.0mm | - | - | 12MP (1.55µm) | -1% | M12 x P0.5 | 19.0mm Dia | 31.6mm | S-Mount | - |
|
|
CIL350-F2.4-M12A65035mm Telephoto M12 Lens |
10 |
|
规格书 |
Telephoto | Tray | Active | Telephoto | 35.0mm | - | F2.4 | 1/2.3" | 13° @ 8.0mm | - | - | 12MP | 0% | M12 x P0.5 | 20.0mm Dia | 38.9mm | S-Mount | - |
|
|
CIL239-F2.0-M12A6505.2mm IR Corrected Fisheye Lens |
10 |
|
规格书 |
- | Bag | Active | Fisheye | 1.8mm | - | F2 | 1/1.8" | 186° @ 5.2mm | - | - | 8-12MP | -13% | M12 x P0.5 | 32.0mm Dia | 29.9mm | S-Mount | - |
|
VFA1-118-5M12LENS W ANG F1 0.013X-0.113X C-MT |
8 |
|
规格书 |
- | Case | Active | Wide Angle | 12.0mm | 0.013x ~ 0.113x | F1 | 1/1.8" | 2085.0 x 2780.0mm ~ 49.1 x 65.4mm | 900mm ~ 100mm | 12.5mm | - | 0.3% | M25.5 x P0.5 | 26.8mm Dia | 19.9mm | C-Mount | -10°C ~ 50°C |
|

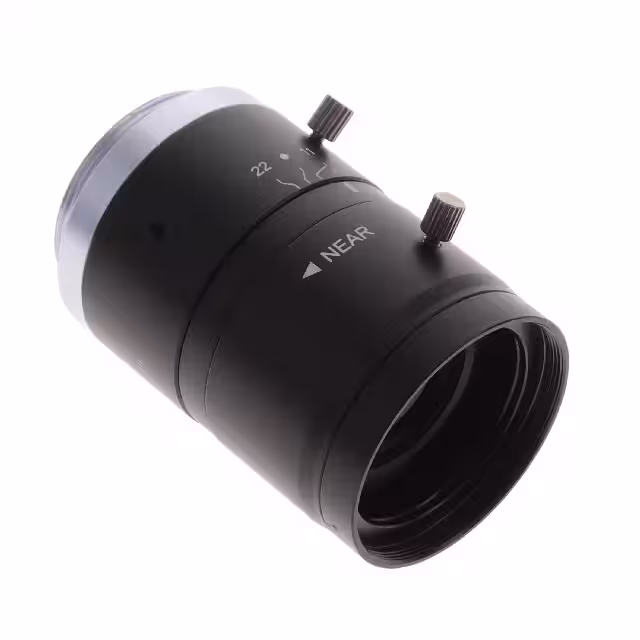

VFA1-118-5M50LENS STD F2.8-F22 0.043X-0.196X |
5 |
|
规格书 |
- | Case | Active | Standard | 50.0mm | 0.043x ~ 0.196x | F2.8 ~ F22 | 1/1.8" | 4065.3 x 5420.4mm ~ 121.0 x 161.3mm | 1200mm ~ 300mm | 17.4 ~ 27.1mm | - | 0.05% | - | 30.6mm Dia | 44.9mm | C-Mount | -10°C ~ 50°C |
|

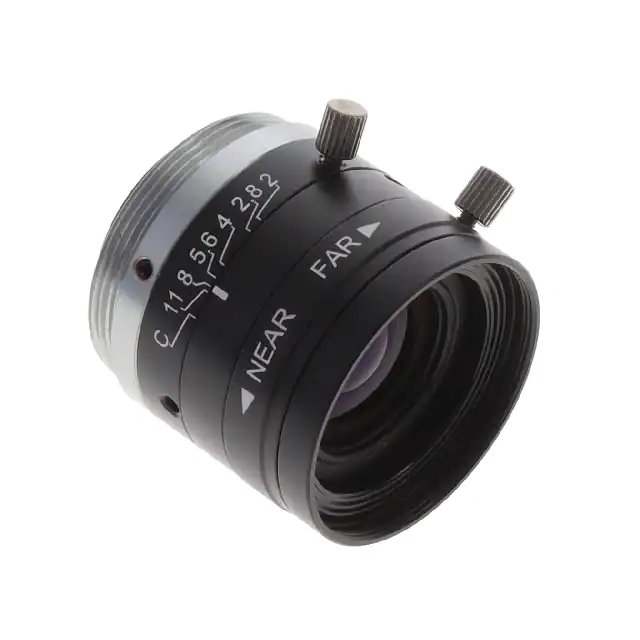

VFA1-118-5M16LENS W ANG F2 0.018X-0.162X C-MT |
4 |
|
规格书 |
- | Case | Active | Wide Angle | 16.0mm | 0.018x ~ 0.162x | F2 | 1/1.8" | 4065.3 x 5420.4mm ~ 121.0 x 161.3mm | 900mm ~ 100mm | 12.7mm | - | 0.1% | M25.5 x P0.5 | 26.8mm Dia | 22.4mm | C-Mount | -10°C ~ 50°C |
