机器视觉 - 镜头
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 焦距 | 放大倍率 | 焦比 | 兼容的最大传感器尺寸 | 视场 | 工作距离 | 景深 | 分辨率 | 电视失真 | 滤镜尺寸 | 直径 | 长度 | 安装类型 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0703-094-000-20LENS TELPHOT F4 0.066X-0.5X FLEX |
2 |
|
规格书 |
Apo-Rodagon-N | Box | Active | Telephoto | 90.0mm | 0.066x ~ 0.5x | F4 | - | 43.3mm | 241mm ~ 1426mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 44.4mm | Flexible | - |
|
0703-119-000-24LENS STD F2.8 0.033X-0.5X M42-MT |
5 |
|
规格书 |
Rodagon-M42 | Box | Active | Standard | 50.0mm | 0.033x ~ 0.5x | F2.8 | - | 46.0mm | 124mm ~ 1545mm | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 93.0mm | M42-Mount | - |
|

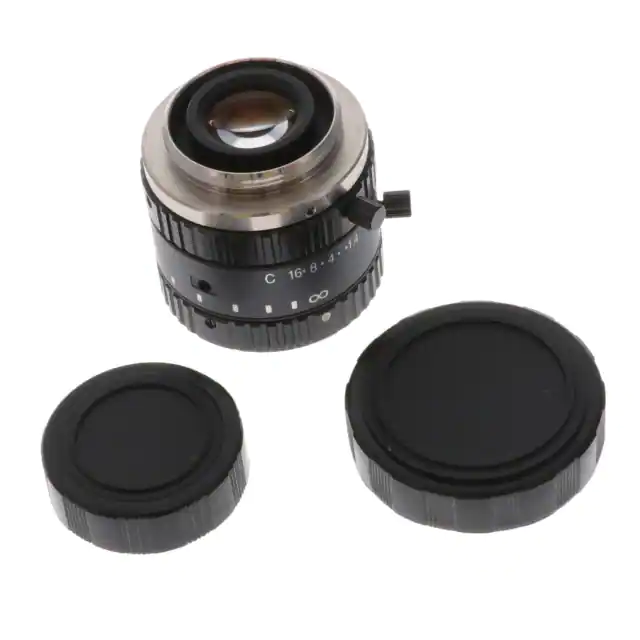

LCF12LMPLENS WIDE ANGLE F1.4 C-MOUNT |
7 |
|
规格书 |
VE | Bulk | Active | Wide Angle | 12.0mm | - | F1.4 | 2/3" | - | - | - | - | - | - | - | - | C-Mount | - |
|
|
0703-089-000-25LENS STD F4 0X-0.5X F-MOUNT |
5 |
|
规格书 |
Rodagon-F | Box | Active | Standard | 50.0mm | 0x ~ 0.5x | F4 | - | 43.3mm | 124mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 51.9mm | F-Mount | - |
|

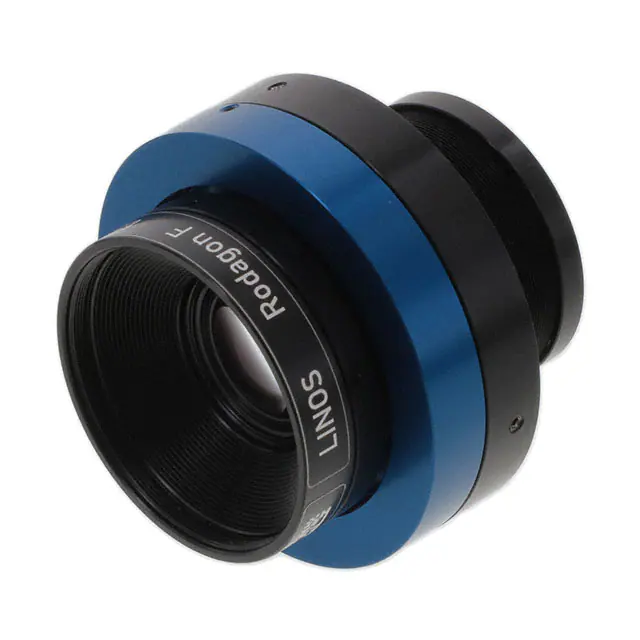

0703-089-000-26LENS STD F5.6 0X-0.5X F-MOUNT |
5 |
|
规格书 |
Rodagon-F | Box | Active | Standard | 50.0mm | 0x ~ 0.5x | F5.6 | - | 43.3mm | 124mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 51.9mm | F-Mount | - |
|

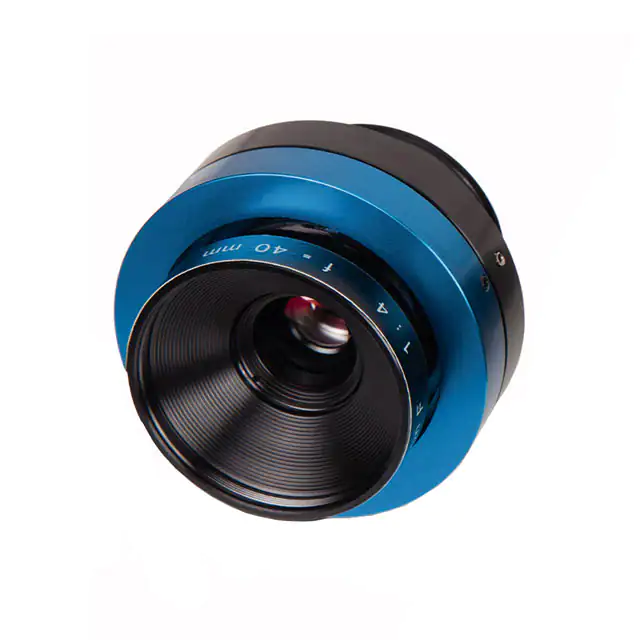

0703-090-000-27LENS STD F8 0X-0.5X F-MOUNT |
5 |
|
规格书 |
Rodagon-F | Box | Active | Standard | 40.0mm | 0x ~ 0.5x | F8 | - | 44.0mm | 94mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 45.9mm | F-Mount | - |
|
|
0703-090-000-26LENS STD F5.6 0X-0.5X F-MOUNT |
5 |
|
规格书 |
Rodagon-F | Box | Active | Standard | 40.0mm | 0x ~ 0.5x | F5.6 | - | 44.0mm | 94mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 45.9mm | F-Mount | - |
|

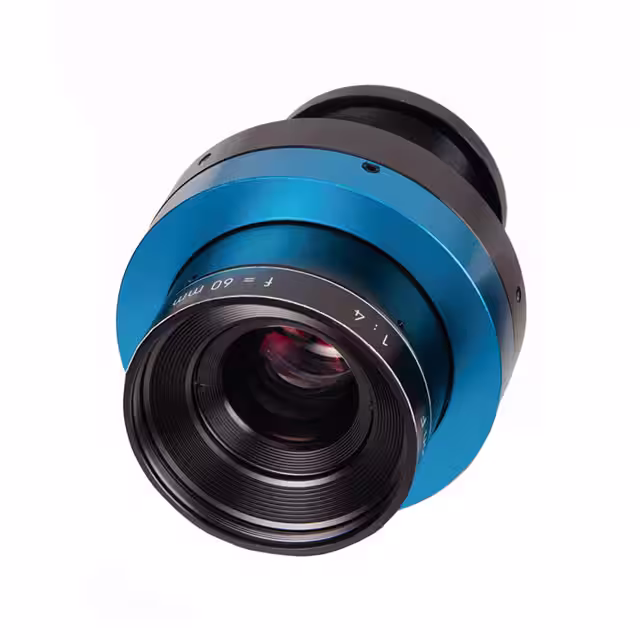

0703-087-000-25LENS STD F4 0X-0.5X F-MOUNT |
5 |
|
规格书 |
Rodagon-F | Box | Active | Standard | 60.0mm | 0x ~ 0.5x | F4 | - | 56.0mm | 159mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 70.2mm | F-Mount | - |
|
|
0703-087-000-27LENS STD F8 0X-0.5X F-MOUNT |
5 |
|
规格书 |
Rodagon-F | Box | Active | Standard | 60.0mm | 0x ~ 0.5x | F8 | - | 56.0mm | 159mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 70.2mm | F-Mount | - |
|
|
0703-087-000-26LENS STD F5.6 0X-0.5X F-MOUNT |
5 |
|
规格书 |
Rodagon-F | Box | Active | Standard | 60.0mm | 0x ~ 0.5x | F5.6 | - | 56.0mm | 159mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 70.2mm | F-Mount | - |
|
0009-243-000-42LENS STD F1.4 0X-0.15X F-MOUNT |
2 |
|
规格书 |
Inspec.x M | Box | Active | Standard | 50.0mm | 0x ~ 0.15x | F1.4 | 1.4" | 43.3mm | 355mm (Min) | - | 5µm | - | M58 x P0.75 | 70.0mm Dia | 50.4mm | F-Mount | - |
|
0009-190-000-40LENS MACRO F3.5 0.3X C-MOUNT |
4 |
|
规格书 |
Macro CCD | Box | Active | Macro | 24.0mm | 0.3x | F3.5 | 1" | 11.0mm | 90mm | - | 5µm | - | - | 32.0mm Dia | 33.8mm | C-Mount | - |
|
0703-109-000-21LENS STD F8 0.35X-0.65X FLEXIBLE |
5 |
|
规格书 |
Apo-Rodagon | Box | Active | Standard | 75.0mm | 0.35x ~ 0.65x | F8 | - | 62.0mm | 172mm ~ 273mm | - | 5µm | - | M37 x P0.75 | 46.0mm Dia | 47.0mm | Flexible | - |
|
0009-193-000-40LENS MACRO F4.4 2.0X C-MOUNT |
2 |
|
规格书 |
Macro CCD | Box | Active | Macro | 24.0mm | 2.0x | F4.4 | 1" | 11.0mm | 75mm | - | 5µm | - | - | 29.0mm Dia | 76.8mm | C-Mount | - |
|
|

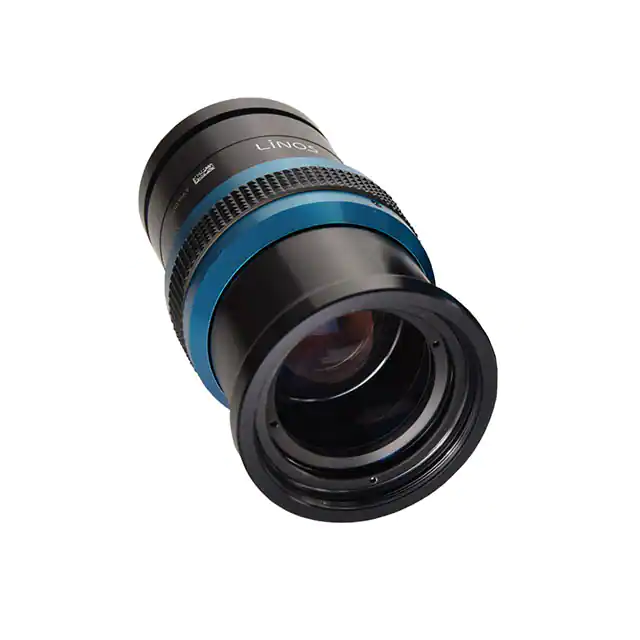

0703-083-000-20LENS TELPHOT F5.6 0.6X-0.9X FLEX |
5 |
|
规格书 |
inspec.x L | Box | Active | Telephoto | 105.0mm | 0.6x ~ 0.9x | F5.6 | - | 82.0mm | 183mm ~ 241mm | - | 5µm | - | M43 x P0.75 | 61.4mm Dia | 72.5mm | Flexible | - |
|
|
0703-084-000-20LENS TELPHOT F5.6 0.4-0.65X FLEX |
2 |
|
规格书 |
inspec.x L | Box | Active | Telephoto | 105.0mm | 0.4x ~ 0.65x | F5.6 | - | 82.0mm | 228mm ~ 330mm | - | 5µm | - | M43 x P0.75 | 61.4mm Dia | 72.5mm | Flexible | - |
|

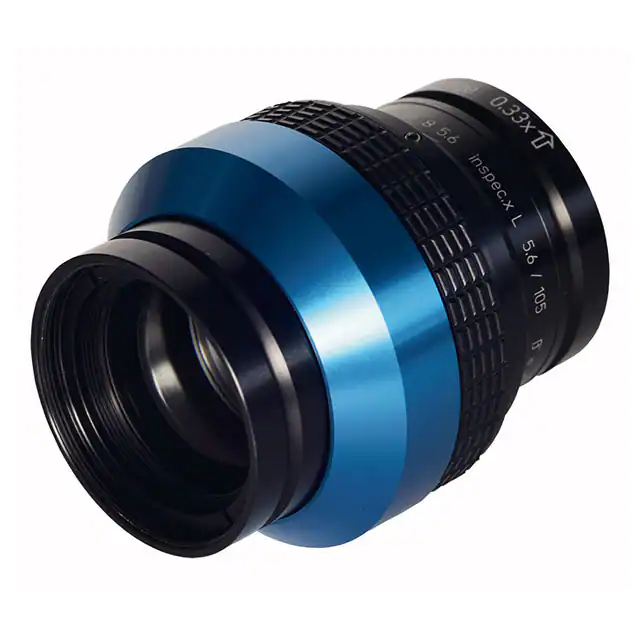

0703-085-000-20LENS TELPHOT F5.6 0.25-0.45X FLX |
2 |
|
规格书 |
inspec.x L | Box | Active | Telephoto | 105.0mm | 0.25x ~ 0.45x | F5.6 | - | 82.0mm | 300mm ~ 488mm | - | 5µm | - | M43 x P0.75 | 61.4mm Dia | 72.5mm | Flexible | - |
|
0703-107-000-20LENS TELEPHOTO F4 3.3X-4.0X FLEX |
2 |
|
规格书 |
inspec.x L | Box | Active | Telephoto | 105.0mm | 3.3x ~ 4.0x | F4 | - | 82.0mm | 28mm ~ 34mm | - | 5µm | - | M46 x P0.75 | 53.0mm Dia | 95.1mm | Flexible | - |
|
|
0703-116-000-21LENS TELPHOT F5.6 0.06-0.52X FLX |
2 |
|
规格书 |
inspec.x L | Box | Active | Telephoto | 120.0mm | 0.06x ~ 0.52x | F5.6 | - | 82.0mm | 302mm ~ 2037mm | - | 5µm | 0.4% | M52 x P0.75 | 77.1mm Dia | 72.7mm | Flexible | - |
|
|
M13B0618WR5LEOPARD IMAGING CAMERA LENS M12 |
15 |
|
- |
- | Bulk | Active | Wide Angle | 6.0mm | - | F1.8 | 1/3" | 34.5° x 48° | 200mm (Min) | - | - | - | M12 x P0.5 | 14.0mm Dia | 15.5mm | CS-Mount | - |
