LED 驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 可编程 | 类型 | 拓扑 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 调光 | 特性 | 额定值 | 工作温度 | 效率 | 端接样式 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELG-75-12DA-3YLED AC/DC DRIVER 75W |
0 |
|
规格书 |
ELG-75 (75W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 12V | 5A | 60 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 85% | Wire Leads | 6.14" L x 2.48" W x 1.40" H (156.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM |
|
|
ELG-75-C500DA-3YLED CC AC/DC DRIVER 75W |
0 |
|
规格书 |
ELG-75-C (75W) | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 75 ~ 150V | 500mA | 75 W | 3.75 kV | - | OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 91% | Wire Leads | 6.14" L x 2.48" W x 1.40" H (156.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM |
|
HLN-40H-12ALED DRVR CC/CV AC/DC 12V 3.33A |
32 |
|
规格书 |
HLN-40H (40W) | Box | Not For New Designs | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 12V | 3.33A | 40 W | 3.75 kV | PWM | OCP, OTP, OVP, SCP | IP64 | -40°C ~ 50°C | 86.5% | Wire Leads | 6.34" L x 2.42" W x 1.38" H (161.0mm x 61.5mm x 35.0mm) | CB, CE, cURus, PSE, TUV, UR |
|
PLED96W-137-C0700-D-HVLED DRIVR CC AC/DC 46-137V 700MA |
38 |
|
规格书 |
PLED96W-HV | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 277VAC | 480VAC | 46 ~ 137V | 700mA | 96 W | - | Analog | OCP, OVP, SCP | IP66, NEMA 6 | - | 86% | Wire Leads | 8.54" L x 2.33" W x 1.47" H (217.0mm x 59.2mm x 37.3mm) | CE, cURus |
|
|
ELG-150-36A-3YLED AC/DC DRIVER 150W |
0 |
|
规格书 |
ELG-150 (150W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 36V | 4.17A | 150 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 90°C | 90% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM |
|
|
AD-EL-WF-2401200-BLED Driver UL Listed 24VDC 120W |
15 |
|
规格书 |
- | Case | Active | - | - | AC DC Converter | 1 | 100VAC | 240VAC | 24V | 5A | 120 W | 3 kV | Analog, PWM | OCP, SCP | IP65 | -20°C ~ 50°C | 92% | Wire Leads | 13.46" L x 12.60" W x 0.89" H (342.0mm x 320.0mm x 22.6mm) | CB, CE, cULus |
|
PLN-45-12LED DRIVER CC AC/DC 9-12V 3.8A |
0 |
|
规格书 |
PLN-45 (45W) | Box | Not For New Designs | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 295VAC | 9 ~ 12V | 3.8A | 46 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP64 | -30°C ~ 50°C | 83.5% | Wire Leads | 7.13" L x 2.42" W x 1.38" H (181.0mm x 61.5mm x 35.0mm) | CB, CE, cURus, PSE, TUV |
|
|
PLN-45-24LED DRIVER CC AC/DC 18-24V 1.9A |
0 |
|
规格书 |
PLN-45 (45W) | Box | Not For New Designs | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 295VAC | 18 ~ 24V | 1.9A | 46 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP64 | -30°C ~ 50°C | 86.5% | Wire Leads | 7.13" L x 2.42" W x 1.38" H (181.0mm x 61.5mm x 35.0mm) | CB, CE, cURus, PSE, TUV |
|
|
ELG-150-24B-3YO/P +24V/6.25A |
0 |
|
规格书 |
ELG-150 (150W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 24V | 6.25A | 150 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 89% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
|
ELG-100-24DA-3YLED AC/DC DRIVER 100W |
0 |
|
规格书 |
ELG-100 (100W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 24V | 4A | 96 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 90°C | 88% | Wire Leads | 6.89" L x 2.48" W x 1.40" H (175.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, UKCA |
|
|
ELG-150-24AB-3YLED AC/DC DRIVER 150W |
0 |
|
规格书 |
ELG-150 (150W) | Box | Active | Not Verified | Constant Current, Voltage | AC DC Converter | 1 | 100VAC | 305VAC | 24V | 6.25A | 150 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP65 | -40°C ~ 90°C | 89% | Wire Leads | 7.68" L x 2.48" W x 1.40" H (195.0mm x 63.0mm x 35.5mm) | CB, CCC, CE, cURus, EAC, ENEC, KC, RCM |
|
ESSV040W-0900-42120 TO 277 VAC, 87% EFFICIENCY, |
0 |
|
规格书 |
ESSV (40W) | Bulk | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 120VAC | 277VAC | 24 ~ 42V | 900mA | 38 W | - | Analog, ELV, Triac | OCP, OTP, SCP | IP66 | - | 87% | Wire Leads | 3.30" L x 1.57" W x 1.07" H (83.8mm x 39.9mm x 27.2mm) | CE, cULus, cURus |
|
|
SMT-M-060CTCC AC/DC 3-65V PGM O/P 0.6-2.1A |
68 |
|
规格书 |
- | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 277VAC | 3 ~ 65V | 2.1A | 60 W | 3.75 kV | Triac | OCP, SCP | IP20 | -30°C ~ 60°C | 80% | Terminal Block | 6.89" L x 2.44" W x 0.94" H (174.9mm x 62.0mm x 24.0mm) | cULus, FCC |
|
LXC36-1050SWLED DRIVER CC AC/DC 18-35V 1.05A |
7 |
|
规格书 |
LXC36 (36W) | Bulk | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 305VAC | 18 ~ 35V | 1.05A | 36 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP67 | -35°C ~ 70°C | 88% | Wire Leads | 7.60" L x 1.67" W x 1.36" H (193.0mm x 42.5mm x 34.5mm) | CE, cULus, EN |
|
|
LD50W-24-C2100-RD12~24V@2100mA, 0~10V Dim to 0% |
28 |
|
规格书 |
LD50W | Bulk | Active | - | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 12 ~ 24V | 2.1A | 50 W | 2500 V | 0-10V | OCP, OVP, SCP | IP66 | -40°C ~ 60°C | 87% | Wire Leads | 7.24" L x 1.69" W x 0.98" H (183.9mm x 42.9mm x 24.9mm) | CE, cURus, FCC |
|
|
LD50W-100-C0500-RD50~100V@500mA, 0~10V Dim to 0% |
23 |
|
规格书 |
LD50W | Bulk | Active | - | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 50 ~ 100V | 500mA | 50 W | 2500 V | 0-10V | OCP, OVP, SCP | IP66 | -40°C ~ 60°C | 89% | Wire Leads | 7.24" L x 1.69" W x 0.98" H (183.9mm x 42.9mm x 24.9mm) | CE, cURus, FCC |
|
|
LD50W-142-C0350-RD71~142V@350mA, 0~10V Dim to 0% |
6 |
|
规格书 |
LD50W | Bulk | Active | - | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 71 ~ 142V | 350mA | 50 W | 2500 V | 0-10V | OCP, OVP, SCP | IP66 | -40°C ~ 60°C | 89% | Wire Leads | 7.24" L x 1.69" W x 0.98" H (183.9mm x 42.9mm x 24.9mm) | CE, cURus, FCC |
|
LD50W-24CV 24V@300~2100mA, Non-Dimming |
27 |
|
规格书 |
LD50W | Bulk | Active | Not Verified | Constant Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 24V | 2.1A | 50 W | 3750 V | Non-Dimmable | OCP, OVP, SCP | IP66 | -30°C ~ 60°C | 84% | Wire Leads | 7.24" L x 1.69" W x 0.98" H (183.9mm x 42.9mm x 24.9mm) | CE, cURus, FCC |
|
CEN-60-42LED DRVR CC AC/DC 31.5-42V 1.45A |
23 |
|
规格书 |
CEN-60 (60W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 295VAC | 31.5 ~ 42V | 1.45A | 61 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP66 | -30°C ~ 70°C | 90% | Wire Leads | 6.46" L x 2.46" W x 1.59" H (164.0mm x 62.5mm x 40.5mm) | CB, CE, cURus, PSE, TUV |
|
|

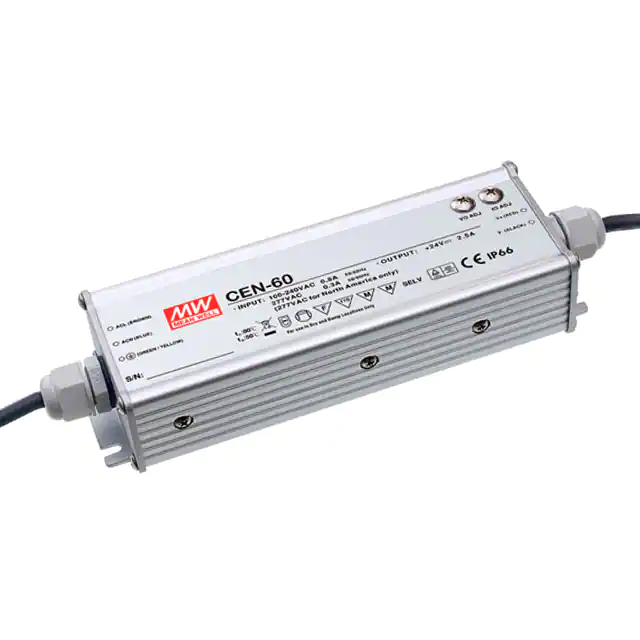

CEN-60-48LED DRIVER CC AC/DC 36-48V 1.3A |
12 |
|
规格书 |
CEN-60 (60W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 90VAC | 295VAC | 36 ~ 48V | 1.3A | 62 W | 3.75 kV | - | OCP, OTP, OVP, SCP | IP66 | -30°C ~ 70°C | 91% | Wire Leads | 6.46" L x 2.46" W x 1.59" H (164.0mm x 62.5mm x 40.5mm) | CB, CE, cURus, PSE, TUV |
