LED 驱动器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 可编程 | 类型 | 拓扑 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 调光 | 特性 | 额定值 | 工作温度 | 效率 | 端接样式 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ODLC-65-1750LED DRVR CC AC/DC 27-36V 1.75A |
9 |
|
规格书 |
ODLC-65 (65W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 295VAC | 27 ~ 36V | 1.75A | 63 W | 3.75 kV | Analog, PWM | SCP | IP67 | -20°C ~ 85°C | 85% | Wire Leads | 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ODLC-65-1400LED DRIVER CC AC/DC 34-46V 1.4A |
8 |
|
规格书 |
ODLC-65 (65W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 295VAC | 34 ~ 46V | 1.4A | 64 W | 3.75 kV | Analog, PWM | SCP | IP67 | -20°C ~ 85°C | 85% | Wire Leads | 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
SMT-M-020CTCC AC/DC 3-42V PGM O/P 250-700MA |
38 |
|
规格书 |
- | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 277VAC | 3 ~ 42V | 700mA | 20 W | 3.75 kV | Triac | OCP, SCP | IP20 | -30°C ~ 60°C | 78% | Terminal Block | 5.72" L x 1.69" W x 0.79" H (145.4mm x 43.0mm x 20.0mm) | cULus, FCC |
|
PWM-60-36LED DRIVER CV AC/DC 36V 1.67A |
0 |
|
规格书 |
PWM-60 (60W) | Box | Active | Not Verified | Constant Voltage | AC DC Converter | 1 | 90VAC | 305VAC | 36V | 1.67A | 60 W | 3.75 kV | Analog, PWM | OCP, OTP, OVP, SCP | IP67 | -40°C ~ 85°C | 90% | Wire Leads | 5.91" L x 2.09" W x 1.38" H (150.0mm x 53.0mm x 35.0mm) | CB, CCC, CE, cURus, ENEC |
|
|
SMT-M-040CTCC AC/DC 3-65V PGM O/P 0.3-1.4A |
85 |
|
规格书 |
- | Box | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 277VAC | 3 ~ 65V | 300mA ~ 1.4A (1.4A Default) | 40 W | 3.75 kV | Triac | OCP, SCP | IP20 | -30°C ~ 60°C | 80% | Terminal Block | 6.20" L x 2.13" W x 0.79" H (157.4mm x 54.0mm x 20.0mm) | cULus, FCC |
|
LD25W-28-C0850-RD14~28V@850mA, 0~10V Dim to 0% |
94 |
|
规格书 |
LD25W | Bulk | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 14 ~ 28V | 850mA | 25 W | 2500 V | 0-10V | OCP, OVP, SCP | IP66 | -40°C ~ 60°C | 82% | Wire Leads | 3.09" L x 3.07" W x 0.99" H (78.5mm x 78.0mm x 25.1mm) | CE, cURus, FCC |
|

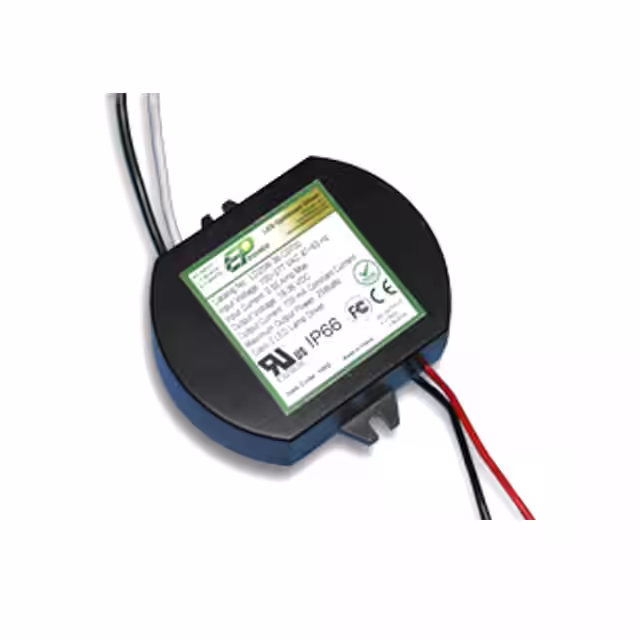

LD25W-20-C1250-RD10~20V@125mA, 0~10V Dim to 0% |
35 |
|
规格书 |
LD25W | Bulk | Active | Not Verified | Constant Current | AC DC Converter | 1 | 100VAC | 305VAC | 10 ~ 20V | 1.25A | 25 W | 2500 V | 0-10V | OCP, OVP, SCP | IP66 | -40°C ~ 60°C | 82% | Wire Leads | 3.09" L x 3.07" W x 0.99" H (78.5mm x 78.0mm x 25.1mm) | CE, cURus, FCC |
|
ODLV-65A-12LED DRIVER CV AC/DC 12V 4.2A |
29 |
|
规格书 |
ODLV-65 (65W) | Box | Obsolete | Not Verified | Constant Voltage | AC DC Converter | 1 | 180VAC | 295VAC | 12V | 4.2A | 50 W | 3.75 kV | Analog, PWM | OCP, SCP | IP67 | -20°C ~ 85°C | 85% | Wire Leads | 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ODLV-65A-24LED DRIVER CV AC/DC 24V 2.4A |
29 |
|
规格书 |
ODLV-65 (65W) | Box | Obsolete | Not Verified | Constant Voltage | AC DC Converter | 1 | 180VAC | 295VAC | 24V | 2.4A | 58 W | 3.75 kV | Analog, PWM | OCP, SCP | IP67 | -20°C ~ 85°C | 87% | Wire Leads | 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ODLV-65A-48LED DRIVER CV AC/DC 48V 1.35A |
27 |
|
规格书 |
ODLV-65 (65W) | Box | Obsolete | Not Verified | Constant Voltage | AC DC Converter | 1 | 180VAC | 295VAC | 48V | 1.35A | 65 W | 3.75 kV | Analog, PWM | OCP, SCP | IP67 | -20°C ~ 85°C | 89% | Wire Leads | 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ODLV-65A-36LED DRIVER CV AC/DC 36V 1.8A |
24 |
|
规格书 |
ODLV-65 (65W) | Box | Obsolete | Not Verified | Constant Voltage | AC DC Converter | 1 | 180VAC | 295VAC | 36V | 1.8A | 65 W | 3.75 kV | Analog, PWM | OCP, SCP | IP67 | -20°C ~ 85°C | 88% | Wire Leads | 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ODLV-65A-60LED DRIVER CV AC/DC 60V 1.08A |
17 |
|
规格书 |
ODLV-65 (65W) | Box | Obsolete | Not Verified | Constant Voltage | AC DC Converter | 1 | 180VAC | 295VAC | 60V | 1.08A | 65 W | 3.75 kV | Analog, PWM | OCP, SCP | IP67 | -20°C ~ 85°C | 90% | Wire Leads | 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
SET-12060A12VDC 60W UL LISTED PHASE DIM |
40 |
|
规格书 |
SET (60W) | Box | Active | Not Verified | Constant Voltage | AC DC Converter | 1 | 100VAC | 130VAC | 12V | 5A | 60 W | 1.88 kV | ELV, MLV, TRIAC | OCP, SCP | IP67 | -40°C ~ 60°C | 88% | Wire Leads | 2.83" L x 1.53" W x 0.89" H (72.0mm x 39.0mm x 22.5mm) | cULus, FCC |
|
|
SET-24060A24VDC 60W UL LISTED PHASE DIM |
22 |
|
规格书 |
SET (60W) | Box | Active | Not Verified | Constant Voltage | AC DC Converter | 1 | 100VAC | 130VAC | 24V | 2.5A | 60 W | 1.88 kV | ELV, MLV, TRIAC | OCP, SCP | IP67 | -40°C ~ 60°C | 88% | Wire Leads | 2.83" L x 1.53" W x 0.89" H (72.0mm x 39.0mm x 22.5mm) | cULus, FCC |
|

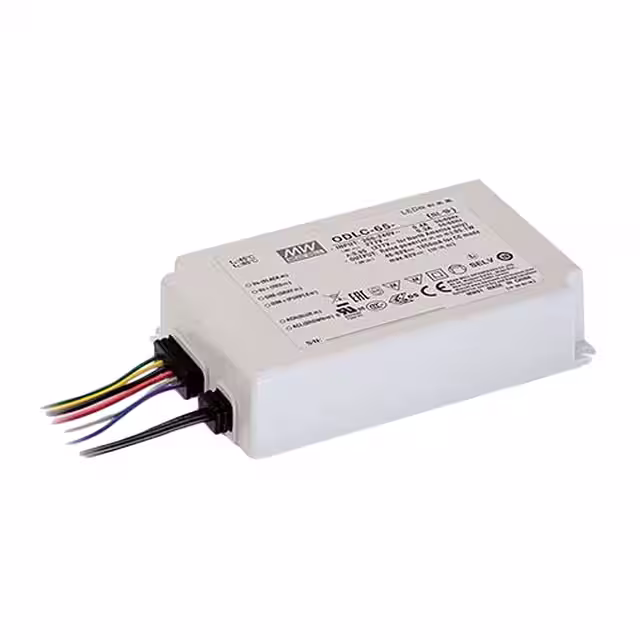

ODLC-65-1050DALED DRIVERS POWER SUPPLIES 65.1W |
11 |
|
规格书 |
ODLC-65 (65W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 295VAC | 46 ~ 62V | 1.05A | 65 W | 3.75 kV | - | SCP | IP67 | -20°C ~ 85°C | 86% | Wire Leads | 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, EAC, ENEC, RCM |
|
|
ODLC-65A-1050LED DRVR CC AC/DC 46-62V 1.05A |
29 |
|
规格书 |
ODLC-65 (65W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 295VAC | 46 ~ 62V | 1.05A | 65 W | 3.75 kV | Analog, PWM | SCP | IP67 | -20°C ~ 85°C | 86% | Wire Leads | 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ODLC-65A-1400LED DRIVER CC AC/DC 34-46V 1.4A |
29 |
|
规格书 |
ODLC-65 (65W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 295VAC | 34 ~ 46V | 1.4A | 64 W | 3.75 kV | Analog, PWM | SCP | IP67 | -20°C ~ 85°C | 85% | Wire Leads | 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
ODLC-65A-1750LED DRVR CC AC/DC 27-36V 1.75A |
29 |
|
规格书 |
ODLC-65 (65W) | Box | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 180VAC | 295VAC | 27 ~ 36V | 1.75A | 63 W | 3.75 kV | Analog, PWM | SCP | IP67 | -20°C ~ 85°C | 85% | Wire Leads | 4.76" L x 3.03" W x 1.12" H (121.0mm x 77.0mm x 28.5mm) | CB, CCC, CE, cURus, ENEC |
|
|
PSB50E-1400-34-T220 TO 240 VAC, 90% EFFICIENCY, |
0 |
|
- |
PSB50 (50W) | Box | Obsolete | - | Constant Current | AC DC Converter | 1 | 220VAC | 240VAC | 30.6V | 1.4A | 48 W | - | Analog, ELV, Triac | OCP, OTP, SCP | IP20, NEMA 410 | -10°C ~ 50°C | 90% | Terminal Block | 3.88" L x 1.03" W x 0.86" H (98.5mm x 26.2mm x 21.9mm) | CB, CE, ENEC |
|
ERM060W-1750-40LED DRIVER CC AC/DC 30-40V 1.75A |
0 |
|
规格书 |
ERM (70W) | Bulk | Obsolete | Not Verified | Constant Current | AC DC Converter | 1 | 120VAC | 277VAC | 30 ~ 40V | 1.75A | 70 W | - | Analog | OCP, OTP, SCP | IP64 | -30°C ~ 90°C | 90% | Wire Leads | 3.21" L x 2.21" W x 1.28" H (81.5mm x 56.1mm x 32.5mm) | cUL, UL, cRUcs, FC, CE, CB |
