LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXB3590-0000-000R0HCD30HLED COB XLAMP WARM WHT SQU 3000K |
0 |
|
规格书 |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 12500lm (12000lm ~ 13000lm) | 1.2A | 85°C | 72V | 145 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXB3590-0000-000R0HDB40HLED COB XLAMP NEUT WHT SQU 4000K |
0 |
|
规格书 |
XLamp® CXB3590 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 13500lm (13000lm ~ 14000lm) | 1.2A | 85°C | 72V | 156 lm/W | 1.8A | 80 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CVM-32-31-95-54-TC40-F5-2STUDIO COBS |
0 |
|
规格书 |
CVM-32 Gen4 | Tray | Active | Chip On Board (COB) | White, Warm | 3150K 2-Step MacAdam Ellipse | - | Square | 28100lm (Typ) | 5A | 85°C | 55.1V | 102 lm/W | 6A | 95 | 120° | - | 38.00mm L x 38.00mm W | 1.37mm | 33.00mm Dia | Flat |
|
|
CVM-32-56-95-54-TC42-F5-2STUDIO COBS |
0 |
|
规格书 |
CVM-32 Gen4 | Tray | Active | Chip On Board (COB) | White, Cool | 5600K 2-Step MacAdam Ellipse | - | Square | 30000lm (Typ) | 5A | 85°C | 55.1V | 109 lm/W | 6A | 95 | 120° | - | 38.00mm L x 38.00mm W | 1.37mm | 33.00mm Dia | Flat |
|
|
CBT-90-G-L11-CM101-R2LED MOD CBT-90 GREEN RECT |
0 |
|
规格书 |
CBT-90 | Tray | Active | LED Module | Green | - | 527nm | Rectangle | 2150lm (2000lm ~ 2300lm) | 13.5A | 40°C | 3.1V | 35 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
CBT-90-G-L11-CK101LED MOD CBT-90 GREEN RECT |
0 |
|
规格书 |
CBT-90 | Tray | Active | LED Module | Green | - | 528nm (520nm ~ 535nm) | Rectangle | 1750lm (1500lm ~ 2000lm) | 13.5A | 40°C | 4.5V | 29 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
|
CXA3590-0000-000N0UAB57FLED COB XLAMP COOL WHT SQU 5700K |
0 |
|
规格书 |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 2.4A | 85°C | 36V | 101 lm/W | 3.6A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
|
CXA3590-0000-000R0UAB57FLED COB XLAMP COOL WHT SQU 5700K |
0 |
|
规格书 |
XLamp® CXA3590 | Tray | Active | Chip On Board (COB) | White, Cool | 5700K 4-Step MacAdam Ellipse | - | Square | 8750lm (8500lm ~ 9000lm) | 1.2A | 85°C | 77V | 95 lm/W | 1.8A | 90 | 115° | - | 34.85mm L x 34.85mm W | 1.70mm | 30.00mm Dia | Flat |
|
CBT-90-B-L11-H100LED MOD CBT-90 BLUE RECT |
0 |
|
规格书 |
CBT-90 | Tray | Active | LED Module | Blue | - | 458nm (445nm ~ 470nm) | Rectangle | - | 13.5A | 40°C | 3.5V | - | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|

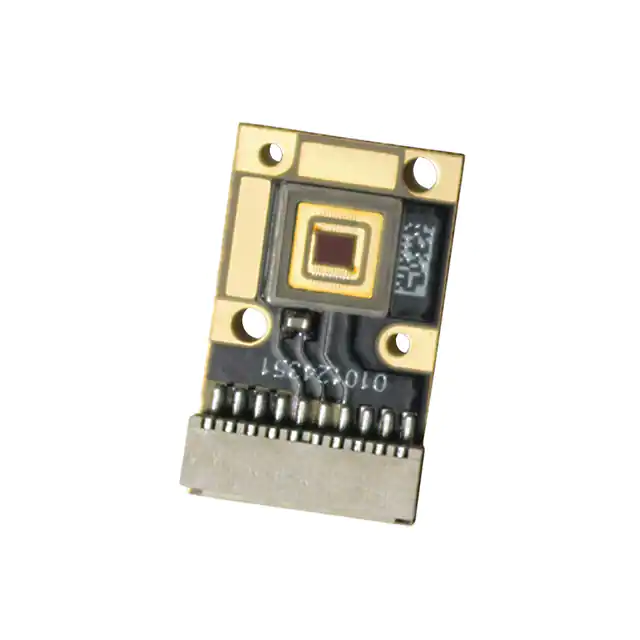

PT-54-RAX-L35-MPLLED MOD PT-54 RED RECT |
0 |
|
规格书 |
PT-54 | Tray | Active | LED Module | Red | - | 613nm | Rectangle | 1360lm (1200lm ~ 1520lm) | 13.5A | 40°C | 3V | 34 lm/W | - | - | - | With Connector | 26.50mm L x 16.00mm W | 6.40mm | 2.00mm L x 2.70mm W | Flat |
|
|
LSR4-12C48-3070-00L2 BOARD, XHP35.2, RECTANGULAR, |
0 |
|
规格书 |
XHP35.2 | Tray | Active | LED Module | White, Warm | 3000K | - | Rectangle | 6600lm (Typ) | 1.05A | 85°C | 44.8V | 140 lm/W | 3.15A | 70 | - | IP67 | 146.60mm L x 45.00mm W | - | - | Flat |
|
|
LSR4-12C48-4070-00L2 BOARD, XHP35.2, RECTANGULAR, |
0 |
|
规格书 |
XHP35.2 | Tray | Active | LED Module | White, Neutral | 4000K | - | Rectangle | 7080lm (Typ) | 1.05A | 85°C | 44.8V | 151 lm/W | 3.15A | 70 | - | IP67 | 146.60mm L x 45.00mm W | - | - | Flat |
|
|
LSR4-12C48-5770-00L2 BOARD, XHP35.2, RECTANGULAR, |
0 |
|
规格书 |
XHP35.2 | Tray | Active | LED Module | White, Warm | 5700K | - | Rectangle | 7080lm (Typ) | 1.05A | 85°C | 44.8V | 151 lm/W | 3.15A | 70 | - | IP67 | 146.60mm L x 45.00mm W | - | - | Flat |
|
|
LSR4-12C48-5070-00L2 BOARD, XHP35.2, RECTANGULAR, |
0 |
|
规格书 |
XHP35.2 | Tray | Active | LED Module | White, Warm | 5000K | - | Rectangle | 7080lm (Typ) | 1.05A | 85°C | 44.8V | 151 lm/W | 3.15A | 70 | - | IP67 | 146.60mm L x 45.00mm W | - | - | Flat |
|
|
LSR4-12C48-4080-00L2 BOARD, XHP35.2, RECTANGULAR, |
0 |
|
规格书 |
XHP35.2 | Tray | Active | LED Module | White, Neutral | 4000K | - | Rectangle | 6600lm (Typ) | 1.05A | 85°C | 44.8V | 140 lm/W | 3.15A | 80 | - | IP67 | 146.60mm L x 45.00mm W | - | - | Flat |
|
|
LSR4-12C48-2780-00L2 BOARD, XHP35.2, RECTANGULAR, |
0 |
|
规格书 |
XHP35.2 | Tray | Active | LED Module | White, Warm | 2700K | - | Rectangle | 5700lm (Typ) | 1.05A | 85°C | 44.8V | 121 lm/W | 3.15A | 80 | - | IP67 | 146.60mm L x 45.00mm W | - | - | Flat |
|
|
LSR4-12C48-5080-00L2 BOARD, XHP35.2, RECTANGULAR, |
0 |
|
规格书 |
XHP35.2 | Tray | Active | LED Module | White, Warm | 5000K | - | Rectangle | 6600lm (Typ) | 1.05A | 85°C | 44.8V | 140 lm/W | 3.15A | 80 | - | IP67 | 146.60mm L x 45.00mm W | - | - | Flat |
|
|
LSR4-12C48-3080-00L2 BOARD, XHP35.2, RECTANGULAR, |
0 |
|
规格书 |
XHP35.2 | Tray | Active | LED Module | White, Warm | 3000K | - | Rectangle | 6120lm (Typ) | 1.05A | 85°C | 44.8V | 130 lm/W | 3.15A | 80 | - | IP67 | 146.60mm L x 45.00mm W | - | - | Flat |
|
|
LSR4-12C48-5780-00L2 BOARD, XHP35.2, RECTANGULAR, |
0 |
|
规格书 |
XHP35.2 | Tray | Active | LED Module | White, Warm | 5700K | - | Rectangle | 6600lm (Typ) | 1.05A | 85°C | 44.8V | 140 lm/W | 3.15A | 80 | - | IP67 | 146.60mm L x 45.00mm W | - | - | Flat |
|
SBR-90-R-R75-HM101LED MOD SBR-90 RED STARBOARD |
0 |
|
规格书 |
SBR-90 | Tray | Active | LED Module | Red | - | 620nm | Starboard | 1350lm (Typ) | 13.5A | 25°C | 2.7V | 37 lm/W | 13.5A | - | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W | Flat |
