LED COB、引擎、模块、灯条
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 颜色 | 相关色温 (CCT)（K） | 波长 | 配置 | 光通量 @ 电流/温度 | 电流 - 测试 | 测试温度 | 电压 - 正向 (Vf)（典型值） | 流明/瓦特 @ 电流 - 测试 | 电流 - 最大值 | 显色指数 (CRI) | 视角 | 特性 | 尺寸 / 尺寸 | 高度 | 发光表面 (LES) | 透镜类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LZP-D0WW0R-0230LED MOD LZP WM WH STARBRD 3000K |
0 |
|
规格书 |
LZP | Tray | Obsolete | LED Module | White, Warm | 3000K | - | Starboard | 3600lm (2900lm ~ 3800lm) | 4 x 700mA | 25°C | 18.9V | 68 lm/W | 1A | 83 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia | Domed |
|
|
LZP-D0WW0R-0235LED MOD LZP WM WH STARBRD 3500K |
0 |
|
规格书 |
LZP | Tray | Obsolete | LED Module | White, Warm | 3500K | - | Starboard | 3600lm (2900lm ~ 3800lm) | 4 x 700mA | 25°C | 18.9V | 68 lm/W | 1A | 83 (Typ) | 110° | - | 28.00mm Dia | 8.10mm | 10.45mm Dia | Domed |
|

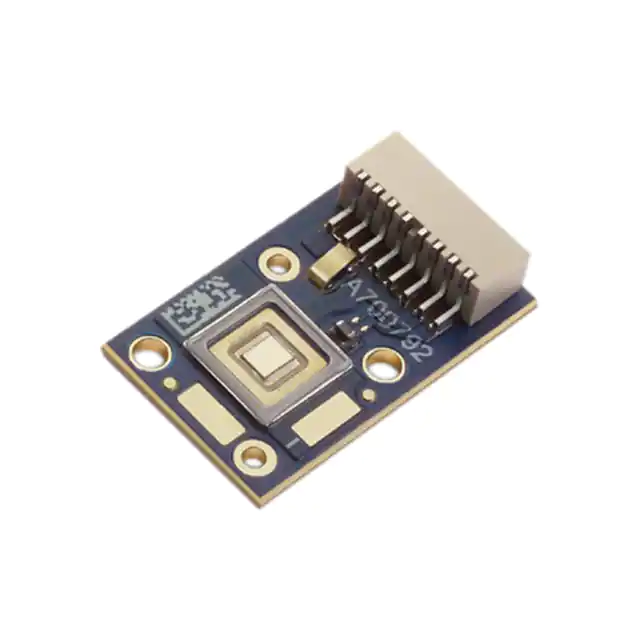

PT-54-B-L31-EPFLED MOD PT-54 BLUE RECT |
0 |
|
规格书 |
PT-54 | Tray | Obsolete | LED Module | Blue | - | 462nm | Rectangle | 495lm (400lm ~ 590lm) | 13.5A | 40°C | 3.7V | 10 lm/W | - | - | - | With Connector | 26.50mm L x 16.00mm W | 6.40mm | 2.00mm L x 2.70mm W | Flat |
|
|
LML6LVCWXXLED ENG PWM WHT LNR STRP 5600K |
0 |
|
规格书 |
PWM LV | Box | Active | LED Engine | White, Cool | 5600K | - | Linear Light Strip, Plug and Play | - | - | - | - | - | - | - | - | - | 297.18mm L x 38.05mm W | 16.50mm | - | Flat |
|
SBR-70-B-R75-KG300LED MOD SBR-70 BLUE STARBOARD |
0 |
|
规格书 |
SBR-70 | Tray | Active | LED Module | Blue | - | 445nm | Starboard | 200lm (Typ) | 10.5A | 25°C | 3.8V | 5 lm/W | 10.5A | - | - | - | 19.90mm Dia | 3.44mm | 3.00mm Dia | Flat |
|
SBR-90-R-F75-HM100LED MOD SBR-90 RED STARBOARD |
0 |
|
规格书 |
SBR-90 | Tray | Active | LED Module | Red | - | 621nm (615nm ~ 627nm) | Starboard | 860lm (Typ) | 13.5A | 25°C | 2.7V | 24 lm/W | 13.5A | - | - | - | 19.90mm Dia | 3.50mm | 3.00mm L x 3.00mm W | Flat |
|
|
CBT-90-G-L11-CM100-R2LED MOD CBT-90 GREEN RECT |
0 |
|
规格书 |
CBT-90 | Tray | Active | LED Module | Green | - | 527nm | Rectangle | 2150lm (2000lm ~ 2300lm) | 13.5A | 40°C | 3.1V | 35 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
CBT-90-G-L11-CK100LED MOD CBT-90 GREEN RECT |
0 |
|
规格书 |
CBT-90 | Tray | Active | LED Module | Green | - | 525nm (510nm ~ 540nm) | Rectangle | 1750lm (1500lm ~ 2000lm) | 13.5A | 40°C | 4.5V | 29 lm/W | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
CBT-90-B-L11-G101LED MOD CBT-90 BLUE RECT |
0 |
|
规格书 |
CBT-90 | Tray | Active | LED Module | Blue | - | 455nm (450nm ~ 460nm) | Rectangle | - | 13.5A | 40°C | 3.5V | - | 27A | - | - | With Connector | 28.00mm L x 26.75mm W | 4.08mm | 3.00mm L x 3.00mm W | Flat |
|
CLU056-1825C1-50AL7G4LED COB CLU056 COOL WHT SQ 5000K |
0 |
|
规格书 |
CLU056 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 18622lm (Typ) | 2.25A | 85°C | 52V | 159 lm/W | 5.75A | 70 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU056-1825C1-403M2G2LED COB CLU056 NEUT WHT SQ 4000K |
0 |
|
规格书 |
CLU056 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 16985lm (Typ) | 2.25A | 85°C | 52V | 145 lm/W | 5.75A | 80 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU056-1825C1-503M2G2LED COB CLU056 COOL WHT SQ 5000K |
0 |
|
规格书 |
CLU056 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 17243lm (Typ) | 2.25A | 85°C | 52V | 147 lm/W | 5.75A | 80 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU056-1825C1-273H5G3LED COB CLU056 WARM WHT SQ 2700K |
0 |
|
规格书 |
CLU056 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 13033lm (Typ) | 2.25A | 85°C | 52V | 111 lm/W | 5.75A | 90 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
CLU058-1825C4-30AL7K3LED COB CLU058 WM WHT SQ 3000K |
0 |
|
规格书 |
CLU058 | Tray | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 18382lm (Typ) | 2.25A | 85°C | 52V | 157 lm/W | 5.75A | 70 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU058-1825C4-503M2K1LED COB CLU058 COOL WHT SQ 5000K |
0 |
|
规格书 |
CLU058 | Tray | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 18191lm (Typ) | 2.25A | 85°C | 52V | 155 lm/W | 5.75A | 80 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU058-1825C4-653M2K1LED COB CLU058 COOL WHT SQ 6500K |
0 |
|
规格书 |
CLU058 | Tray | Active | Chip On Board (COB) | White, Cool | 6500K 3-Step MacAdam Ellipse | - | Square | 18520lm (Typ) | 2.25A | 85°C | 52V | 158 lm/W | 5.75A | 80 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU058-1825C4-40AL7K3LED COB CLU058 NEUT WHT SQ 4000K |
0 |
|
规格书 |
CLU058 | Tray | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 18986lm (Typ) | 2.25A | 85°C | 52V | 162 lm/W | 5.75A | 70 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU058-1825C4-273M2K1LED COB CLU058 WARM WHT SQ 2700K |
0 |
|
规格书 |
CLU058 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 16645lm (Typ) | 2.25A | 85°C | 52V | 142 lm/W | 5.75A | 80 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU058-1825C4-273H5K2LED COB CLU058 WARM WHT SQ 2700K |
0 |
|
规格书 |
CLU058 | Tray | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 13750lm (Typ) | 2.25A | 85°C | 52V | 118 lm/W | 5.75A | 90 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
|
|
CLU058-1825C4-353H5K2LED COB CLU058 WARM WHT SQ 3500K |
0 |
|
规格书 |
CLU058 | Tray | Obsolete | Chip On Board (COB) | White, Warm | 3500K 3-Step MacAdam Ellipse | - | Square | 14648lm (Typ) | 2.25A | 85°C | 52V | 125 lm/W | 5.75A | 90 | - | - | 38.00mm L x 38.00mm W | 1.40mm | 32.80mm Dia | Flat |
