上传BOM
联锁开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4NS-1BFINTERLOCK NON-LOCKING DPST |
2 |
|
规格书 |
D4NS | Bulk | Active | Non-Locking | DPST-NC | 3A (AC) | 240VAC | - | 6kgf | Panel Disconnect | Screw Terminal | - | - | - | PG13.5 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
D4NS-2BFINTERLOCK NON-LOCKING DPST |
7 |
|
规格书 |
D4NS | Bulk | Active | Non-Locking | DPST-NC | 3A (AC) | 240VAC | - | 6kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
D4NS-2DFINTERLOCK NON-LOCKING 3PST |
8 |
|
规格书 |
D4NS | Bulk | Active | Non-Locking | 3PST-NC | 3A (AC) | 240VAC | - | 6kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
GLS-1LINTERLOCK MAGNETIC SPST |
3 |
|
规格书 |
GLS | Box | Active | Magnetic | SPST-NO | 100mA (DC) | 100VDC | - | - | Non-Contact | Wire Leads | - | 15mm | - | - | -20°C ~ 60°C | IP40 | CCC, CE |
|
D4NS-1DFINTERLOCK NON-LOCKING 3PST |
3 |
|
规格书 |
D4NS | Bulk | Active | Non-Locking | 3PST-NC | 3A (AC) | 240VAC | - | 6kgf | Panel Disconnect | Screw Terminal | - | - | - | PG13.5 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
PXS70150INTERLOCK MAGNETIC 3PST 5M |
15 |
|
规格书 |
PXS | Box | Active | Magnetic | 3PST-2NC/1NO | 10mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | Status Indicator | 8mm | 20mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cURus |
|

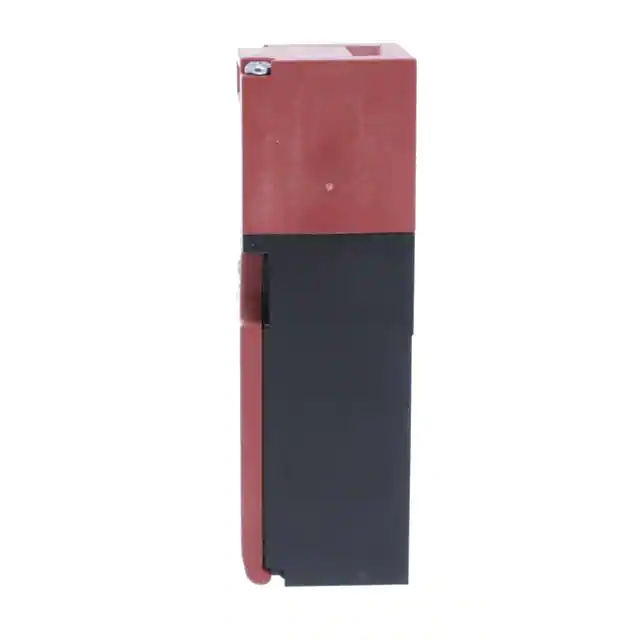

XCSPA793INTERLOCK NON-LOCKING DPST |
10 |
|
规格书 |
XCSPA | Box | Active | Non-Locking | DPST-NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | 1kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
6025059INTERLOCK NON-LOCKING 3PST |
4 |
|
规格书 |
i12S | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 3A (AC), 2A (DC) | 240VAC, 24VDC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | M16 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus |
|

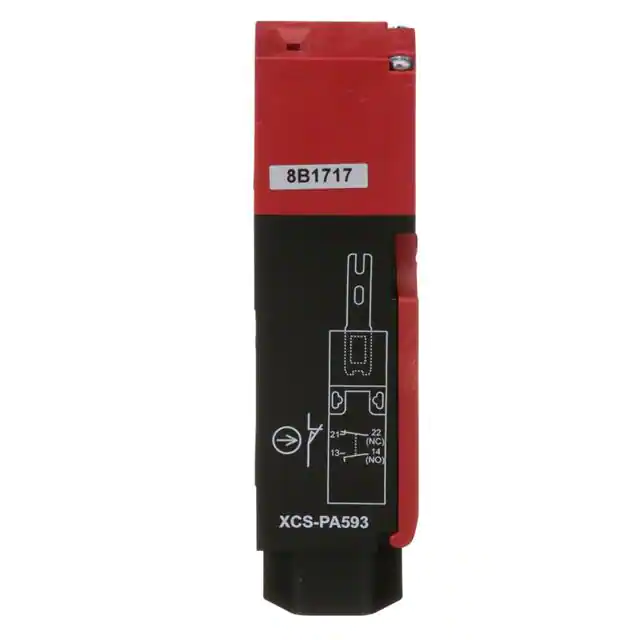

XCSPA593INTERLOCK NON-LOCKING DPST |
2 |
|
规格书 |
XCSPA | Box | Active | Non-Locking | DPST-NO/NC | 6A (AC), 550mA (DC) | 120VAC, 125VDC | - | 1kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
|
6025067INTERLOCK NON-LOCKING 3PST |
2 |
|
规格书 |
i17S | Bulk | Active | Non-Locking | 3PST-2NC/1NO | 3A (AC), 2A (DC) | 240VAC, 24VDC | - | 1kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus |
|
D4BS-4AFSINTERLOCK NON-LOCKING DPST |
6 |
|
规格书 |
D4BS | Bulk | Active | Non-Locking | DPST-NC | 10A (AC) | 120VAC | - | 2kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 | -40°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, CSA, UL |
|
D4GS-N1TINTERLOCK NON-LOCKING DPST |
22 |
|
规格书 |
D4GS-N | Bulk | Active | Non-Locking | DPST-NO/NC | 750mA (AC) | 240VAC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | - | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
D4NH-4BBC-NPTINTERLOCK HINGE DPST |
5 |
|
规格书 |
D4NH | Bulk | Active | Hinge | DPST-NC | 10A (AC), 2.5A (DC) | 120VAC, 125VDC | - | - | Arm Lever | Screw Terminal | - | - | - | M20 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

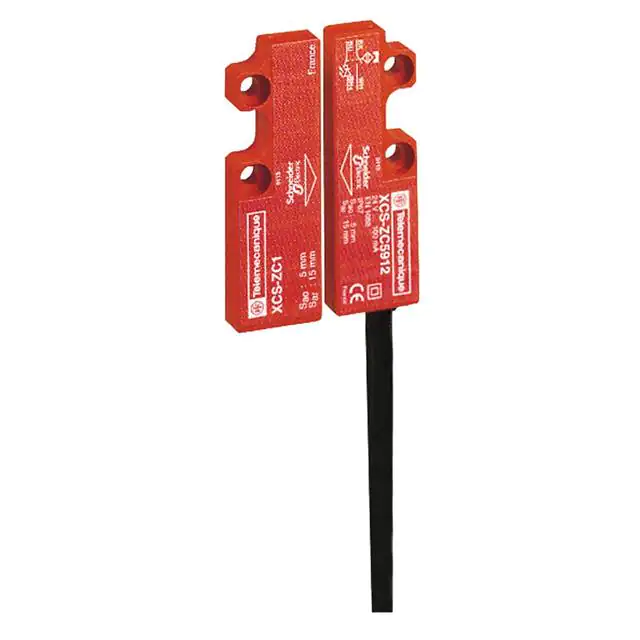

XCSDMC7902INTERLOCK MAGNETIC DPST |
5 |
|
规格书 |
XCSD | Box | Active | Magnetic | DPST-NC | 100mA (DC) | 24VDC | - | - | Non-Contact | Cable Leads | - | 5mm | 15mm | - | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CSA, UL |
|

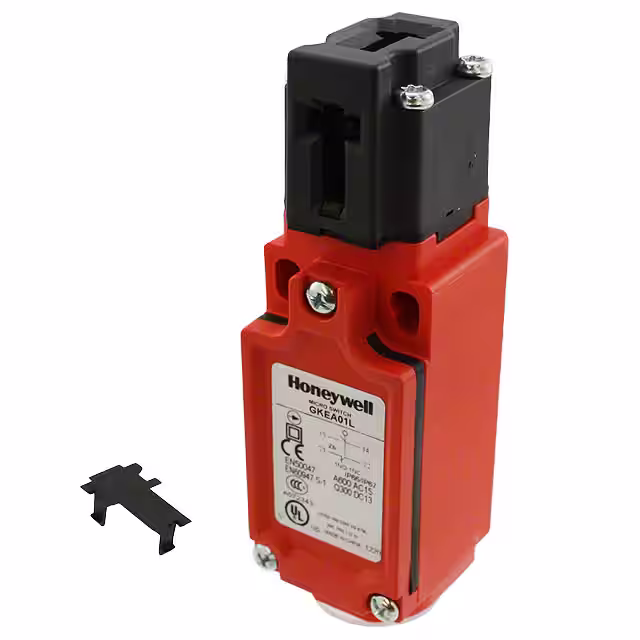

GKEA01LINTERLOCK NON-LOCKING DPST |
6 |
|
规格书 |
GKE | Bulk | Active | Non-Locking | DPST-NO/NC | 6A (AC), 2.8A (DC) | 120VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 85°C | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | CCC, CE, cULus |
|
T2007-11SMINTERLOCK NON-LOCKING DPST |
6 |
|
规格书 |
T2007 | Bulk | Active | Non-Locking | DPST-NO/NC | 5A (AC), 2A (DC) | 100VAC, 24VDC | - | 612gf | Panel Disconnect | Screw Terminal | - | - | - | M16 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
T2007-11TMINTERLOCK NON-LOCKING DPST |
3 |
|
规格书 |
T2007 | Bulk | Active | Non-Locking | DPST-NO/NC | 5A (AC), 2A (DC) | 100VAC, 24VDC | - | 612gf | Panel Disconnect | Screw Terminal | - | - | - | M16 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
SI-RFPT-UP5INTERLOCK SW RFID UNIQUE CODE |
7 |
|
规格书 |
SI-RF | Bulk | Active | RFID | - | 100mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable with Connector (M12) | Automatic Reset | 10mm | 25mm | - | -25°C ~ 70°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
D4GS-N2TINTERLOCK NON-LOCKING DPST |
6 |
|
规格书 |
D4GS-N | Bulk | Active | Non-Locking | DPST-NC | 750mA (AC) | 240VAC | - | 6kgf | Panel Disconnect | Cable Leads | Cable Length 1m | - | - | - | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
D4NS-9BFINTERLOCK NON-LOCKING DPST |
4 |
|
规格书 |
D4NS | Bulk | Active | Non-Locking | DPST-NC | 3A (AC) | 240VAC | - | 6kgf | Panel Disconnect | Screw Terminal | - | - | - | M12 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
