| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电路 | 电流额定值（安培） | 电压额定值 | 电压 - 电源 | 保持力 | 执行器类型 | 端接样式 | 特性 | 必须操作 | 必须释放 | 导管螺纹尺寸 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-LS42DMGINTERLOCK SOLENOID LOCKING DPST |
17 |
|
规格书 |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC x 2 | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
SI-LS42DSIINTERLOCK SOLENOID RELEASE 3PST |
9 |
|
规格书 |
SI-LS42 | Bulk | Active | Solenoid Release | 3PST-2NC/1NO + SPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
SI-LS42DMIINTERLOCK SOLENOID LOCKING 3PST |
6 |
|
规格书 |
SI-LS42 | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + SPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

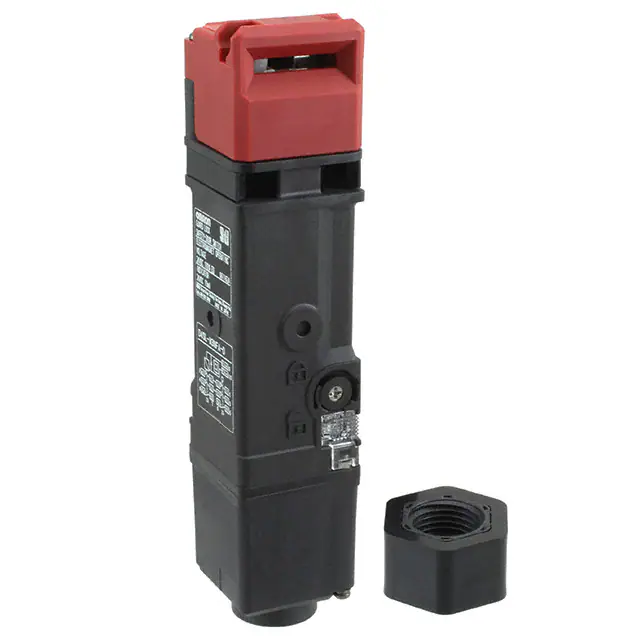

D4SL-N3NFA-DINTERLOCK SOLENOID RELEASE 3PST |
12 |
|
规格书 |
D4SL-N | Bulk | Active | Solenoid Release | 3PST-2NC/1NO x 2 | 1.5A (AC), 220mA (DC) | 120VAC, 125VDC | 24VDC | 6kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | 1/2" NPT | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cURus, TUV |
|

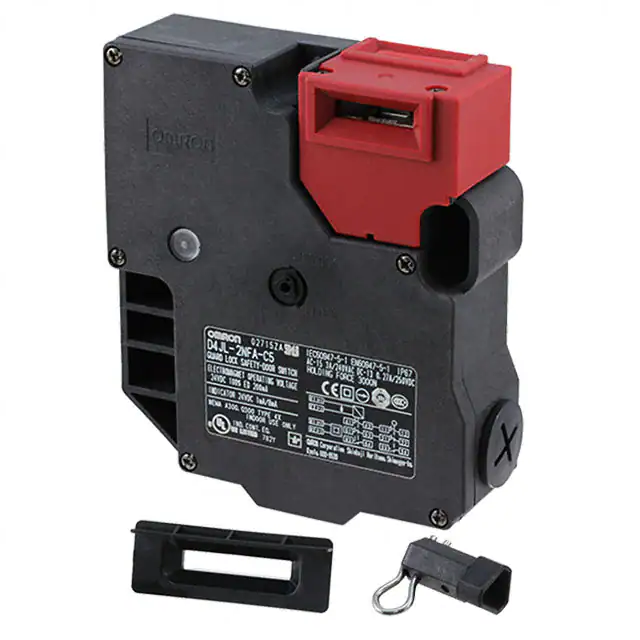

D4JL-2NFA-C5INTERLOCK SOLENOID RELEASE 3PST |
16 |
|
规格书 |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 306kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 x2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

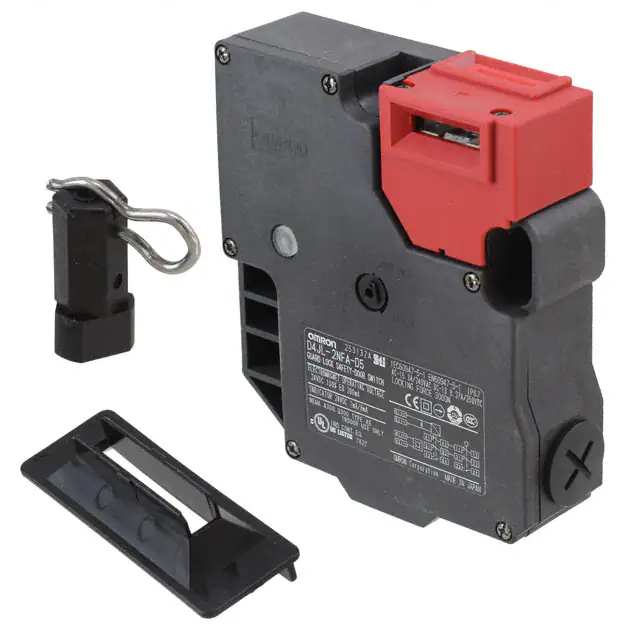

D4JL-2NFA-D5INTERLOCK SOLENOID RELEASE 3PST |
8 |
|
规格书 |
D4JL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 306kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 x2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

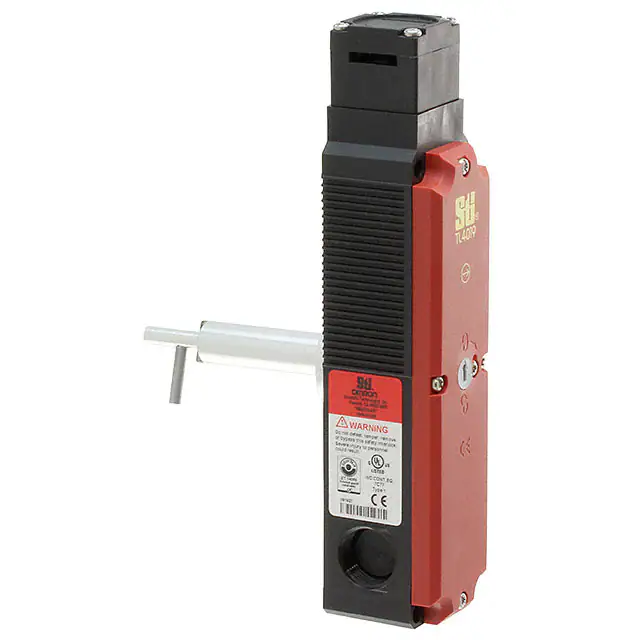

TL4019-30241RRINTERLOCK SOLENOID RELEASE 4PST |
2 |
|
规格书 |
TL4019 | Bulk | Active | Solenoid Release | 4PST-2NO/2NC (DB/DM) | 4A (AC/DC) | 230VAC, 24VDC | 24VAC/DC | 122kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 x3 | -20°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

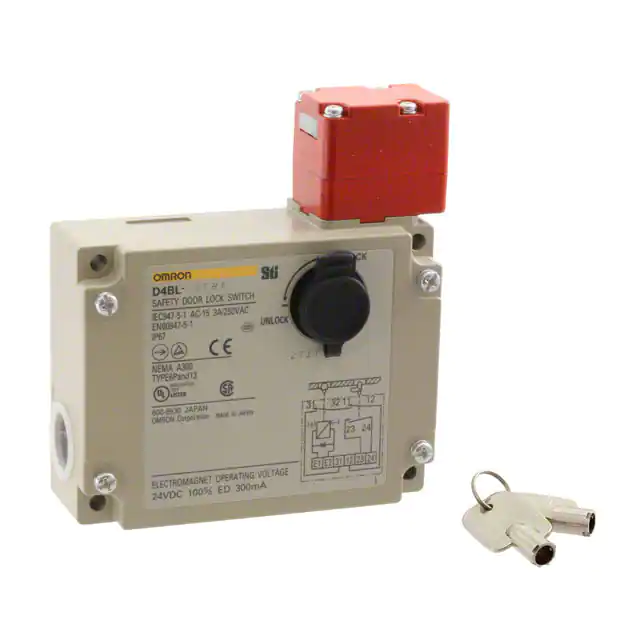

D4BL-2CRAINTERLOCK SOLENOID RELEASE DPST |
24 |
|
规格书 |
D4BL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) + SPST-NC (DB) | 3A (AC) | 250VAC | 24VDC | 71kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, CSA, UL |
|
D4BL-2DRGINTERLOCK SOLENOID LOCKING DPST |
3 |
|
规格书 |
D4BL | Bulk | Active | Solenoid Locking | DPST-NC (DB) + SPST-NC (DB) | 3A (AC) | 250VAC | 24VDC | 71kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, CSA, UL |
|
TL5012-1024SMINTERLOCK SOLENOID RELEASE 3PST |
11 |
|
规格书 |
TL5012 | Bulk | Active | Solenoid Release | 3PST-2NC/1NO | 5A (AC), 2A (DC) | 100VAC, 24VDC | 24VAC/DC | 102kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 | -20°C ~ 60°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
TL5012-1110SMINTERLOCK SOLENOID RELEASE 3PST |
5 |
|
规格书 |
TL5012 | Bulk | Active | Solenoid Release | 3PST-2NC/1NO | 5A (AC), 2A (DC) | 100VAC, 24VDC | 110VAC | 102kgf | Panel Disconnect | Screw Terminal | - | - | - | M20 | -20°C ~ 60°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D40ML-P2-B-M12INTERLOCK RFID DPST |
3 |
|
规格书 |
D40ML | Bulk | Active | RFID | DPST-NC | 200mA (DC) | 24VDC | 24VDC | 91kgf | Non-Contact | Cable with Connector (M12) | Status Indicator, Magnetic Latching | 1mm | 10mm | - | -25°C ~ 40°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
GLS-S1INTERLOCK MAGNETIC SPST |
32 |
|
规格书 |
GLS | Bulk | Active | Magnetic | SPST-NO | 100mA (DC) | 100VDC | - | - | Non-Contact | Screw Terminal | - | 15mm | - | - | -20°C ~ 60°C | IP40 | CCC, CE |
|

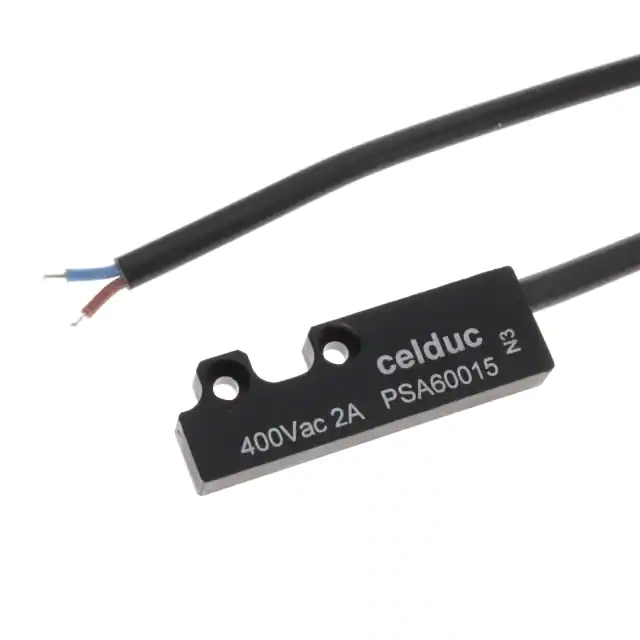

PSA60015INTERLOCK MAGNETIC SPST |
9 |
|
规格书 |
PSA | Box | Active | Magnetic | SPST-NO | 3A (AC) | 440VAC | - | - | Non-Contact | Cable Leads | - | 15mm | - | - | -25°C ~ 85°C | IP67 - Dust Tight, Waterproof | CE |
|
SI-LS83DINTERLOCK NON-LOCKING DPST |
20 |
|
规格书 |
SI-LS83 | Bulk | Active | Non-Locking | DPST-NO/NC | 10A (AC), 6A (DC) | 110VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M16 | -30°C ~ 80°C | IP65 - Dust Tight, Water Resistant | CE, CSA, UL |
|
SI-LS83EINTERLOCK SWITCH DPST |
16 |
|
规格书 |
SI-LS83 | Box | Active | - | DPST-NO | 10A (AC), 6A (DC) | 100VAC, 24VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M20 | -30°C ~ 80°C | IP65 - Dust Tight, Water Resistant | CE, CSA, UL |
|
D4NS-1AFINTERLOCK NON-LOCKING DPST |
22 |
|
规格书 |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 3A (AC) | 240VAC | - | 6kgf | Panel Disconnect | Screw Terminal | - | - | - | PG13.5 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
HS5D-11RNINTERLOCK NON-LOCKING DPST |
5 |
|
规格书 |
HS5D | Bulk | Active | Non-Locking | DPST-NO/NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 6kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
HS5D-02RNINTERLOCK NON-LOCKING DPST |
4 |
|
规格书 |
HS5D | Bulk | Active | Non-Locking | DPST-NC | 2.5A (AC/DC) | 125VAC, 30VDC | - | 5kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
D4NS-2AFINTERLOCK NON-LOCKING DPST |
16 |
|
规格书 |
D4NS | Bulk | Active | Non-Locking | DPST-NO/NC | 3A (AC) | 240VAC | - | 6kgf | Panel Disconnect | Screw Terminal | - | - | - | G1/2 | -30°C ~ 70°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
