工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

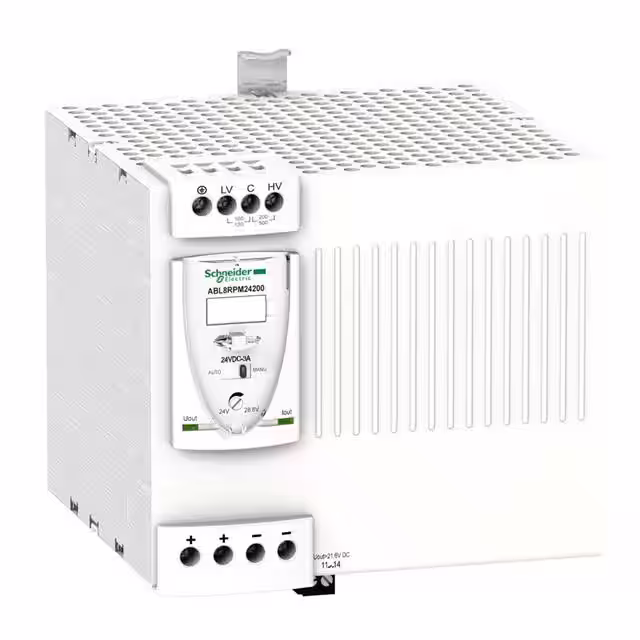

ABL8RPM24200AC/DC DIN RAIL SUPPLY 24V 480W |
2 |
|
规格书 |
- | Box | Active | AC | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 500 V | Industrial, ITE (Commercial) | 88% | -25°C ~ 60°C (With Derating) | Adjustable Output, IP10, IP20 | CE, cCSAus, CSA, EAC, EN, IEC, KC, RCM, UL | 60950-1; 62368-1; UL 508 |
|
XT40.362AC/DC DIN RAIL SUPPLY 36V 960W |
2 |
|
规格书 |
DIMENSION X (960W) | Box | Active | AC | 1 | 360 ~ 552 VAC (3 Phase) | - | - | 36V | - | - | - | - | - | 26A | 960W | 3 kV | ITE (Commercial) | 95.5% | -25°C ~ 70°C (With Derating) | IP20 | EAC, IEC, UL | 508; 60950-1; 61010-2-201 |
|
2467120000PRO TOP3 960W 24V 40A |
2 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 40A | 1152W | 3.5 kV | ITE (Commercial) | 95.3% | -25°C ~ 70°C | Adjustable Output, PFC | cULus, EAC | 60950-1 |
|

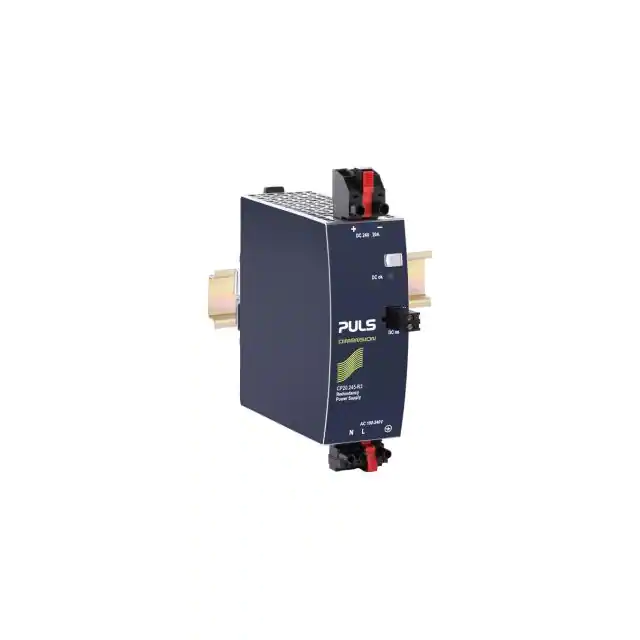

CP20.245-R2AC/DC DIN RAIL SUPPLY 24V 480W |
2 |
|
规格书 |
CP | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 88V | 180V | 24V | - | - | - | - | - | 20A | 480W | 3 kV | Hazardous Locations, ITE (Commercial), Laboratory | 95.2% | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus | ATEX; IECEx; 60950-1; 61010-1; 62368-1 |
|
|
2467180000PRO TOP3 960W 48V 20A CO |
3 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 45 ~ 56V | - | - | - | - | - | 20A | 1120W | 3.5 kV | ITE (Commercial) | 95.3% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|

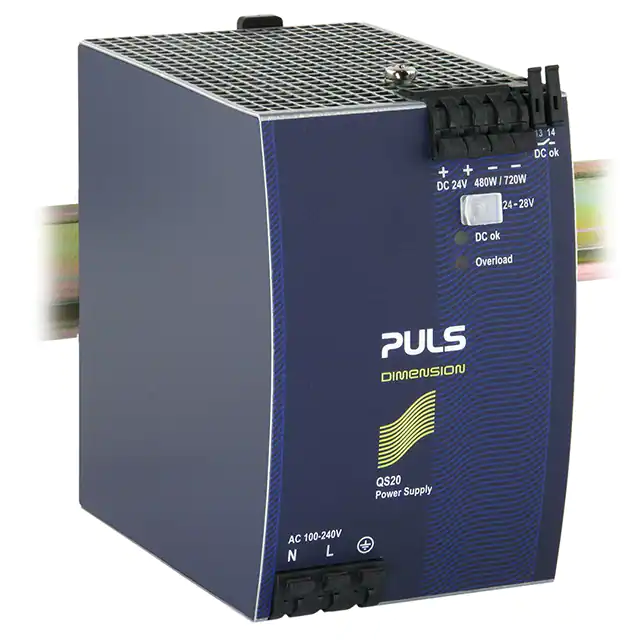

QS20.241-A1AC/DC DIN RAIL SUPPLY 24V 480W |
6 |
|
规格书 |
DIMENSION Q (480W) | Box | Active | AC | 1 | 85 ~ 276 VAC | - | - | 24V | - | - | - | - | - | 20A | 480W | 500 V | Hazardous Locations, ITE (Commercial) | 93.9% | -10°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC | ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, SEMI, UL | Class I Div 2; F47; 508; 60950-1; 61010-2-201 |
|
ABL8WPS24400AC/DC DIN RAIL SUPPLY 24V 960W |
2 |
|
规格书 |
- | Box | Active | AC | 1 | 380 ~ 500 VAC | - | - | 24V | - | - | - | - | - | 40A | 960W | 4 kV | Industrial, ITE (Commercial) | 92% | -25°C ~ 60°C (With Derating) | Adjustable Output, IP20, PFC | CCSAus, CE, CSA, EAC, ENC, IEC, RCM, UL | 60950-1; 62368-1; UL 508 |
|
6EP33368MB002CY0AC/DC DIN RAIL SUPPLY QUAD 24V |
3 |
|
规格书 |
6EP3 | Box | Active | AC or DC | 4 | 85 ~ 275 VAC | 93V | 275V | 24V | 24V | 24V | 24V | - | - | 5A, 5A, 5A, 5A | - | - | Industrial, ITE (Commercial) | 92% | -25°C ~ 60°C | Adjustable Output, IP20 | cCSAus, CE, CSA, cULus, EAC, UL | 60950-1; UL 508 |
|
BP4660-9RGDC/DC DIN RAIL SUPPLY QUAD 24V |
20 |
|
规格书 |
Melcher P (90 ~ 192W) | Bulk | Active | DC | 4 | - | 16V | 36V | 24V | 24V | 24V | 24V | - | - | - | - | - | ITE (Commercial), Railway | 88% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | cCSAus, CE, NEMKO | 60950-1 |
|
|
CP2320-9RGDC/DC DIN RAIL SUPPLY 4X12V |
20 |
|
规格书 |
Melcher P (90 ~ 192W) | Bulk | Active | DC | 4 | - | 33.6V | 75V | 12V | 12V | 12V | 12V | - | - | - | - | - | ITE (Commercial), Railway | 88.5% | -40°C ~ 71°C (With Derating) | Adjustable Output, Remote On/Off, Remote Sense | cCSAus, CE, NEMKO | 60950-1 |
|
LI15-20B12PR2AC/DC DIN RAIL SUPPLY 12V 15W |
31 |
|
规格书 |
LI15-20BxxPR2 (15W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 12V | - | - | - | - | - | 1.25A | 15W | 4 kV | Household Appliances, ITE (Commercial) | 85% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, EN, UKCA | 60335-1; 62368-1 |
|
|
LI15-20B05PR2AC/DC DIN RAIL SUPPLY 5V 12W |
27 |
|
规格书 |
LI15-20BxxPR2 (15W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 5V | - | - | - | - | - | 2.4A | 12W | 4 kV | Household Appliances, ITE (Commercial) | 80% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, EN, UKCA | 60335-1; 62368-1 |
|
|
LI15-20B24PR2AC/DC DIN RAIL SUPPLY 24V 15W |
19 |
|
规格书 |
LI15-20BxxPR2 (15W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 24V | - | - | - | - | - | 630mA | 15W | 4 kV | Household Appliances, ITE (Commercial) | 86% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, EN, UKCA | 60335-1; 62368-1 |
|
|
LI15-20B15PR2AC/DC DIN RAIL SUPPLY 15V 15W |
11 |
|
规格书 |
LI15-20BxxPR2 (15W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 1A | 15W | 4 kV | Household Appliances, ITE (Commercial) | 85.5% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, EN, UKCA | 60335-1; 62368-1 |
|
|
LI15-20B48PR2AC/DC DIN RAIL SUPPLY 48V 15W |
7 |
|
规格书 |
LI15-20BxxPR2 (15W) | Bulk | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 320mA | 15W | 4 kV | Household Appliances, ITE (Commercial) | 87% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, EN, UKCA | 60335-1; 62368-1 |
|
LI30-20B48PR2AC/DC DIN RAIL SUPPLY 48V 36W |
74 |
|
规格书 |
LI30-20BxxPR2 (30W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 750mA | 36W | 4 kV | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | CB, CE, cURus | 62368-1 |
|
|
LI30-20B15PR2AC/DC DIN RAIL SUPPLY 15V 30W |
49 |
|
规格书 |
LI30-20BxxPR2 (30W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 2A | 30W | 4 kV | ITE (Commercial) | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | CB, CE, cURus | 62368-1 |
|
PSK-3D-9-DINAC/DC DIN RAIL SUPPLY 9V 3W |
7 |
|
规格书 |
PSK-3D (3W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 305 VAC | 100V | 430V | 9V | - | - | - | - | - | 333mA | 3W | 4 kV | Household Appliances, ITE (Commercial) | 78% | -40°C ~ 85°C (With Derating) | - | CE, cURus | 60335-1; 62368-1 |
|
PSK-3D-5-DINAC/DC DIN RAIL SUPPLY 5V 3W |
83 |
|
规格书 |
PSK-3D (3W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 305 VAC | 100V | 430V | 5V | - | - | - | - | - | 600mA | 3W | 4 kV | Household Appliances, ITE (Commercial) | 76% | -40°C ~ 85°C (With Derating) | - | CE, cURus | 60335-1; 62368-1 |
|
|
PSK-3D-3-DINAC/DC DIN RAIL SUPPLY 3.3V 3W |
16 |
|
规格书 |
PSK-3D (3W) | Tray | Not For New Designs | AC or DC | 1 | 85 ~ 305 VAC | 100V | 430V | 3.3V | - | - | - | - | - | 900mA | 3W | 4 kV | Household Appliances, ITE (Commercial) | 72% | -40°C ~ 85°C (With Derating) | - | CE, cURus | 60335-1; 62368-1 |
