工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPMD40-2415DGDC/DC DIN RAIL SUPPLY +/-15V 40W |
13 |
|
规格书 |
POWERLINE Power Modules (40W) | Box | Active | DC | 2 | - | 9.5V | 36V | 15V | -15V | - | - | - | - | 1.333A, 1.333A | 40W | - | ITE (Commercial) | - | - | - | CE, LVD | - |
|
1523019PRIMARY-SWITCHED PWR SUPPLY |
2 |
|
规格书 |
TRIO | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC | 100V | 240V | 24V | - | - | - | - | - | 10A | 240W | 3 kV | Laboratory | 95.5% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | CB, cUL, cULus, UL | 61010-1 |
|
|
2568970000PRO TOP1 72W 24V 3A F |
5 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 22.5 ~ 28.8V | - | - | - | - | - | 3A | 86W | 3.5 kV | ITE (Commercial) | 89% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
AC5215AS-I INPUT MODULE, CLASSICLINE 4 |
12 |
|
规格书 |
- | Box | Active | DC | 1 | - | 26.5V | 31.6V | - | - | - | - | - | - | - | - | - | ITE (Commercial) | - | -25°C ~ 70°C | - | CE, cULus, EAC, UKCA | - |
|
|
ATC480W24VPOWER SUPPLY 480 WATT 24 VDC |
10 |
|
规格书 |
ATC | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 127V | 370V | 24V | - | - | - | - | - | 20A | 480W | - | Industrial, ITE (Commercial) | 93.5% | -25°C ~ 70°C (With Derating) | Universal Input | CE, cULus | 62368-1; UL 508 |
|
|
SCP30D12-UDNAC/DC DIN RAIL SUPPLY +/-12V 29W |
6 |
|
规格书 |
SCP | Bulk | Active | AC or DC | 2 | 85 ~ 264 VAC | 100V | 375V | 12V | -12V | - | - | - | - | 1.2A, 1.2A | 29W | - | ITE (Commercial) | 68% | -25°C ~ 65°C | IP20, Universal Input | CE, cURus | 60950-1 |
|
|
9000-41190-0000105MICO PRO PS 5-100-240/24 |
2 |
|
规格书 |
- | Box | Active | AC | 1 | 90 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 90.8% | -25°C ~ 55°C | Adjustable Output, IP20, Universal Input | CE, cULus, cURus, EAC, UKCA | - |
|
TSP 180-148 EXAC/DC DIN RAIL SUPPLY 48V 192W |
10 |
|
规格书 |
TSP-EX (180-192W) | Box | Active | AC | 1 | 85 ~ 132 VAC, 187 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 4A | 192W | - | Hazardous Locations, Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Remote On/Off, Universal Input | CB, CE, cURus, SIQ | - |
|

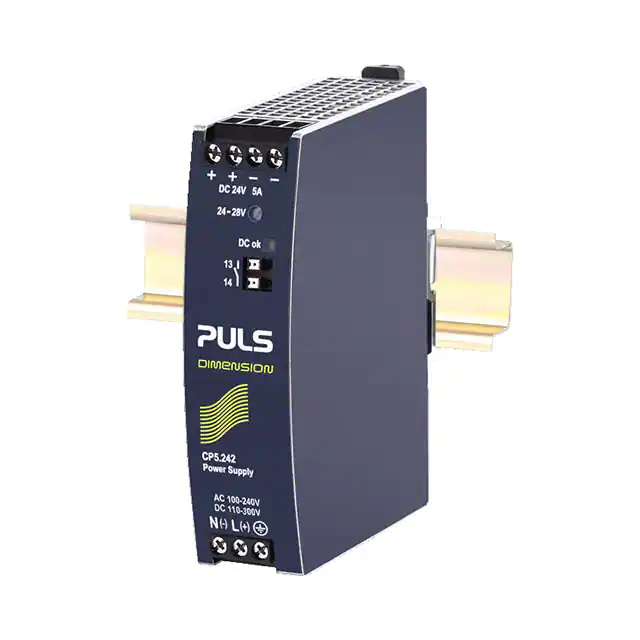

CP5.242AC/DC DIN RAIL SUPPLY 24V 120W |
13 |
|
规格书 |
DIMENSION CP (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 300V | 24V | - | - | - | - | - | 5A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | EAC, IEC, UL | 61010-2-201; 62368-1 |
|
|
DRB480-48-3-A1AC/DC CONVERTER 48V 480W |
23 |
|
规格书 |
DRB480-3 (480W) | Bulk | Active | AC | 1 | 350 ~ 575 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 10A | 480W | - | ITE (Commercial), Laboratory | 95.3% | -25°C ~ 55°C | Adjustable Output, PFC, Remote On/Off, Remote Sense | - | 60950-1; 61010-1; 62368-1 |
|
|
DRB480-48-3-A0AC/DC CONVERTER 48V 480W |
19 |
|
规格书 |
DRB480-3 (480W) | Bulk | Active | AC | 1 | 350 ~ 575 VAC (3 Phase) | - | - | 48V | - | - | - | - | - | 10A | 480W | - | ITE (Commercial), Laboratory | 95.3% | -25°C ~ 55°C | Adjustable Output, PFC, Remote On/Off, Remote Sense | - | 60950-1; 61010-1; 62368-1 |
|
|
85440EMPARRO POWER SUPPLY 1-PHASE, IN |
7 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 265 VAC | 90V | 250V | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 94.5% | -40°C ~ 60°C (With Derating) | Adjustable Output, IP20, Universal Input | CE, cULus, cURus, EAC, UKCA | - |
|
|
2568980000PRO TOP1 120W 24V 5A F |
3 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 48V | 410V | 22.5 ~ 28.8V | - | - | - | - | - | 5A | 144W | 3.5 kV | ITE (Commercial) | 91% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
1672244DIN RAIL POWER SUPPLY |
10 |
|
规格书 |
Quint4 | Box | Active | AC or DC | 1 | 100 ~ 240 VAC | 110V | 250V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | Industrial, Laboratory | 93.8% | -40°C ~ 75°C (With Derating) | IP20, Universal Input | cCSAus, CSA, cULus, UL | 61010-1; UL 508 |
|
|
DRM-24V480W3PNDIN-RAIL CLIQ-M 480W/24V 3 PH |
14 |
|
规格书 |
CliQ (480W) | Box | Active | AC | 1 | 320 ~ 575 VAC (3 Phase), 380 ~ 575 VAC (2 Phase) | - | - | 24V | - | - | - | - | - | 20A | 480W | 4.9 kV | Industrial, ITE (Commercial), Laboratory | 95.2% | -25°C ~ 70°C | Adjustable Output, PFC | CB, CE, cULus, cURus, EAC, SIQ, UKCA | 60950-1; 61010-1; 62368-1; UL 508 |
|
|
SCP30S12BUDNAC/DC DIN RAIL SUPPLY 12V 30W |
3 |
|
规格书 |
SCP | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 100V | 375V | 12V | - | - | - | - | - | 2.5A | 30W | - | ITE (Commercial) | 75% | -25°C ~ 65°C | IP20, Universal Input | CE, cURus | 60950-1 |
|

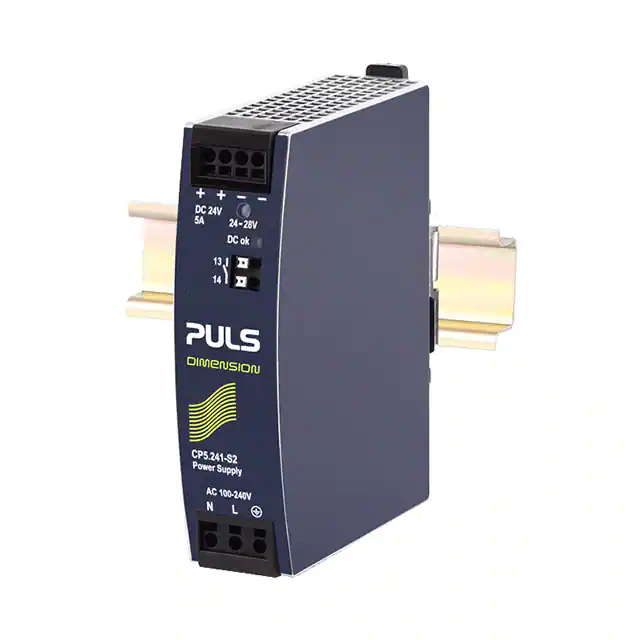

CP5.241-S2AC/DC DIN RAIL SUPPLY 24V 120W |
12 |
|
规格书 |
DIMENSION CP (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 150V | 24V | - | - | - | - | - | 5A | 120W | 500 V | Industrial, ITE (Commercial), Laboratory | 93.6% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing, PFC, Universal Input | ATEX, EAC, IEC, IECEx, UL | Class I Div 2; 61010-2-201; 62368-1 |
|
787-1616AC/DC DIN RAIL SUPPLY 24V 96W |
3 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 300V | 24V | - | - | - | - | - | 4A | 96W | 4.242 kV | Household Appliances, Industrial, ITE (Commercial), Laboratory | 89% | -25°C ~ 70°C | Adjustable Output, IP20, PFC, Universal Input | cURus, EAC, UL | 60335-1; 60950-1; 61010-1; UL 508 |
|
DN4012AC/DC DIN RAIL SUPPLY 24V 120W |
2 |
|
规格书 |
- | Box | Active | AC | 1 | 100 ~ 240 VAC | - | - | 24V | - | - | - | - | - | 5A | 120W | - | ITE (Commercial) | 90.2% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20 | CE, cULus, cURus | - |
|
|
2568990000PRO TOP1 240W 24V 10A F |
4 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 22.5 ~ 28.8V | - | - | - | - | - | 10A | 288W | 3.5 kV | ITE (Commercial) | 92% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
